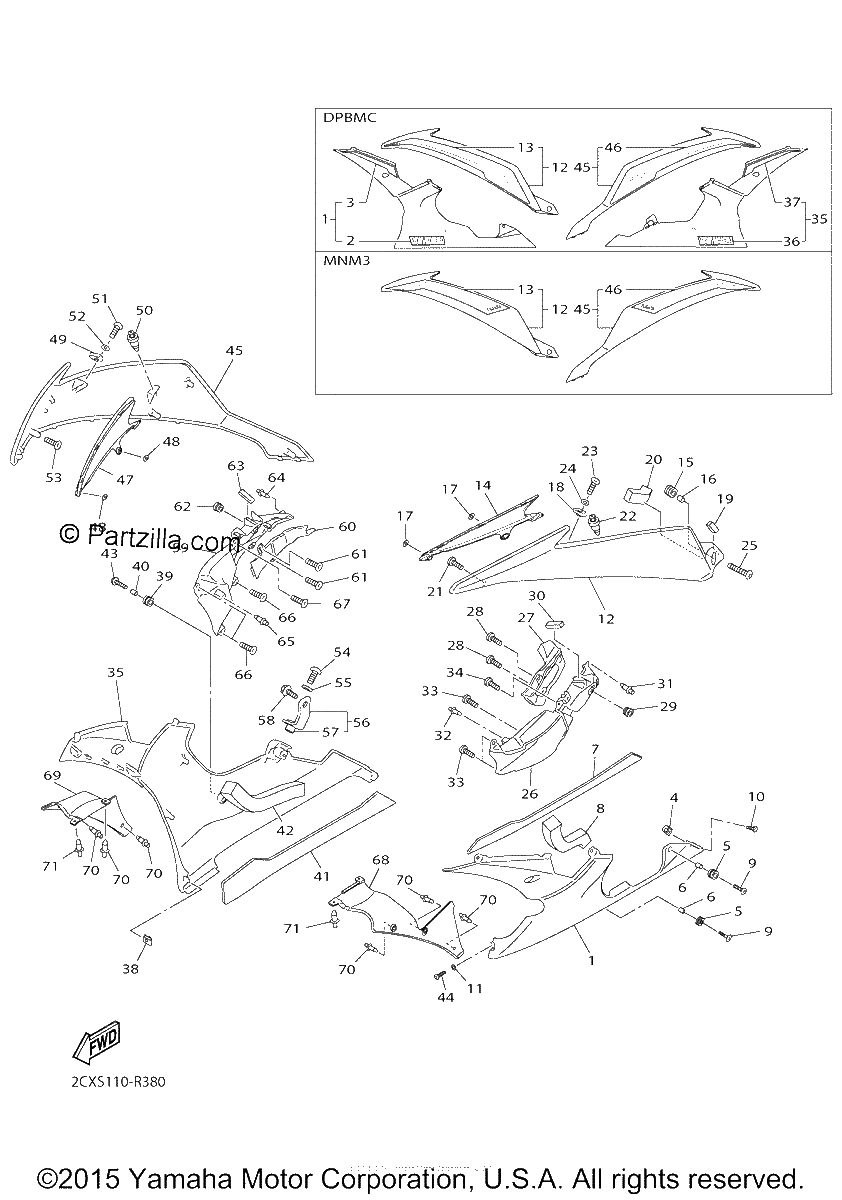

COWLING 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
PANEL ASSY 1 | UR FOR MNM3
$408.79¢204 394
#0
COVER, UNDER | UR FOR MNM3
$372.52¢186 263
#0
GRAPHIC 2 | UR FOR MNM3
$72.58¢36 288
#0
GRAPHIC 1 | UR FOR MNM3
$72.58¢36 288
#0
PANEL ASSY 2 | UR FOR MNM3
$426.65¢213 325
#0
COVER, UNDER 2 | UR FOR MNM3
$326.36¢163 181
#1
UNDER COVER COMP. 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$488.38¢244 188
#2
EMBLEM, YAMAHA | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$15.58¢7 788
#3
GRAPHIC, UNDER COVER 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$48.31¢24 156
#4
NUT, SPRING
$2.82¢1 412
#5
GROMMET
$7.43¢3 713
#6
COLLAR
$7.43¢3 713
#7
SEAT 1
$53.24¢26 619
#8
DAMPER, PLATE
$6.55¢3 275
#9
bolt
$4.00¢2 000
#10
BOLT, HEXAGON SOCKET HEAD
$2.55¢1 275
#11
WASHER, PLATE
$7.66¢3 831
#12
PANEL ASSY 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$426.65¢213 325
#13
GRAPHIC 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$158.57¢79 288
#14
COVER 1
$13.13¢6 563
#15
GROMMET
$7.43¢3 713
#16
COLLAR
$7.43¢3 713
#17
NUT, SPRING
$0.50¢250
#18
NUT, SPRING
$2.82¢1 412
#19
DAMPER 1
$7.86¢3 931
#20
DAMPER, PLATE
$2.20¢1 100
#21
SCREW, TRUSS HEAD TAPPING
$1.71¢856
#22
RIVET
$4.00¢2 000
#23
BOLT, HEXAGON SOCKET HEAD
$2.55¢1 275
#24
WASHER, PLATE
$7.66¢3 831
#25
bolt
$4.00¢2 000
#26
GUIDE, AIR 1
$41.60¢20 800
#27
GUIDE, AIR 3
$15.59¢7 794
#28
TAPPING SCREW
$2.36¢1 181
#29
Grommet
$4.69¢2 344
#30
DAMPER 1
$7.08¢3 538
#31
RIVET
$8.80¢4 400
#32
RIVET
$6.78¢3 388
#33
SCREW, TRUSS HEAD TAPPING
$1.71¢856
#34
SCREW, TAPPING (replaces 97702-50020-00)
$6.26¢3 131
#35
UNDER COVER COMP. 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$488.38¢244 188
#36
EMBLEM, YAMAHA | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$15.58¢7 788
#37
GRAPHIC, UNDER COVER 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$49.63¢24 813
#38
NUT, SPRING
$2.82¢1 412
#39
GROMMET
$7.43¢3 713
#39
SCREW, TRUSS HEAD TAPPING
$1.71¢856
#40
COLLAR
$7.43¢3 713
#41
SEAT 2
$45.80¢22 900
#42
DAMPER 10
$16.15¢8 075
#43
bolt
$4.00¢2 000
#44
BOLT, HEXAGON SOCKET HEAD
$2.55¢1 275
#45
PANEL ASSY 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$426.65¢213 325
#46
GRAPHIC 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$158.57¢79 288
#47
COVER 2
$13.27¢6 637
#48
NUT, SPRING
$0.50¢250
#49
NUT, SPRING
$2.82¢1 412
#50
RIVET
$4.00¢2 000
#51
BOLT, HEXAGON SOCKET HEAD
$2.55¢1 275
#52
WASHER, PLATE
$7.66¢3 831
#54
bolt
$5.94¢2 969
#55
WASHER,PLATE
$7.00¢3 500
#56
BRACKET 4
$23.21¢11 606
#57
Nut
$5.21¢2 606
#58
BOLT, FLANGE (replaces 95802-06014-00)
$2.65¢1 325
#59
GUIDE, AIR 2
$47.27¢23 638
#60
GUIDE, AIR 4
$13.70¢6 850
#61
TAPPING SCREW
$2.36¢1 181
#62
Grommet
$4.69¢2 344
#63
DAMPER 1
$7.08¢3 538
#64
RIVET
$8.80¢4 400
#65
RIVET
$6.78¢3 388
#66
SCREW, TRUSS HEAD TAPPING
$1.71¢856
#67
SCREW, TAPPING (replaces 97702-50020-00)
$6.26¢3 131
#68
PANEL, INNER 2
$47.27¢23 638
#69
PANEL, INNER 3
$47.27¢23 638
#70
RIVET
$8.80¢4 400
#71
RIVET
$7.34¢3 669
