HEADLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

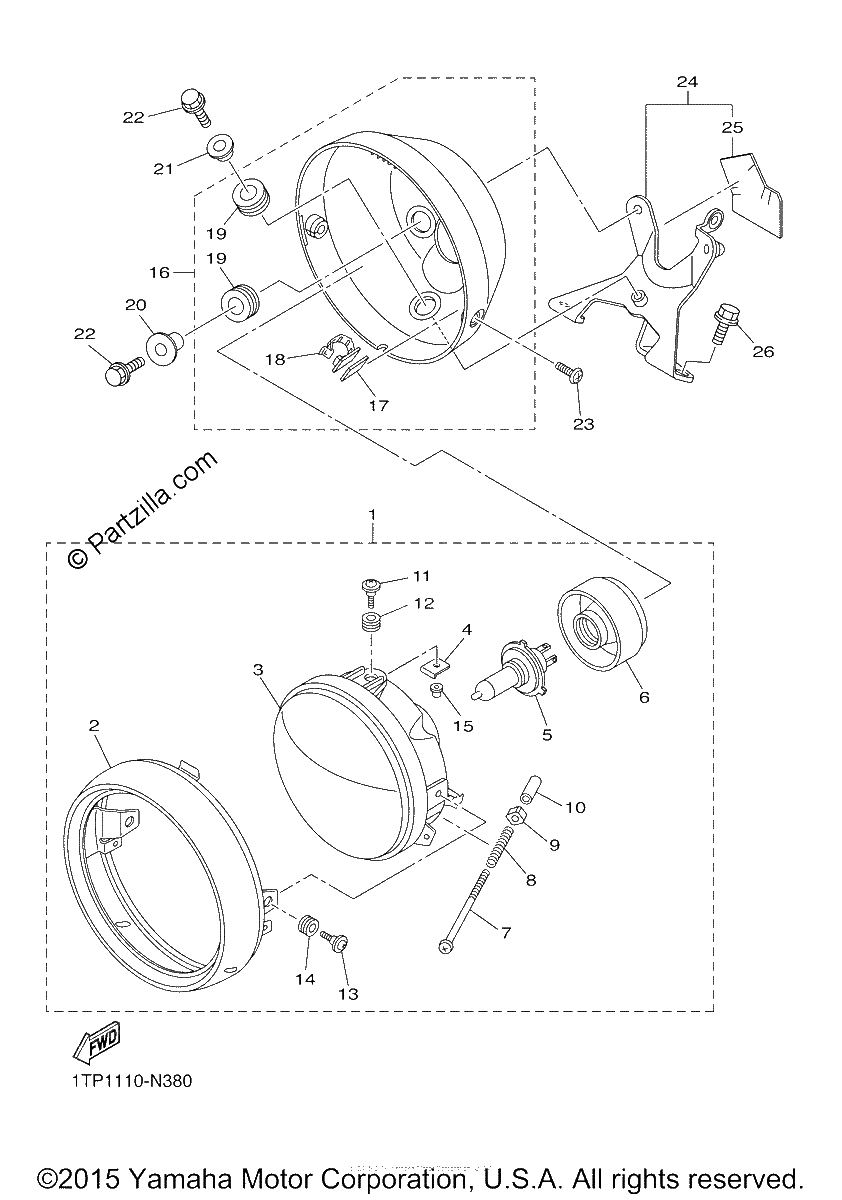

Diagrama de HEADLIGHT

Repuestos

#1
5S7-84310-00-00
HEADLIGHT UNIT ASSY
$440.25¢220 127
1
#2
5S7-84315-00-00
RIM, HEADLIGHT
$90.48¢45 241
1
#3
5PX-84320-00-00
LENS ASSY
$208.62¢104 311
1
#4
5PX-84318-00-00
STAY, HEADLIGHT 1
$69.74¢34 868
1
#5
5V2-84314-00-XX
BULB (12V 60/55W HALOGEN) | (H4) HALOGEN
$82.94¢41 469
1
#6
5PX-84397-00-00
COVER, SOCKET
$38.56¢19 280
1
#7
5PX-84331-00-00
SCREW, RIM ADJUSTING
$7.23¢3 617
1
#8
5PX-84332-00-00
SPRING, SCREW
$7.23¢3 617
1
#9
5PX-84334-00-00
NUT, ADJUSTING
$7.23¢3 617
1
#10
5PX-84385-00-00
CAP,1
$7.23¢3 617
1
#11
5PX-84325-00-00
SCREW, RIM FITTING
$7.28¢3 640
1
#12
5PX-84354-00-00
GROMMET
$5.55¢2 777
1
#13
5PX-84125-00-00
SCREW, RIM FITTING
$7.04¢3 519
1
#14
5PX-84352-00-00
GROMMET
$6.51¢3 254
1
#15
5PX-84317-00-00
NUT
$7.58¢3 789
1
#16
1TP-84330-00-00
BODY ASSY
$63.50¢31 751
1
#17
1TP-28428-00-00
SEAL 1
$3.10¢1 553
1
#18
90464-09009-00
CLAMP
$6.90¢3 450
1
#19
4WM-84366-00-00
DAMPER, HEADLIGHT 1
$10.90¢5 451
1
#20
90387-067K8-00
COLLAR
$5.69¢2 846
1
#21
90387-06040-00
COLLAR
$10.04¢5 020
1
#22
95022-06020-00
BOLT, FLANGE
$3.65¢1 823
1
#23
98907-05014-00
SCREW, BIND
$7.15¢3 577
1
#24
1TP-8411A-00-00
HEAD LIGHT STAY ASSY.
$54.73¢27 364
1
#25
1TP-84136-00-00
DAMPER, HEADLIGHT STAY
$9.61¢4 807
1
#26
95027-08035-00
BOLT, SMALL FLANGE (replaces 9502M-08035-00)
$6.75¢3 375
1
