ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

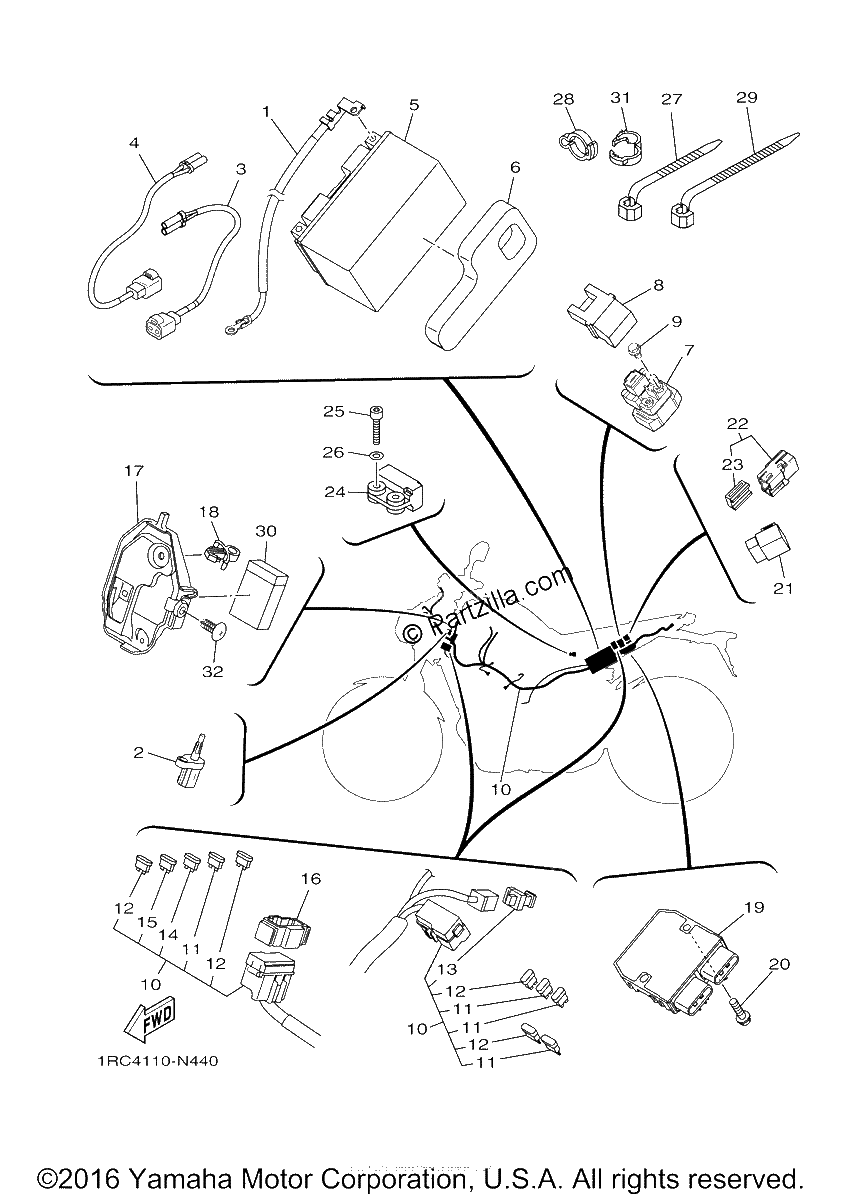

Diagrama de ELECTRICAL 1

Repuestos

#1
1RC-82116-00-00
WIRE, MINUS LEAD
$49.70¢24 850
1
#2
5YU-85886-00-00
SENSOR, AIR TEMPERATURE
$35.84¢17 919
1
#3
1RC-82309-00-00
WIRE, SUB LEAD
$20.78¢10 388
1
#4
1RC-82509-00-00
WIRE, SUB LEAD
$18.09¢9 044
1
#5
YTZ-10S00-00-00
YTZ10S YUASA BATTER
$235.21¢117 606
1
#6
1RC-8246K-00-00
SPACER
$11.59¢5 794
1
#7
1RC-81940-00-00
STARTER RELAY ASSY
$60.51¢30 256
1
#8
5SL-82119-30-00
COVER, LEAD WIRE
$5.06¢2 531
1
#9
95022-06008-00
BOLT, FLANGE
$7.46¢3 731
1
#10
1RC-82590-11-00
WIRE HARNESS ASSY
$1138.74¢569 369
1
#11
5JJ-82151-00-00
FUSE (7.5A-BL)
$7.08¢3 538
1
#12
67F-82151-50-00
FUSE (15A)
$4.44¢2 219
1
#13
5JW-82151-10-00
FUSE (50A)
$17.01¢8 506
1
#14
5JJ-82151-80-00
FUSE (2A-BL)
$8.43¢4 213
1
#15
67F-82151-40-00
FUSE (10A)
$7.75¢3 875
1
#16
1RC-82544-00-00
CLAMP
$7.64¢3 819
1
#17
1RC-82599-00-00
COVER, CONNECTER
$7.33¢3 663
1
#18
90464-15157-00
CLAMP
$7.34¢3 669
1
#19
1D7-81960-01-00
RECTIFIER REGULATOR ASSY
$335.25¢167 625
1
#20
95022-06025-00
BOLT, FLANGE
$1.75¢875
1
#21
5VK-81950-40-00
RELAY ASSY (5VK-40)
$70.70¢35 350
1
#22
1ST-81950-00-00
RELAY ASSY (1ST-00)
$17.80¢8 900
1
#23
5JJ-81952-00-00
HOLDER, RELAY
$9.46¢4 731
1
#24
5PS-82576-01-00
SENSOR, LEAN ANGLE
$95.25¢47 625
1
#25
91312-04020-00
BOLT
$1.75¢875
1
#26
90201-04030-00
WASHER, PLATE
$1.80¢900
1
#27
90464-15195-00
CLAMP
$3.30¢1 650
1
#28
90464-14010-00
CLAMP
$3.83¢1 913
1
#29
3MA-82591-00-00
BAND
$7.55¢3 775
1
#30
1RC-82589-00-00
PROTECTER, WIRE HARNESS
$24.01¢12 006
1
#31
90464-16001-00
CLAMP
$2.04¢1 019
1
#32
90269-07015-00
RIVET
$1.23¢613
1
