CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

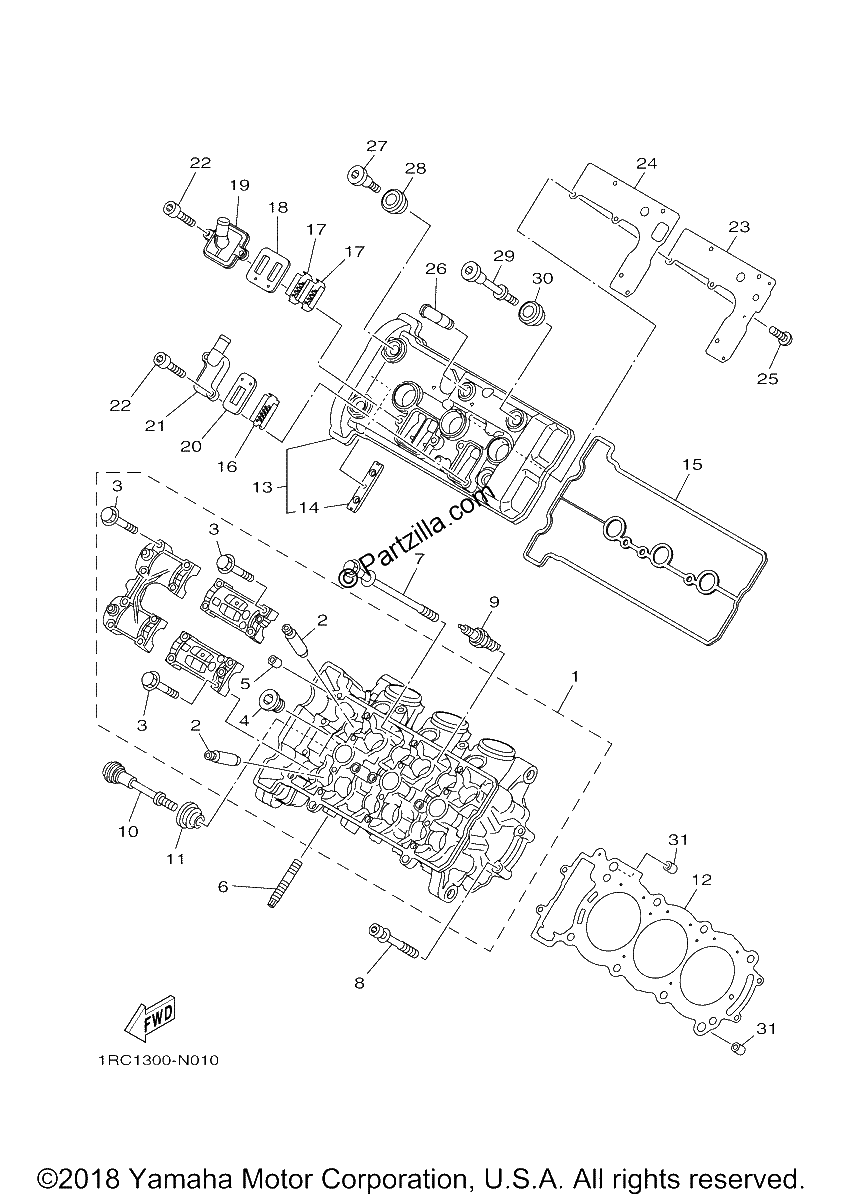

Diagrama de CYLINDER HEAD

Repuestos

#1
1RC-11101-09-00
CYLINDER HEAD ASSY
$1379.99¢689 994
1
#2
2C0-11133-11-00
GUIDE, VALVE 1
$63.24¢31 619
1
#3
90105-06027-00
BOLT, FLANGE
$7.06¢3 530
1
#4
90340-18002-00
PLUG, STRAIGHT SCREW
$10.29¢5 146
1
#5
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#6
90116-08087-00
BOLT, STUD
$8.26¢4 129
1
#7
90119-09017-00
BOLT, WITH WASHER (replaces 90119-09015-00)
$18.75¢9 373
1
#8
90109-061F7-00
BOLT
$3.21¢1 604
1
#9
CPR-9EA90-00-00
CPR9E-9 NGK SPLUG 10
$10.06¢5 031
1
#10
90109-06293-00
BOLT
$14.03¢7 015
1
#11
5VY-1111G-00-00
RUBBER, MOUNT 1
$11.73¢5 865
1
#12
1RC-11181-00-00
GASKET, CYLINDER HEAD 1
$68.72¢34 362
1
#13
1RC-11191-00-00
COVER, CYLINDER HEAD 1
$259.08¢129 542
1
#14
5BE-12241-00-00
GUIDE, STOPPER 2
$28.00¢14 001
1
#15
1RC-11193-01-00
GASKET, HEAD COVER 1
$29.75¢14 875
1
#16
5JW-1482K-01-00
PLATE
$4.23¢2 116
1
#17
5VY-1482K-00-00
PLATE
$4.28¢2 139
1
#18
5SL-14890-00-00
REED VALVE ASSY
$94.82¢47 409
1
#19
5SL-14899-00-00
CAP, CASE
$30.53¢15 266
1
#20
5PS-14890-00-00
REED VALVE ASSY
$33.80¢16 899
1
#21
5JW-14889-00-00
CAP, CASE
$71.33¢35 667
1
#22
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
1
#23
B90-11165-00-00
PLATE, BREATHER (replaces 1RC-11165-00-00)
$25.14¢12 569
1
#24
1RC-11169-00-00
GASKET, BREATHER COVER
$6.13¢3 065
1
#25
90149-05038-00
SCREW (replaces 90149-05037-00)
$1.64¢822
1
#26
4TR-11167-00-00
PIPE, BREATHER 2
$16.16¢8 079
1
#27
90109-066F0-00
BOLT
$6.99¢3 496
1
#28
5VY-1111G-00-00
RUBBER, MOUNT 1
$11.73¢5 865
1
#29
90109-06271-00
BOLT
$12.78¢6 388
1
#30
5VY-1111G-00-00
RUBBER, MOUNT 1
$11.73¢5 865
1
#31
99530-12016-00
PIN, DOWEL
$4.52¢2 260
1
