CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

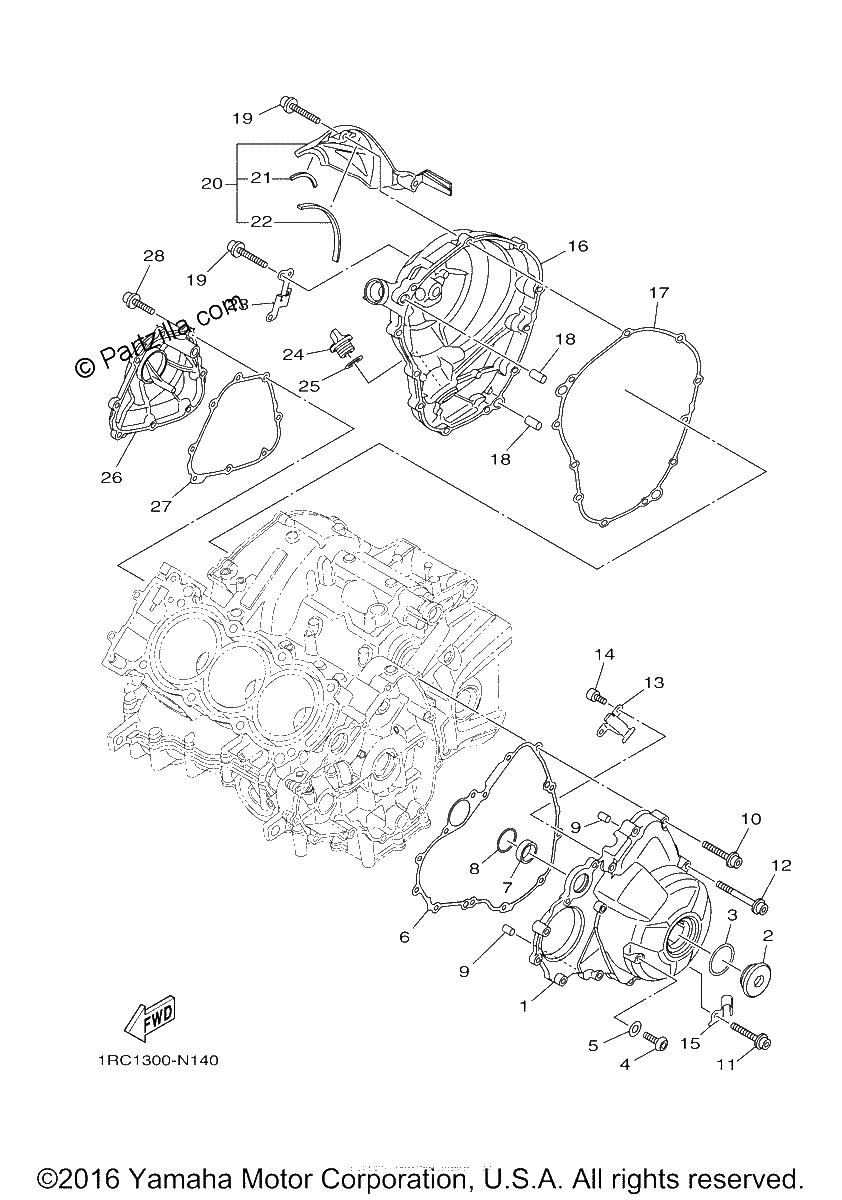

Diagrama de CRANKCASE COVER 1

Repuestos

#1
1RC-15411-00-00
COVER, CRANKCASE 1
$138.70¢69 350
1
#2
90340-36005-00
PLUG, STRAIGHT SCREW
$30.80¢15 400
1
#3
93210-357A3-00
O-RING
$0.59¢294
1
#4
92017-08012-00
BOLT, BUTTON HEAD
$7.35¢3 675
1
#5
90430-08143-00
GASKET
$3.67¢1 838
1
#6
1RC-15451-00-00
GASKET, CRANKCASE COVER 1
$19.55¢9 775
1
#7
1RC-12564-00-00
PIPE, WATER
$7.08¢3 538
1
#8
93210-28543-00
O-RING
$3.38¢1 688
1
#9
99530-08012-00
PIN, DOWEL
$6.25¢3 125
1
#10
90110-06388-00
BOLT, HEXAGON SOCKET HEAD
$5.84¢2 919
1
#11
90110-06388-00
BOLT, HEXAGON SOCKET HEAD
$5.84¢2 919
1
#12
90110-06394-00
BOLT, HEXAGON SOCKET HEAD
$2.11¢1 056
1
#13
1RC-15484-00-00
CLAMP 2
$5.51¢2 756
1
#14
91312-06014-00
bolt
$5.65¢2 825
1
#15
1RC-15199-00-00
BRACKET
$5.15¢2 575
1
#16
1RC-15421-00-00
COVER, CRANKCASE 2
$121.99¢60 994
1
#17
1RC-15461-00-00
GASKET, CRANKCASE COVER 2
$28.42¢14 212
1
#18
93610-20189-00
PIN, DOWEL
$4.13¢2 063
1
#19
90110-06388-00
BOLT, HEXAGON SOCKET HEAD
$5.84¢2 919
1
#20
1RC-15490-00-00
COVER ASSY
$43.03¢21 513
1
#21
1RC-15789-00-00
DAMPER
$3.49¢1 744
1
#22
90520-03014-00
DAMPER, PLATE
$4.96¢2 481
1
#23
1RC-15191-00-00
PLATE
$5.51¢2 756
1
#24
5GJ-15363-10-00
PLUG, OIL
$21.74¢10 869
1
#25
93210-19123-00
O-Ring
$8.24¢4 119
1
#26
1RC-15416-00-00
COVER, OIL PUMP
$84.16¢42 081
1
#27
1RC-15456-00-00
GASKET, OIL PUMP COVER 1
$12.06¢6 031
1
#28
90110-06396-00
BOLT, HEXAGON SOCKET HEAD
$2.97¢1 487
1
