STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

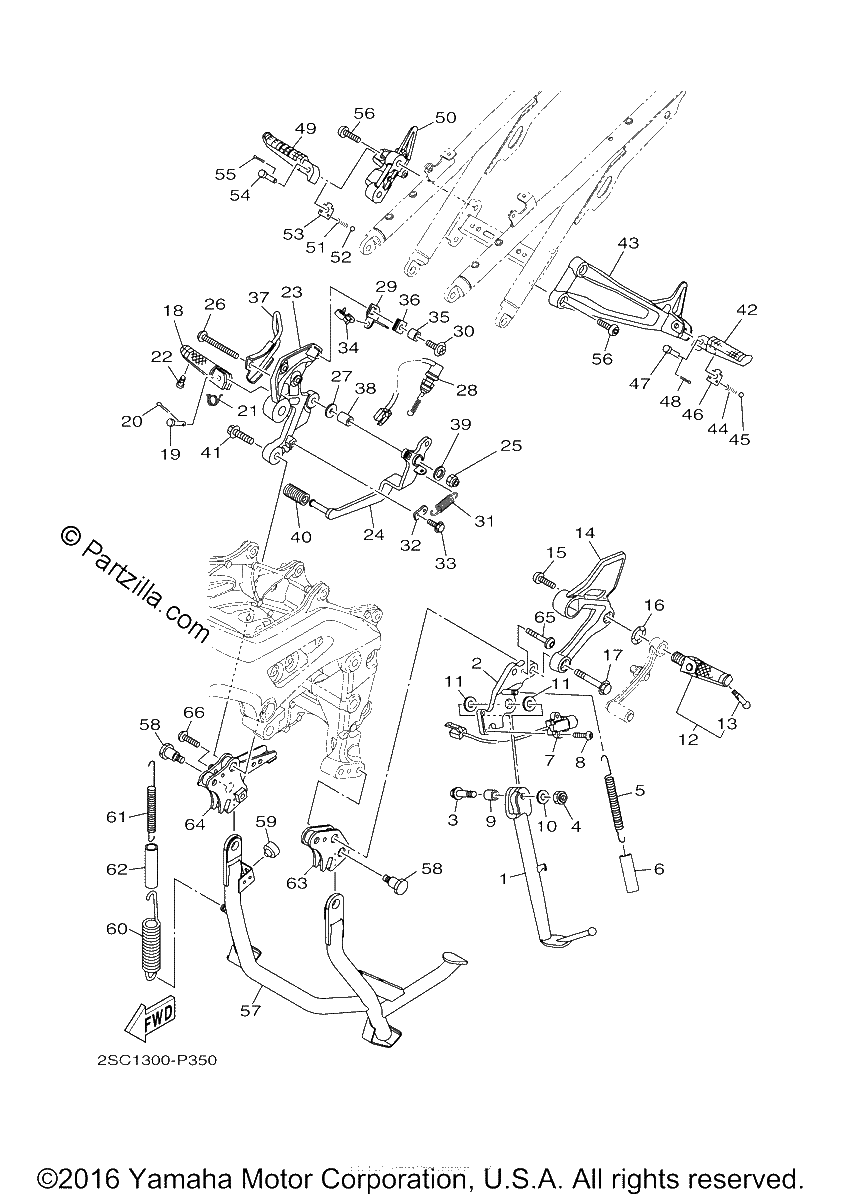

Diagrama de STAND FOOTREST

Repuestos

#1
1RC-27311-00-00
STAND, SIDE
$93.09¢46 546
1
#2
1RC-27321-00-00
BRACKET, SIDE STAND
$85.81¢42 907
1
#3
90105-10188-00
BOLT, FLANGE
$11.11¢5 555
1
#4
95617-10100-00
NUT, U
$6.76¢3 381
1
#5
90506-20032-00
SPRING, TENSION
$14.03¢7 015
1
#6
90445-197J2-00
HOSE (L60)
$4.30¢2 151
1
#7
1RC-82566-50-00
SWITCH, SIDE STAND
$70.17¢35 087
1
#8
92014-05020-00
BOLT, BUTTON HEAD
$6.75¢3 375
1
#9
90387-10050-00
COLLAR
$22.08¢11 040
1
#10
90201-10035-00
WASHER, plate
$3.91¢1 955
1
#11
90201-17018-00
WASHER, PLATE
$1.61¢805
1
#12
2PP-27410-00-00
FRONT FOOTREST ASSY (LEFT)
$73.09¢36 547
1
#13
90109-08233-00
BOLT
$5.82¢2 909
1
#14
1RC-27442-00-00
BRACKET 2
$139.21¢69 604
1
#15
90111-10040-00
BOLT,HEX. SOCKET BUT
$3.27¢1 633
1
#16
90206-17084-00
WASHER, WAVE
$10.29¢5 146
1
#17
90105-10435-00
BOLT, FLANGE
$12.78¢6 388
1
#18
3XV-27461-02-00
FOOTREST
$23.85¢11 925
1
#19
91701-08040-00
PIN
$4.45¢2 225
1
#20
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#21
90508-20572-00
SPRING, TORSION
$7.30¢3 651
1
#22
90109-08233-00
BOLT
$5.82¢2 909
1
#23
1RC-27443-00-00
BRACKET 3
$154.00¢76 998
1
#24
2PP-27211-00-00
PEDAL, BRAKE
$95.79¢47 897
1
#25
90185-08089-00
NUT, SELF-LOCKING
$8.00¢4 002
1
#26
90111-08028-00
BOLT, HEX. SOCKET BUTTON
$5.47¢2 737
1
#27
90201-08103-00
WASHER, PLATE
$6.21¢3 105
1
#28
1RC-82530-00-00
STOP SWITCH ASSY
$52.39¢26 197
1
#29
1RC-2144G-00-00
STAY, STOP SWITCH
$5.37¢2 685
1
#30
90159-06082-00
SCREW, WITH WASHER
$7.08¢3 542
1
#31
90506-23008-00
SPRING, TENSION
$6.46¢3 231
1
#32
1RC-27432-00-00
BRACKET 1
$2.21¢1 104
1
#33
95817-06010-00
BOLT,FLANGE (replaces 95827-06010-00)
$4.28¢2 139
1
#34
90464-15157-00
CLAMP
$6.75¢3 375
1
#35
90387-06M16-00
COLLAR
$3.83¢1 915
1
#36
90480-12607-00
GROMMET
$9.36¢4 681
1
#37
1RC-27267-00-00
GUIDE, WIRE
$37.57¢18 785
1
#38
90387-08102-00
COLLAR
$8.03¢4 013
1
#39
90201-08048-00
WASHER, PLATE
$6.30¢3 151
1
#39
5VX-27437-00-00
WASHER, SPECIAL
$7.35¢3 674
1
#40
5EB-18113-00-00
COVER, SHIFT PEDAL
$7.82¢3 910
1
#41
90105-10252-00
BOLT, FLANGE
$4.94¢2 472
1
#42
3VR-27431-02-00
FOOTREST, REAR 1
$27.22¢13 610
1
#43
2PP-2741L-00-00
BRACKET 4
$119.19¢59 593
1
#44
90501-12743-00
SPRING, COMPRESSION
$3.51¢1 754
1
#45
93501-04011-00
BALL
$6.87¢3 433
1
#46
5VX-27437-00-00
WASHER, SPECIAL
$7.35¢3 674
1
#47
91702-08040-00
PIN, CLEVIS
$4.45¢2 225
1
#48
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#49
3VR-27441-02-00
FOOTREST, REAR 2
$27.29¢13 645
1
#50
2PP-2742L-00-00
BRACKET 5
$177.94¢88 970
1
#51
90501-12743-00
SPRING, COMPRESSION
$3.51¢1 754
1
#52
93501-04011-00
BALL
$6.87¢3 433
1
#54
91702-08040-00
PIN, CLEVIS
$4.45¢2 225
1
#55
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#56
90111-08083-00
BOLT, HEX. SOCKET BUTTON
$2.20¢1 098
1
#57
2PP-27111-00-00
STAND, MAIN
$234.50¢117 248
1
#58
90109-10060-00
BOLT
$9.12¢4 560
1
#59
36C-27114-00-00
STOPPER, MAIN STAND
$11.48¢5 739
1
#60
2PP-27116-00-00
SPRING, MAIN STAND
$17.08¢8 539
1
#61
2PP-27116-10-00
SPRING, MAIN STAND
$9.58¢4 790
1
#62
90445-19003-00
HOSE
$5.96¢2 978
1
#63
2PP-27151-00-00
BRACKET, MAIN STAND
$30.98¢15 490
1
#64
2PP-27152-00-00
BRACKET, MAIN STAND 2
$74.12¢37 059
1
#65
92012-06040-00
BOLT, BUTTON HEAD
$3.65¢1 823
1
#66
92012-06030-00
BOLT, BUTTON HEAD
$3.09¢1 547
1
