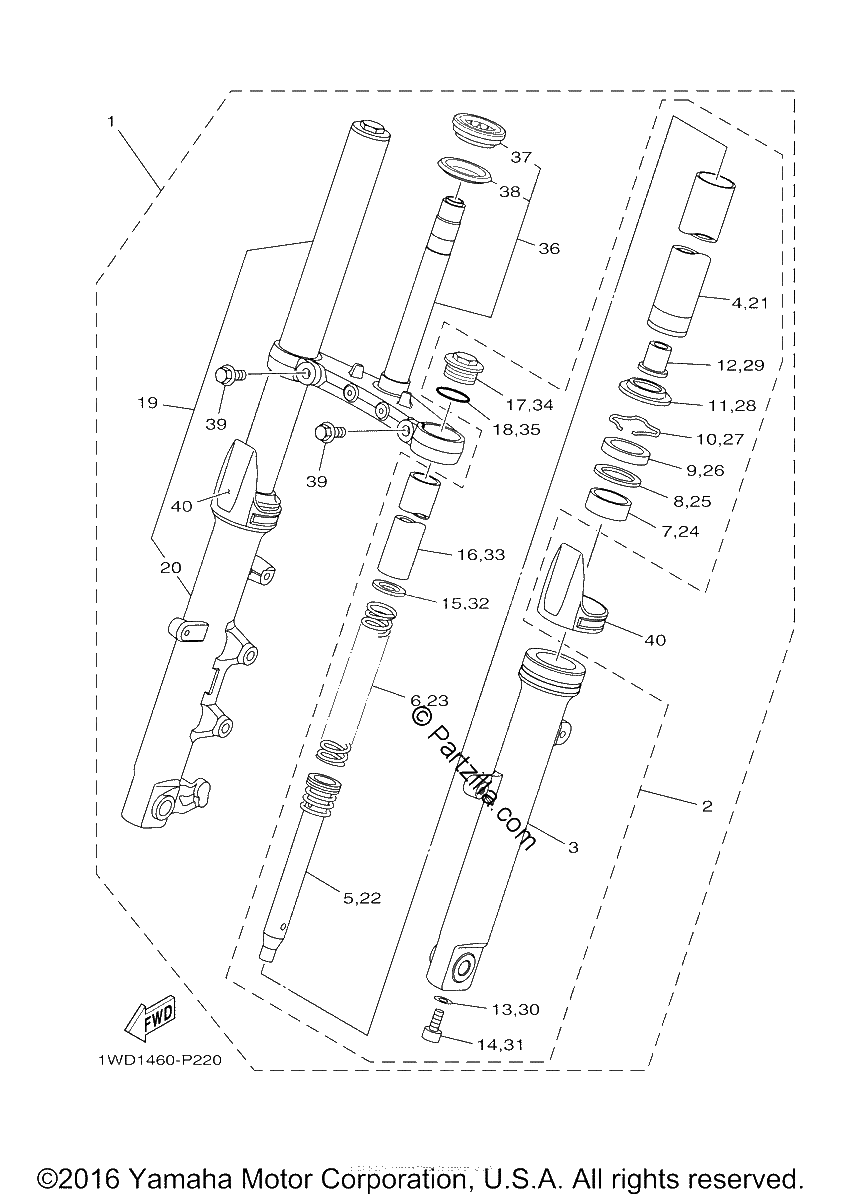

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY
$491.78¢245 888
#2
FRONT FORK ASSY (L.H)
$298.52¢149 263
#3
TUBE, OUTER (L.H)
$108.35¢54 175
#4
INNER TUBE COMP. 1
$121.99¢60 994
#5
CYLINDER COMP., FRONT FOR
No Disponible
#6
SPRING, FRONT FORK
$15.96¢7 981
#7
METAL, SLIDE 1
$41.70¢20 850
#8
WASHER, OIL SEAL
$1.46¢731
#9
OIL SEAL
$4.68¢2 338
#10
RING, SNAP
$0.65¢325
#11
SEAL, DUST
$8.03¢4 013
#12
SPINDLE, TAPER
$9.09¢4 544
#13
GASKET | (KYB)
$17.09¢8 544
#14
BOLT, HEXAGON SOCKET HEAD
$9.10¢4 550
#15
WASHER, SPRING UPPER
$0.44¢219
#16
SPACER
No Disponible
#17
BOLT, CAP
No Disponible
#18
O-RING
$1.29¢644
#19
FRONT FORK ASSY (R.H)
$301.90¢150 950
#20
TUBE, OUTER 2
$111.91¢55 956
#21
INNER TUBE COMP. 1
$121.99¢60 994
#22
CYLINDER COMP., FRONT FOR
No Disponible
#23
SPRING, FRONT FORK
$15.96¢7 981
#24
METAL, SLIDE 1
$41.70¢20 850
#25
WASHER, OIL SEAL
$1.46¢731
#26
OIL SEAL
$4.68¢2 338
#27
RING, SNAP
$0.65¢325
#28
SEAL, DUST
$8.03¢4 013
#29
SPINDLE, TAPER
$9.09¢4 544
#30
GASKET | (KYB)
$17.09¢8 544
#31
BOLT, HEXAGON SOCKET HEAD
$9.10¢4 550
#32
WASHER, SPRING UPPER
$0.44¢219
#33
SPACER
No Disponible
#34
BOLT, CAP
No Disponible
#35
O-RING
$1.29¢644
#36
UNDER BRACKET COMP.
$164.22¢82 113
#37
BEARING
$66.19¢33 094
#38
SEAL, STEERING
$25.53¢12 763
#39
BOLT 1
$1.57¢788
#40
Cover
$9.19¢4 594
