FENDER

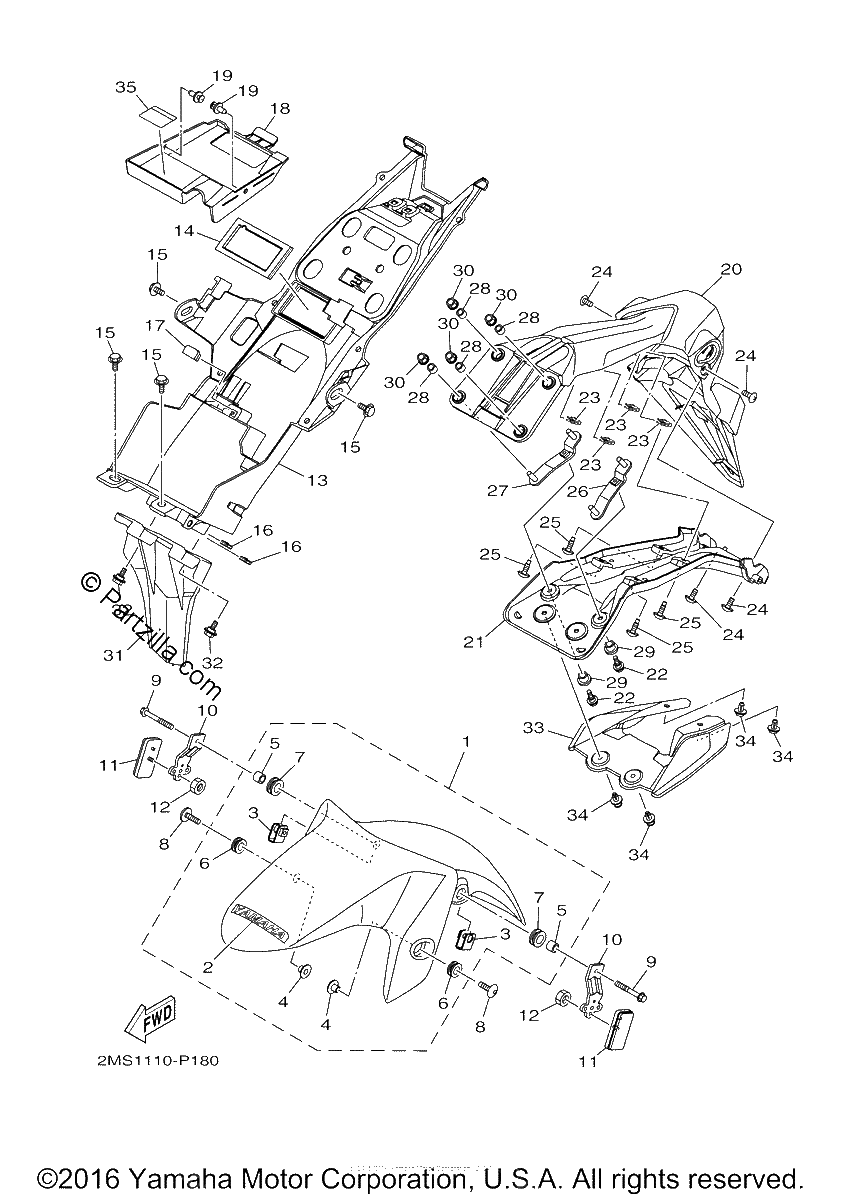

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
FENDER, FRONT | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$67.05¢33 525
#0
EMBLEM, YAMAHA | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
No Disponible
#0
FENDER, FRONT | UR FOR MNM3
$54.35¢27 175
#1
FENDER, FRONT | Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 )
$96.36¢48 181
#2
EMBLEM, YAMAHA | UR FOR MNM3
$0.44¢219
#3
BRACKET
$1.29¢644
#4
COLLAR
$2.71¢1 356
#5
COLLAR
$2.60¢1 300
#6
GROMMET
$0.36¢181
#7
GROMMET
$2.03¢1 013
#8
BOLT,HEX. SOCKET BUTTON
$5.69¢2 844
#9
BOLT, SMALL FLANGE
$2.95¢1 475
#10
BRACKET, REFLECTOR 1
$4.55¢2 275
#11
REFLECTOR ASSY
$14.18¢7 088
#12
NUT,FLANGE (SILVER)
$0.91¢456
#13
FENDER, REAR
$53.45¢26 725
#14
SEAL
$3.41¢1 706
#15
BOLT
$2.74¢1 369
#16
NUT, SPRING
$2.82¢1 412
#17
SEAL, 2
$1.29¢644
#18
COVER, REAR FENDER 2
$12.24¢6 119
#19
RIVET
$6.78¢3 388
#20
GUARD, MUD
$33.22¢16 612
#21
BRACKET, FENDER
$17.35¢8 675
#22
BOLT,HEX. SOCKET BUT
$5.91¢2 956
#23
NUT, SPRING
$3.11¢1 556
#24
SCREW, TRUSS HEAD TAPPING
$1.71¢856
#25
BOLT, HEX. SOCKET BUTTON
$7.03¢3 513
#26
BRACKET, REAR STAY
$7.95¢3 975
#27
BRACKET, REAR STAY 2
$28.75¢14 375
#28
COLLAR
$8.89¢4 444
#29
COLLAR
$2.82¢1 412
#30
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
#31
FLAP
$4.63¢2 313
#32
BOLT
$6.40¢3 200
#33
COVER, REAR FENDER 1
$5.00¢2 500
#34
RIVET
$6.78¢3 388
#35
PLATE, ROUTING 2 | FOR CAL
$6.65¢3 325
