SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

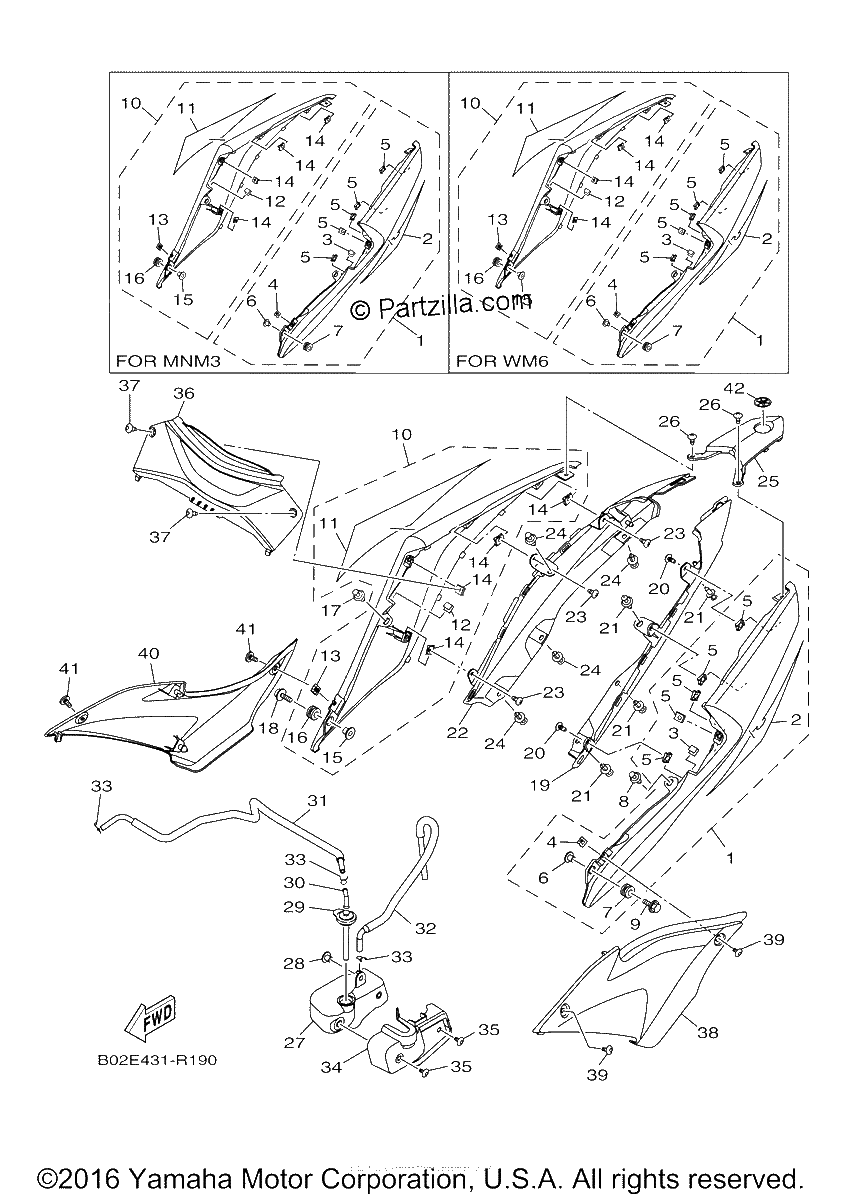

Diagrama de SIDE COVER

Repuestos

#0
1WD-XF172-00-P4
COVER, SIDE 2 | UR FOR MNM3
$35.71¢17 854
1
#0
1WD-F17F1-60-00
GRAPHIC, 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$5.51¢2 754
1
#0
1WD-XF171-40-P2
COVER, SIDE 1 | Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 )
$72.76¢36 380
1
#0
1WD-XF171-00-P4
COVER, SIDE 1 | UR FOR MNM3
$36.10¢18 049
1
#0
1WD-XF172-60-P1
COVER, SIDE 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$72.76¢36 380
1
#0
1WD-F17F2-80-00
GRAPHIC, 2 | UR FOR WM6
$3.79¢1 897
1
#0
1WD-F17F2-70-00
GRAPHIC, 2 | UR FOR MNM3
$3.35¢1 673
1
#0
1WD-F17F1-80-00
GRAPHIC, 1 | UR FOR WM6
$2.56¢1 282
1
#0
1WD-F1731-00-P1
COVER, SIDE 3 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$40.01¢20 004
1
#0
1WD-F1731-00-P0
COVER, SIDE 3 | Use for Color Black Metallic X ( SMX / 0903 )
$40.01¢20 004
1
#1
1WD-XF171-60-P1
COVER, SIDE 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$72.76¢36 380
1
#2
1WD-F17F1-70-00
GRAPHIC, 1 | UR FOR MNM3
$3.35¢1 673
1
#3
31B-F8307-00-00
SEAL
$2.44¢1 219
1
#4
90183-050A7-00
NUT, SPRING
$2.86¢1 432
1
#5
90183-05042-00
NUT, SPRING
$1.15¢575
1
#6
90387-06899-00
COLLAR
$2.70¢1 351
1
#7
90480-12808-00
GROMMET
$2.71¢1 357
1
#8
90269-06081-00
RIVET
$6.23¢3 117
1
#9
90119-06096-00
BOLT,WITH WASHER
$3.38¢1 691
1
#10
1WD-XF172-40-P2
COVER, SIDE 2 | Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 )
$72.76¢36 380
1
#11
1WD-F17F2-60-00
GRAPHIC, 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$2.70¢1 351
1
#12
31B-F8307-00-00
SEAL
$2.44¢1 219
1
#13
90183-050A7-00
NUT, SPRING
$2.86¢1 432
1
#14
90183-05042-00
NUT, SPRING
$1.15¢575
1
#15
90387-06899-00
COLLAR
$2.70¢1 351
1
#16
90480-12808-00
GROMMET
$2.71¢1 357
1
#17
90269-06081-00
RIVET
$6.23¢3 117
1
#18
90119-06096-00
BOLT,WITH WASHER
$3.38¢1 691
1
#19
1WD-F171L-00-00
MOLE, SIDE COVER 1
$4.30¢2 151
1
#20
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#21
90269-06081-00
RIVET
$6.23¢3 117
1
#22
1WD-F171M-00-00
MOLE, SIDE COVER 2
$16.09¢8 044
1
#23
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#24
90269-06081-00
RIVET
$6.23¢3 117
1
#25
1WD-F171N-00-00
MOLE, SIDE COVER 3
$11.73¢5 865
1
#26
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#27
1WD-F1871-00-00
TANK, RECOVERY
$23.01¢11 506
1
#28
90387-06857-00
COLLAR
$1.18¢592
1
#29
1WD-F1875-00-00
CAP
$3.30¢1 650
1
#30
26H-21828-00-00
ELBOW
$24.05¢12 023
1
#31
1WD-F1816-00-00
PIPE 1
$11.49¢5 744
1
#32
1WD-F1817-00-00
PIPE 2
$7.28¢3 640
1
#33
90467-08003-00
CLIP
$6.90¢3 450
1
#34
1WD-F172W-00-00
COVER
$15.84¢7 918
1
#35
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#36
1WD-F1731-00-P5
COVER, SIDE 3 | UR FOR MNM3
$14.27¢7 136
1
#37
90160-05810-00
SCREW, ROUND TAPPING
$1.74¢868
1
#38
1WD-F171E-00-00
COVER, SIDE 5
$15.21¢7 607
1
#39
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#40
1WD-F171X-00-00
COVER, SIDE 6
$7.28¢3 640
1
#41
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#42
1PA-F836B-00-00
TUNING FORK MARK
$31.65¢15 824
1
