REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

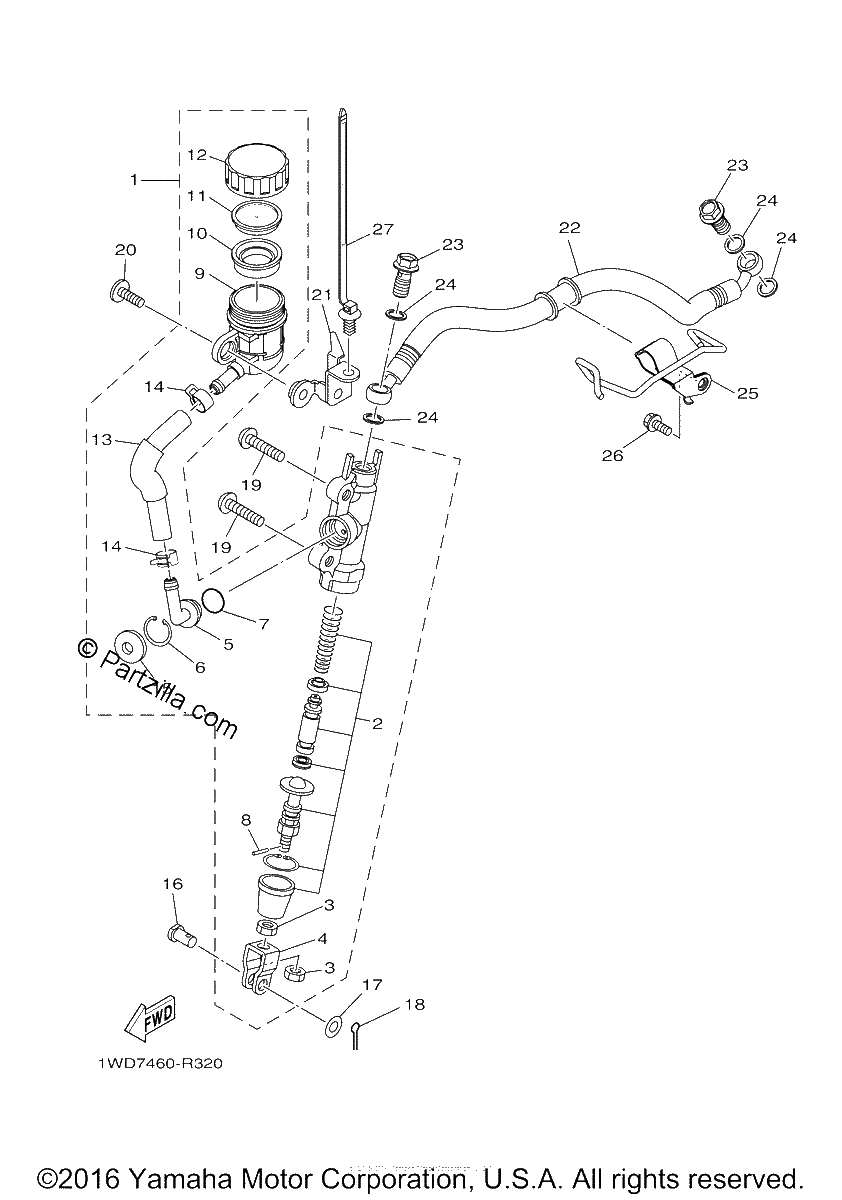

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
1WD-F580E-00-00
REAR MASTER CYLINDER ASSY
$96.66¢48 331
1
#2
1WD-F5808-00-00
CYLINDER KIT, MASTER
$33.31¢16 656
1
#3
95317-08700-00
NUT
$8.39¢4 194
1
#4
50C-F7222-00-00
JOINT
$3.34¢1 669
1
#5
50C-F582A-50-00
JOINT
$4.24¢2 119
1
#6
50C-F5866-00-00
CIRCLIP
$1.21¢606
1
#7
93210-15566-00
O-RING
$6.88¢3 438
1
#8
3KW-27234-00-00
PIN, BRAKE ROD
$7.91¢3 956
1
#9
50C-F5894-11-00
TANK, RESERVOIR
$16.54¢8 269
1
#10
2VN-F5854-00-00
DIAPHRAGM, RESERVOIR
$4.72¢2 363
1
#11
50C-F5855-00-00
BUSH, DIAPHRAGM
$2.95¢1 475
1
#12
1WD-F5852-50-00
CAP, RESERVOIR
$4.49¢2 244
1
#13
1WD-F5895-50-00
HOSE, RESERVOIR
$23.64¢11 819
1
#14
90467-12085-00
CLIP
$8.69¢4 344
1
#15
50C-F589A-00-00
COVER, DUST
$4.92¢2 463
1
#16
90240-08124-00
PIN, CLEVIS
$6.76¢3 381
1
#17
90201-08083-00
WASHER, PLATE
$7.48¢3 738
1
#18
91401-20012-00
PIN, COTTER
$2.20¢1 100
1
#19
92012-08030-00
BOLT, BUTTON HEAD
$6.74¢3 369
1
#20
90111-06121-00
BOLT, HEX. SOCKET BUTTON
$5.00¢2 500
1
#21
B04-F582E-00-00
HOLDER, RESERVE TANK
$13.64¢6 819
1
#22
1WD-F5873-00-00
HOSE, BRAKE 2
$30.19¢15 094
1
#23
90401-10159-00
BOLT, UNION
$10.54¢5 269
1
#24
90201-10118-00
WASHER, PLATE
$3.44¢1 719
1
#25
1WD-F5887-00-00
HOLDER, BRAKE HOSE
$10.77¢5 387
1
#26
95817-06014-00
BOLT, FLANGE (replaces 95802-06014-00)
$2.65¢1 325
1
#27
90464-30009-00
CLAMP
$3.89¢1 944
1
