FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

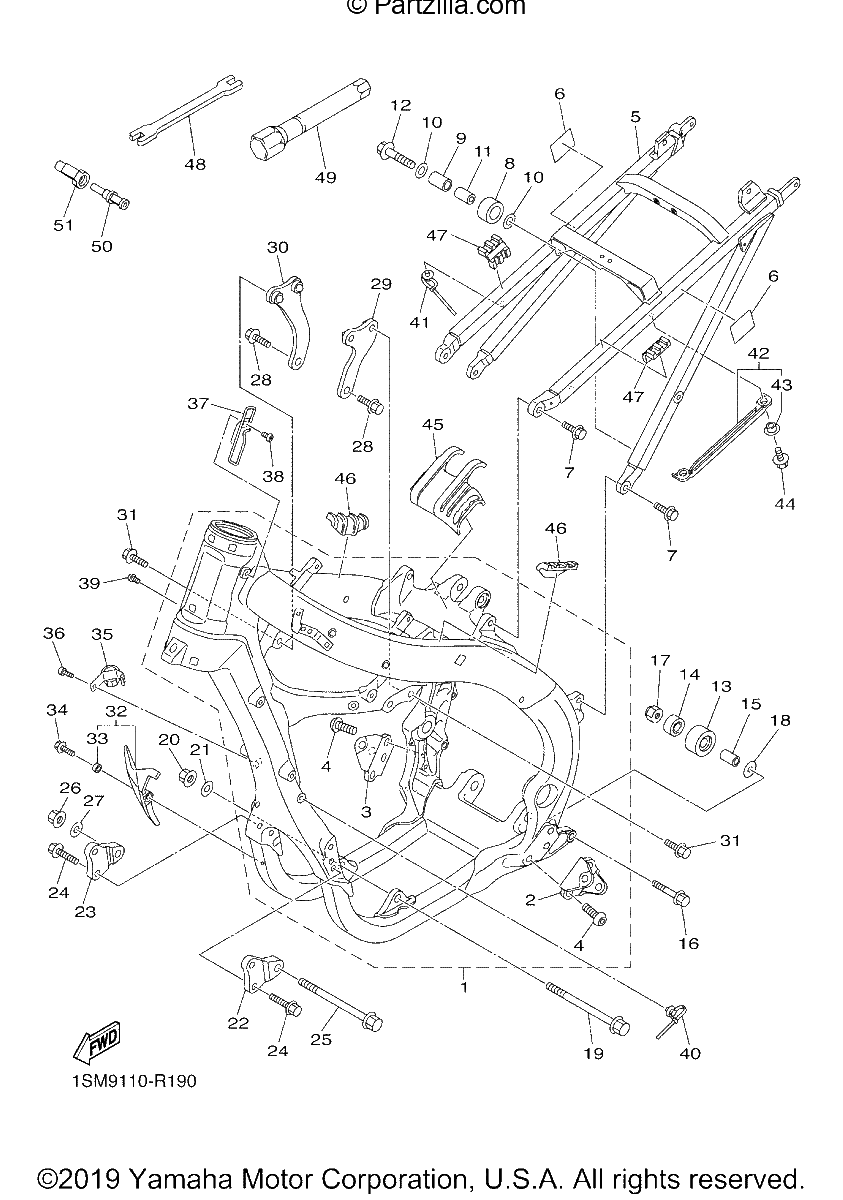

Diagrama de FRAME

Repuestos

#1
1SL-21101-02-00
FRONT FRAME COMP.
$2878.44¢1 439 219
1
#2
17D-21447-00-00
BRACKET, FOOTREST
$38.87¢19 435
1
#3
17D-21448-00-00
BRACKET, FOOTREST
$36.54¢18 268
1
#4
90149-10033-00
SCREW
$5.97¢2 984
1
#5
1SL-21190-10-00
REAR FRAME COMP.
No Disponible
1
#6
33D-23472-00-00
PROTECTOR
$4.52¢2 260
1
#7
90105-08230-00
Bolt, Flange
$3.90¢1 949
1
#8
30X-22178-00-00
TENSIONER
$34.55¢17 273
1
#9
4V4-22184-00-00
BUSH
$3.90¢1 949
1
#10
90201-08045-00
WASHER, PLATE
$5.21¢2 605
1
#11
90387-08041-00
COLLAR
$7.38¢3 691
1
#12
95024-08040-00
Bolt, Flange
$6.75¢3 375
1
#13
3JD-22178-20-00
TENSIONER
$42.53¢21 263
1
#14
93300-60839-00
BEARING
$12.25¢6 124
1
#15
90387-086N4-00
COLLAR
$9.12¢4 560
1
#16
90105-08232-00
BOLT, FLANGE
$2.37¢1 185
1
#17
90185-08009-00
NUT, SELF-LOCKING
$7.44¢3 720
1
#18
90201-08043-00
WASHER, plate
$6.32¢3 162
1
#19
90105-10176-00
BOLT, FLANGE
$10.51¢5 256
1
#20
90179-10658-00
NUT,SPEC'L SHAPE
$8.49¢4 244
1
#21
90201-10045-00
WASHER, PLATE
$6.75¢3 375
1
#22
1SM-21417-00-00
BRACKET, FRONT LOWER 1
$92.78¢46 391
1
#23
1SM-21418-00-00
BRACKET, FRONT LOWER 2
$62.13¢31 067
1
#24
90105-08143-00
BOLT, FLANGE
$6.23¢3 117
1
#25
90105-10443-00
BOLT, FLANGE
$22.40¢11 201
1
#26
90179-10658-00
NUT,SPEC'L SHAPE
$8.49¢4 244
1
#27
90201-10025-00
WASHER, plate
$6.82¢3 410
1
#28
90105-10189-00
BOLT, FLANGE
$9.18¢4 589
1
#29
1SM-21425-00-00
BRACKET, REAR UPPER 1
$32.26¢16 129
1
#30
1SM-21426-00-00
BRACKET, REAR UPPER 2
$50.70¢25 352
1
#31
90105-08143-00
BOLT, FLANGE
$6.23¢3 117
1
#32
1SM-21471-00-00
PROTECTOR, ENGINE
$10.65¢5 325
1
#33
90387-06106-00
COLLAR
$5.93¢2 967
1
#34
90105-06203-00
BOLT, FLANGE
$1.98¢989
1
#35
1SM-21335-01-00
CLAMP, WIRE HARNESS 1
$23.14¢11 569
1
#36
91312-05008-00
BOLT
$5.69¢2 846
1
#37
1SL-21163-01-00
HOLDER, CLUTCH CABLE
$18.92¢9 459
1
#38
92012-06010-00
BOLT, BUTTON HEAD
$2.68¢1 340
1
#39
92012-06010-00
BOLT, BUTTON HEAD
$2.68¢1 340
1
#40
90464-31002-00
CLAMP
$4.20¢2 099
1
#41
90464-31002-00
CLAMP
$4.20¢2 099
1
#42
1SL-2171E-00-00
COVER, SIDE 5
$9.03¢4 514
1
#43
90387-065T2-00
COLLAR
$7.44¢3 720
1
#44
95022-06016-00
BOLT, FLANGE
$3.65¢1 823
1
#45
1SL-24181-00-00
DAMPER, LOCATING 1
$20.15¢10 074
1
#46
33D-24182-00-00
DAMPER, LOCATING 2
$16.67¢8 337
1
#47
33D-24183-00-00
DAMPER, LOCATING 3
$11.73¢5 865
1
#48
5ET-28166-10-00
WRENCH, HEXAGON
$32.07¢16 037
1
#49
17D-2814F-00-00
BOX, SPARK PLUG
$10.51¢5 256
1
#50
18P-2467E-00-00
CAP
$7.23¢3 617
1
#51
18P-2464V-00-00
CASE, CAP
$5.34¢2 668
1
