CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

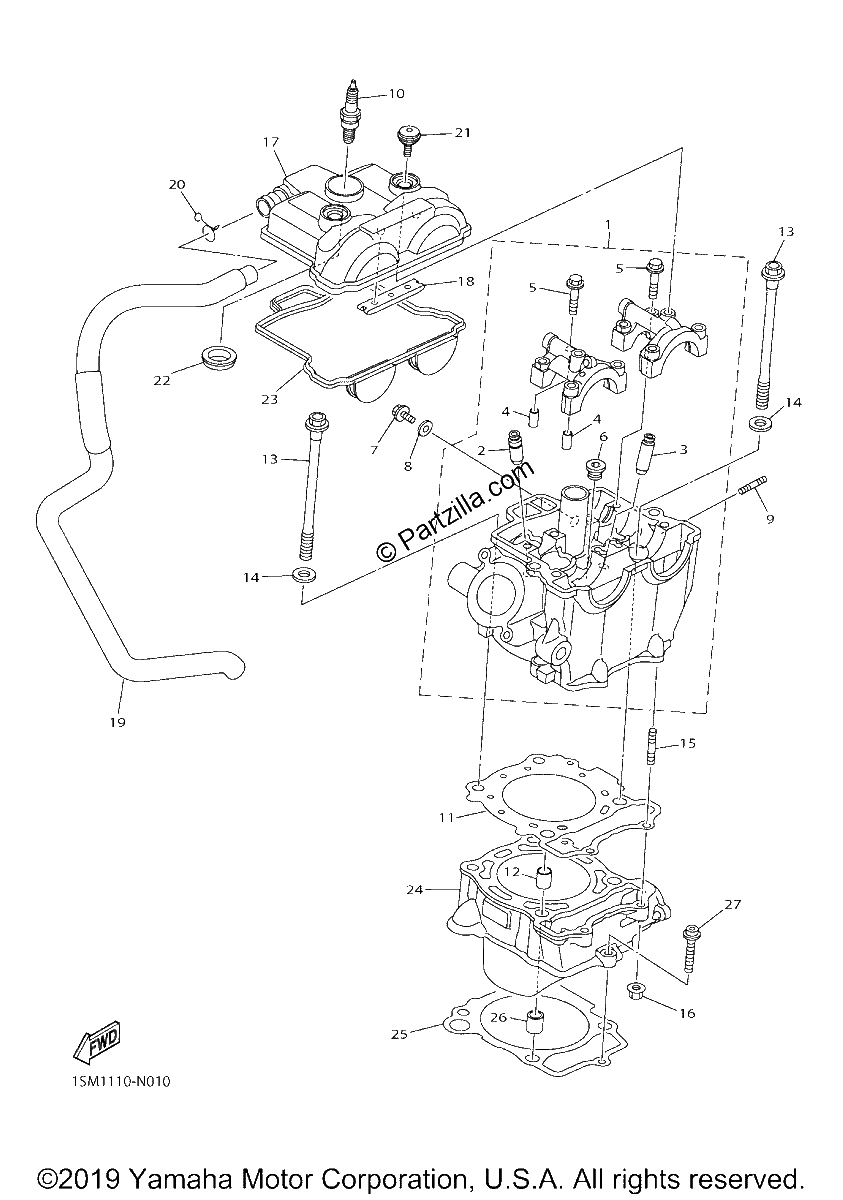

Diagrama de CYLINDER

Repuestos

#1
1SM-11101-09-00
Cylinder Head Assy
$986.69¢493 344
1
#2
5TA-11134-10-00
GUIDE, EXHAUST VALVE
$52.20¢26 099
1
#3
3D7-11133-10-00
GUIDE, VALVE 1
$60.89¢30 446
1
#4
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#5
90105-06027-00
BOLT, FLANGE
$7.06¢3 530
1
#6
90340-12007-00
PLUG, STRAIGHT SCREW
$6.83¢3 415
1
#7
95022-06010-00
BOLT, FLANGE
$5.97¢2 984
1
#8
90430-06014-00
GASKET
$7.59¢3 795
1
#9
95612-08620-00
BOLT, STUD
$6.83¢3 415
1
#10
LMA-R8G00-00-00
LMAR8 NGK SPLUG 10PK (replaces 94701-00434-00)
$13.55¢6 773
1
#11
1SM-11181-00-00
GASKET, CYLINDER HEAD 1
$40.01¢20 004
1
#12
93612-16254-00
PIN,DOWEL
$4.77¢2 386
1
#13
90105-09004-00
Bolt, Flange
$13.48¢6 739
1
#14
90201-096J9-00
WASHER,PLATE
$3.07¢1 535
1
#15
90116-06037-00
BOLT, stud
$3.70¢1 852
1
#16
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#17
1SM-11190-09-00
COVER, CYLINDER HEAD 1
$213.05¢106 524
1
#18
5BE-12241-00-00
GUIDE, STOPPER 2
$28.00¢14 001
1
#19
1SM-11166-00-00
PIPE, BREATHER 1
$27.81¢13 904
1
#20
90467-140A4-00
CLIP
$9.12¢4 560
1
#21
5UM-1119E-00-00
BOLT, COVER HEAD
$12.02¢6 009
1
#22
1SM-11194-00-00
GASKET, HEAD COVER 2
$15.65¢7 826
1
#23
1SM-11193-00-00
GASKET, HEAD COVER 1
$29.57¢14 783
1
#24
1SM-11311-00-00
CYLINDER 1
$753.95¢376 976
1
#25
1SM-11351-00-00
Gasket, Cylinder
$16.40¢8 199
1
#26
93612-16254-00
PIN,DOWEL
$4.77¢2 386
1
#27
90110-06380-00
BOLT, HEXAGON SOCKET HEAD
$6.92¢3 461
1
#28
1SM-W0001-00-00
TOP END GASKET KIT
$71.33¢35 667
1
