EXHAUST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

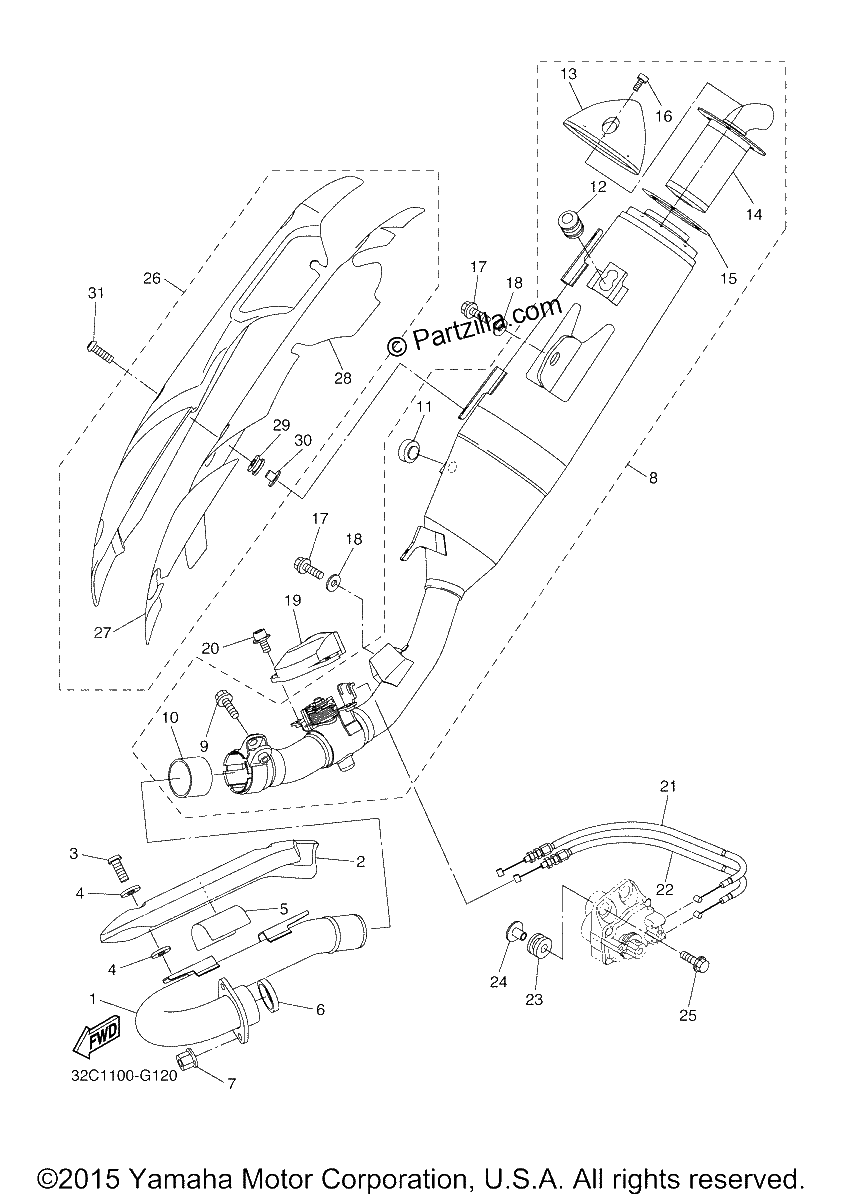

Diagrama de EXHAUST

Repuestos

#1
3D7-14611-00-00
PIPE, EXHAUST 1
$226.21¢113 106
1
#2
3D7-14628-00-00
PROTECTOR, EXHAUST P
$141.40¢70 700
1
#3
98980-06012-00
SCREW, BIND
$7.34¢3 669
1
#4
90201-05015-00
WASHER, PLATE
$7.48¢3 738
1
#5
3D7-1465R-00-00
Plate, Protector
$4.96¢2 481
1
#6
4FM-14613-00-00
GASKET, EXHAUST PIPE
$12.75¢6 375
1
#7
90179-08410-00
NUT
$5.99¢2 994
1
#8
32C-14710-01-00
MUFFLER ASSY 1 (replaces 32C-14710-00-00)
$1317.49¢658 744
1
#9
95814-08035-00
BOLT,FLANGE (replaces 95824-08035-00)
$7.94¢3 969
1
#10
5PX-14755-00-00
GASKET, SILENCER
$29.59¢14 794
1
#11
22W-24181-00-00
DAMPER, LOCATING 1
$6.85¢3 425
1
#12
3D7-14737-00-00
DAMPER, MUFFLER
$11.27¢5 637
1
#13
32C-14799-00-00
CAP
$147.27¢73 637
1
#14
32C-14780-00-00
SPARK ARRESTER ASSY
$321.40¢160 700
1
#15
32C-14623-00-00
Gasket, Exhaust Pipe
$35.88¢17 938
1
#16
91380-06012-00
BOLT
$2.23¢1 113
1
#17
95024-10016-00
Bolt, Flange
$3.38¢1 688
1
#18
92990-10200-00
WASHER (replaces 92902-10200-00)
$3.41¢1 706
1
#19
3D7-14826-00-00
PROTECTOR, EXHAUST
$50.77¢25 388
1
#20
90119-06115-00
BOLT,WITH WASHER
$4.04¢2 019
1
#21
3D7-1133E-01-00
CABLE, PULLEY 1
$61.57¢30 787
1
#22
3D7-1133F-01-00
CABLE, PULLEY 2
$77.29¢38 644
1
#23
90480-14604-00
GROMMET
$8.84¢4 419
1
#24
90387-06158-00
COLLAR
$7.34¢3 669
1
#25
95022-06025-00
BOLT, FLANGE
$1.75¢875
1
#26
3D7-14708-10-P0
PROTECTOR ASSY
$388.27¢194 138
1
#27
3D7-14728-00-00
PROTECTOR, MUFFLER 2
$10.74¢5 369
1
#28
3D7-14738-00-00
PROTECTOR, MUFFLER 3
$36.58¢18 288
1
#29
90480-12581-00
GROMMET
$5.54¢2 769
1
#30
90387-087L0-00
COLLAR
$7.35¢3 675
1
#31
90111-06087-00
BOLT,HEX. SOCKET BUT
$4.72¢2 363
1
