CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

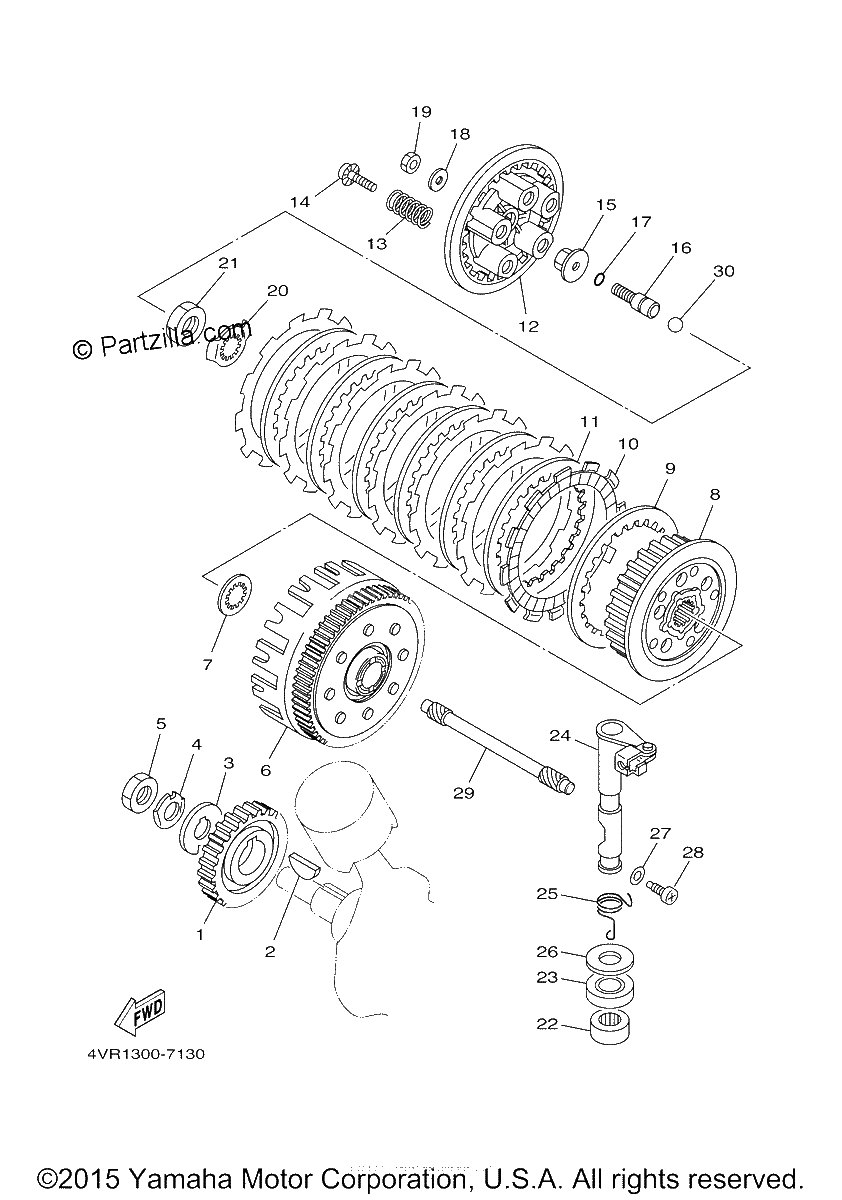

Diagrama de CLUTCH

Repuestos

#1
4VR-16111-00-00
GEAR, PRIMARY DRIVE (38T)
$61.39¢30 694
1
#2
90280-07036-00
KEY, WOODRUFF
$2.91¢1 455
1
#3
90214-16026-00
WASHER, CLAW
$6.15¢3 076
1
#4
90215-16222-00
WASHER, LOCK
$8.83¢4 416
1
#5
90170-16343-00
NUT
$14.97¢7 486
1
#6
5BN-16150-00-00
PRIMARY DRIVEN GEAR COMP.
$563.56¢281 779
1
#7
22U-16154-00-00
PLATE, THRUST 1
$35.24¢17 618
1
#8
4VR-16371-00-00
BOSS, CLUTCH
$205.18¢102 591
1
#9
4X7-16324-00-00
PLATE, CLUTCH 1
$10.87¢5 434
1
#10
22U-16321-00-00
PLATE, FRICTION
$28.00¢14 001
1
#11
4X7-16325-00-00
PLATE,CLUTCH 2
$17.19¢8 596
1
#12
22U-16351-00-00
PLATE, PRESSURE 1
$82.05¢41 026
1
#13
90501-23738-00
SPRING, COMPRESSION
$11.67¢5 836
1
#14
90159-06016-00
SCREW, WITH WASHER
$3.07¢1 535
1
#15
1W1-16358-01-00
PLATE, PUSH
$21.98¢10 988
1
#16
4VR-16356-00-00
ROD, PUSH 1
$18.92¢9 459
1
#17
93210-09525-00
O-Ring
$5.16¢2 582
1
#18
92907-06200-00
WASHER
$6.76¢3 381
1
#19
95317-06600-00
NUT
$2.96¢1 478
1
#20
90215-22244-00
WASHER, LOCK
$12.45¢6 227
1
#21
90170-20323-00
NUT
$21.34¢10 672
1
#22
93315-21813-00
BEARING
$35.48¢17 739
1
#23
93102-18278-00
OIL SEAL,SD-TYPE
$11.43¢5 716
1
#24
22U-16380-00-00
PUSH LEVER ASSY
$63.12¢31 562
1
#25
90508-16577-00
SPRING, TORSION
$6.45¢3 226
1
#26
90201-18262-00
WASHER, PLATE
$6.88¢3 439
1
#27
90430-08119-00
GASKET
$6.36¢3 180
1
#28
90149-08067-00
SCREW,SPEC'L SHAPE
$4.98¢2 490
1
#29
22U-16357-00-00
ROD, PUSH 2
$49.59¢24 794
1
#30
93515-32029-00
BALL
$3.04¢1 518
1
