HANDLE SWITCH LEVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

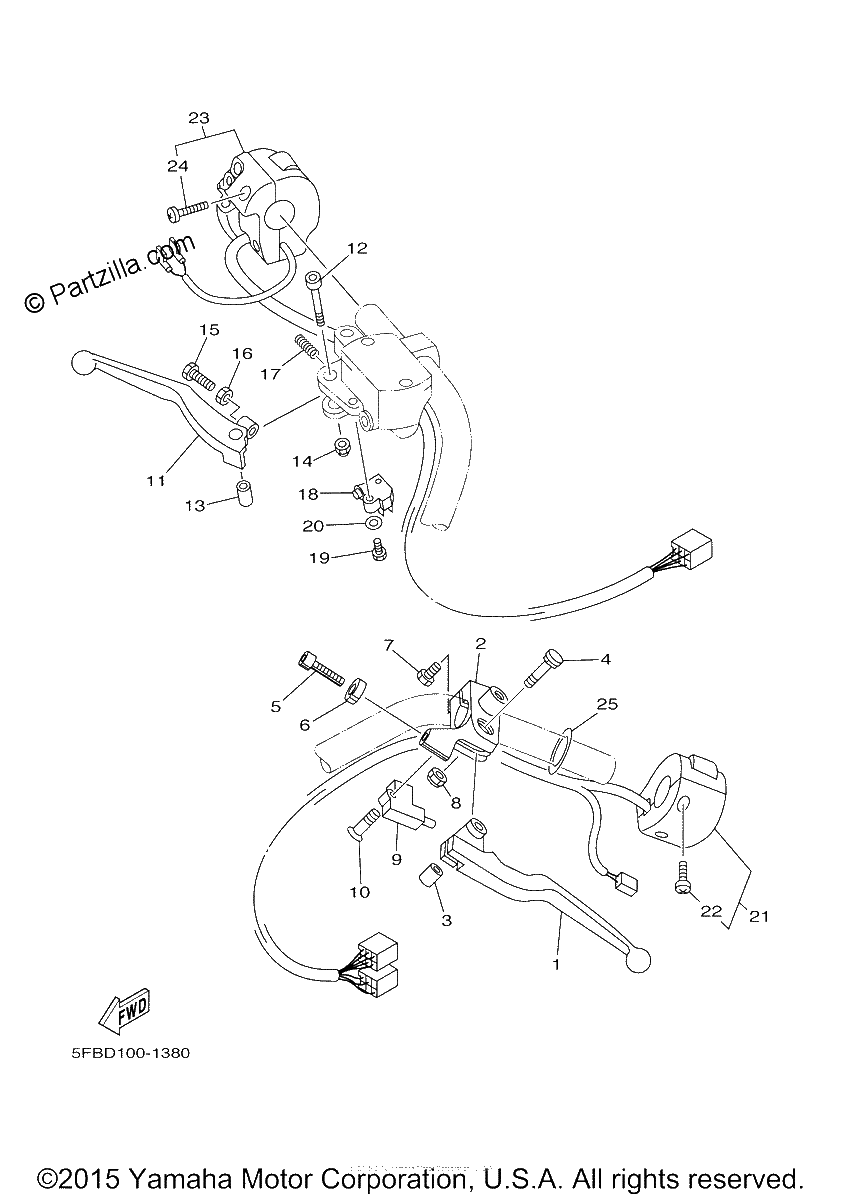

Diagrama de HANDLE SWITCH LEVER

Repuestos

#1
4TR-83912-10-00
LEVER 1
$33.76¢16 882
1
#2
4TR-82911-10-00
HOLDER, LEVER 1
$49.90¢24 949
1
#3
4TR-83913-00-00
COLLAR, LEVER 1
$7.30¢3 651
1
#4
4TR-83945-00-00
BOLT, LEVER
$13.96¢6 981
1
#5
90123-08046-00
BOLT
$10.06¢5 031
1
#6
90179-08148-00
NUT
$4.27¢2 133
1
#7
97017-06020-00
BOLT, HEXAGON (replaces 97027-06020-00)
$2.78¢1 392
1
#8
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#9
3YX-82917-01-00
SWITCH
$43.52¢21 758
1
#10
57M-83358-00-00
SCREW, SPECIAL
$6.69¢3 347
1
#11
36Y-83922-00-00
LEVER 2
$40.88¢20 441
1
#12
90110-06074-00
BOLT, HEXAGON SOCKET HEAD
$7.77¢3 887
1
#13
36Y-83913-01-00
COLLAR, LEVER 1
$9.79¢4 893
1
#14
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#15
90149-06131-00
SCREW
$6.75¢3 375
1
#16
90170-06010-00
NUT
$6.75¢3 375
1
#17
90501-10312-00
SPRING,COMPRESSION
$6.75¢3 375
1
#18
J45-82503-01-00
FRONT STOP SWITCH ASSY
$37.32¢18 659
1
#19
98517-04016-00
SCREW, PAN HEAD
$6.76¢3 381
1
#20
92907-04600-00
WASHER
$1.35¢673
1
#21
5FB-83973-20-00
SWITCH, HANDLE 3
$194.11¢97 054
1
#22
98580-05525-00
SCREW, PAN HEAD
$1.68¢839
1
#23
5VN-83975-30-00
SWITCH, HANDLE 2
$310.19¢155 095
1
#24
98580-05525-00
SCREW, PAN HEAD
$1.68¢839
1
#25
90202-26142-00
WASHER,PLATE
$8.83¢4 416
1
