CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

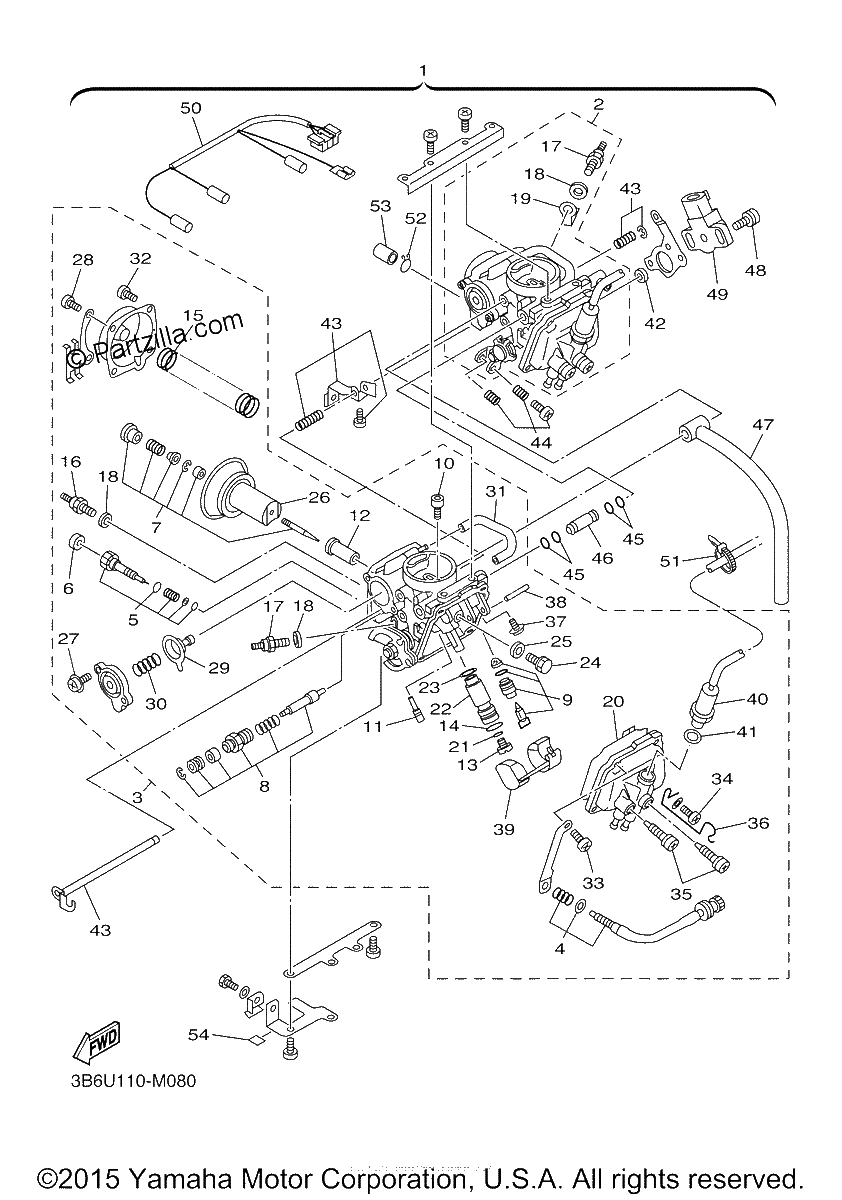

Diagrama de CARBURETOR

Repuestos

#0
5SC-1410H-00-00
FUEL CUT SOLENOID VALVE | UR (#2) FRONT
$308.87¢154 433
1
#0
5SC-14906-20-00
CARBURETOR ASSY
$2074.59¢1 037 294
1
#0
4TR-14105-00-00
PILOT SCREW SET
$27.04¢13 518
1
#1
5SC-14900-20-00
CARBURETOR ASSY | FOR CALIFORNIA
$2172.34¢1 086 169
1
#2
5SC-14901-20-00
CARBURETOR ASSY 1 | (#1) REAR
$1133.89¢566 944
1
#3
5SC-14902-20-00
CARBURETOR ASSY 2 | (#2) FRONT
$1235.09¢617 544
1
#4
4TR-14103-00-00
THROTTLE SCREW SET | (#2) FRONT
$97.11¢48 553
1
#5
4LA-14105-00-00
PILOT SCREW SET | FOR CALIFORNIA
$16.53¢8 263
1
#6
3F9-14118-00-00
CAP
$8.26¢4 129
1
#7
5BN-1490J-00-00
NEEDLE SET
$33.05¢16 525
1
#8
4DN-1410A-01-00
STARTER SET
$76.60¢38 301
1
#9
3CF-14107-10-00
NEEDLE VALVE SET
$34.79¢17 394
1
#10
1HX-14231-20-00
JET,PILOT AIR (#100)
$12.79¢6 394
1
#11
4KM-14142-20-00
JET, PILOT (#20)
$8.92¢4 462
1
#12
3DM-1414M-34-00
NOZZLE, MAIN
$33.92¢16 963
1
#13
3G2-1414E-36-00
JET, MAIN (#91.3)
$11.38¢5 693
1
#14
8F2-14147-00-00
O-RING
$3.10¢1 553
1
#15
4VR-14933-00-00
SPRING, DIAPHRAGM
$13.10¢6 549
1
#16
5FU-83790-00-00
HEATER ASSY (15W)
$30.21¢15 105
1
#17
5FU-83790-10-00
HEATER ASSY (20W)
$40.01¢20 004
1
#18
90201-08016-00
WASHER, PLATE | FOR CALIFORNIA
$6.83¢3 415
1
#19
4DH-82103-00-00
TERMINAL 1 | (#1) REAR
$11.90¢5 951
1
#20
1HX-14147-00-00
O-RING
$17.39¢8 694
1
#21
1AE-14227-00-00
O-RING
$9.56¢4 778
1
#22
5SC-14261-00-00
HOLDER
$39.15¢19 573
1
#23
1AE-14237-00-00
GASKET
$6.99¢3 496
1
#24
1HX-14565-00-00
SCREW
$18.58¢9 292
1
#25
137-14153-00-00
WASHER, MAIN JET
$7.07¢3 536
1
#26
4TR-14940-00-00
DIAPHRAGM ASSY
$194.02¢97 008
1
#27
98517-04012-00
SCREW, PAN HEAD
$3.58¢1 788
1
#28
3KW-14486-00-00
SCREW, ROD | (#2) FRONT
$7.08¢3 542
1
#29
22V-14940-00-00
DIAPHRAGM ASSY
$78.74¢39 370
1
#30
5SC-14275-00-00
SPRING
$3.82¢1 909
1
#31
4TR-14348-00-00
PIPE 1
$47.55¢23 776
1
#32
98507-04008-00
SCREW, PAN HEAD | UR (#2) FRONT
$1.59¢793
1
#33
98580-04014-00
SCREW, PAN HEAD
$3.06¢1 529
1
#34
4VR-24453-00-00
SCREW
$7.31¢3 657
1
#35
5LW-14191-00-00
PLUG, DRAIN
$10.41¢5 204
1
#36
4TR-14937-00-00
CLIP | (#2) FRONT
$20.53¢10 264
1
#37
1FN-14565-00-00
SCREW
$7.04¢3 519
1
#38
353-14186-00-00
PIN, FLOAT
$7.38¢3 691
1
#39
1HX-14985-00-00
FLOAT
$80.04¢40 020
1
#39
5GK-1491A-00-00
CAP
$9.81¢4 905
1
#40
5SC-1410H-10-00
FUEL CUT SOLENOID VALVE | UR (#1) REAR
$314.09¢157 044
1
#41
256-14956-01-00
WASHER
$7.08¢3 542
1
#42
4HM-14239-00-00
SEAL
$15.02¢7 510
1
#43
4TR-1490L-00-00
STARTER LEVER SET, 1
$107.52¢53 762
1
#44
3KW-1490K-00-00
STOP SCREW SET
$25.83¢12 915
1
#45
36Y-14147-00-00
O-RING
$5.54¢2 772
1
#46
1WG-14251-00-00
NIPPLE
$40.93¢20 464
1
#47
4TR-14987-00-00
HOSE
$59.74¢29 871
1
#48
4KM-24453-00-00
SCREW
$5.49¢2 743
1
#49
4NK-85885-00-00
THROTTLE POSITION SENSOR ASS
$365.22¢182 608
1
#50
5SC-81517-00-00
WIRE, SUB LEAD
$39.27¢19 636
1
#51
35H-14139-00-00
CLIP, PIPE
$5.13¢2 565
1
#52
55X-14937-00-00
CLIP
$7.24¢3 622
1
#54
4C8-21735-00-00
SEAL 2
$7.31¢3 657
1
