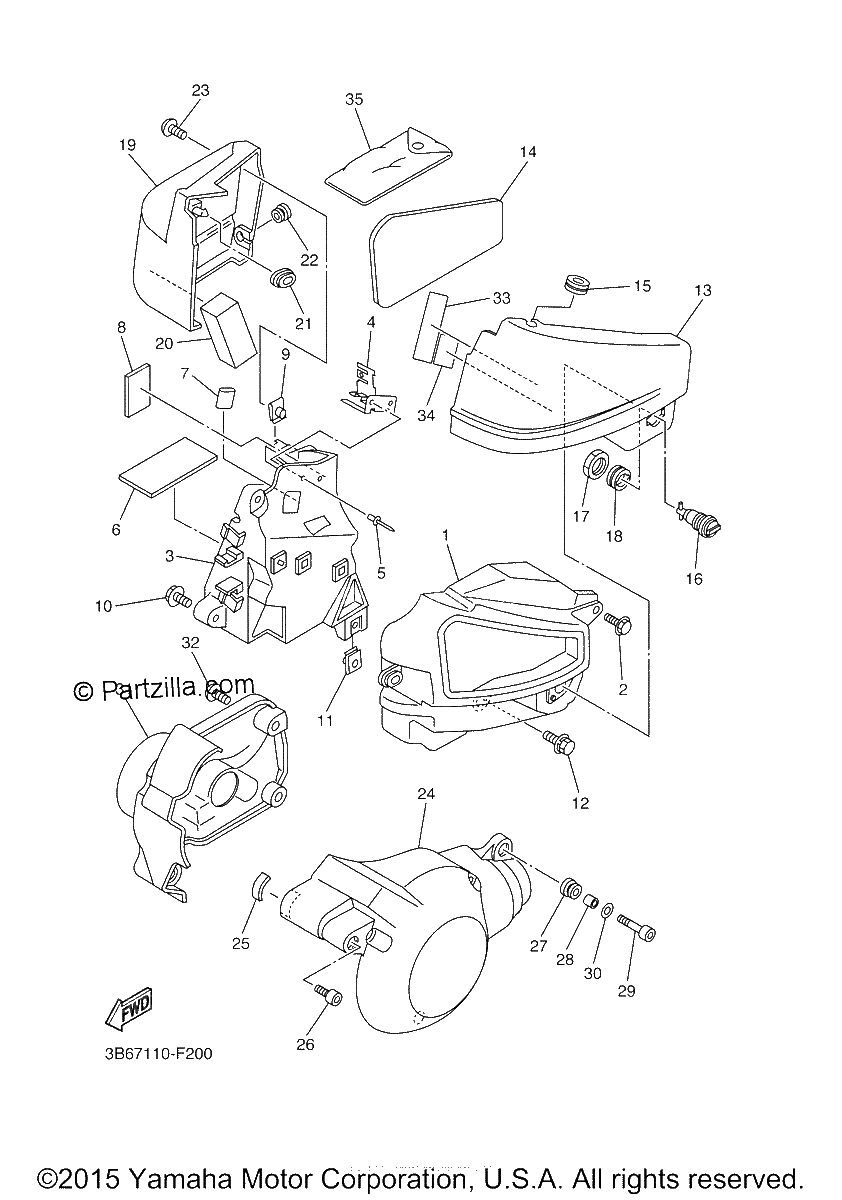

SIDE COVER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
BOX COMP.
$111.31¢55 656
#2
BOLT, WITH WASHER
$7.34¢3 669
#3
BOX, BATTERY
$28.52¢14 263
#4
BRACKET 1
$6.63¢3 313
#5
RIVET, BLIND
$1.51¢756
#6
SEAT, BATTERY
$7.77¢3 887
#7
HOSE
$1.23¢613
#8
DAMPER
$7.60¢3 800
#9
NUT, SPRING
$7.26¢3 631
#10
BOLT, WITH WASHER
$7.34¢3 669
#11
NUT,SPRING
$8.85¢4 425
#12
BOLT, WITH WASHER
$7.14¢3 569
#13
COVER, SIDE 1 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$96.90¢48 450
#14
DAMPER
$13.01¢6 506
#15
GROMMET
$7.99¢3 994
#16
LOCK ASSY 2
$82.26¢41 131
#17
NUT
$9.91¢4 956
#18
GROMMET
$7.94¢3 969
#19
COVER, SIDE 2 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$61.17¢30 588
#20
PROTECTOR 5
$9.00¢4 500
#21
Grommet
$5.72¢2 863
#22
GROMMET
$7.99¢3 994
#23
SCREW
$5.11¢2 556
#24
COVER, SIDE 3
$100.26¢50 131
#25
DAMPER (replaces 22F-21746-01-00) This item has been discontinued and may not be available. Contact us for more information.
No Disponible
#26
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
#27
GROMMET
$7.69¢3 844
#28
COLLAR
$12.52¢6 262
#29
BOLT (3JB) (replaces 91312-06020-00)
$2.44¢1 219
#30
WASHER, PLATE
$8.45¢4 225
#31
COVER, SIDE 4
$129.90¢64 950
#32
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
#33
LABEL, CAUTION
$4.94¢2 469
#34
LABEL, CAUTION
$16.32¢8 163
#35
TOOL KIT
$85.55¢42 775
