HEADLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

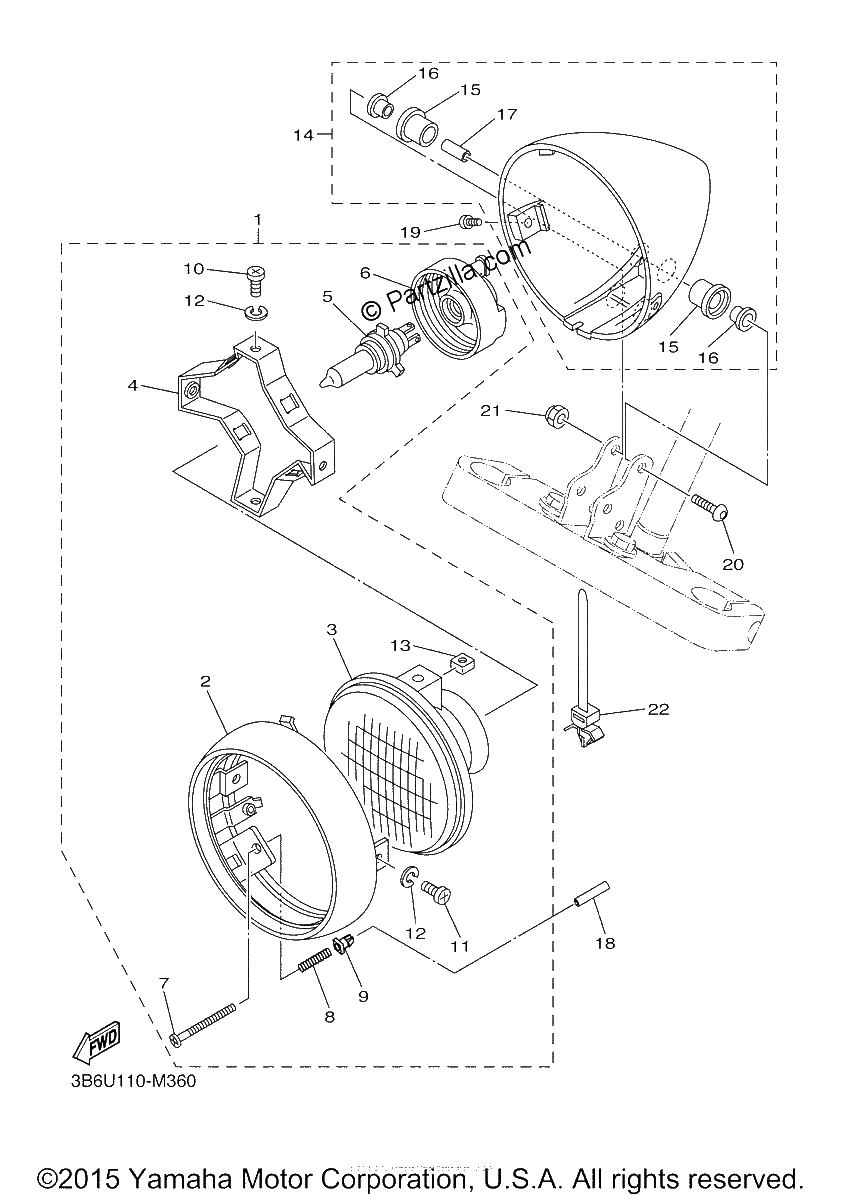

Diagrama de HEADLIGHT

Repuestos

#1
5KP-84310-01-00
HEADLIGHT UNIT ASSY
$366.82¢183 408
1
#2
5JX-84315-01-00
RIM, HEADLIGHT
$172.66¢86 330
1
#3
5KP-84321-00-00
LENS ASSY
$134.46¢67 229
1
#4
5JX-84316-00-00
BRACKET
$29.08¢14 542
1
#5
5V2-84314-00-XX
BULB (12V 60/55W HALOGEN) | (H4) HALOGEN
$82.94¢41 469
1
#6
4JG-84397-00-00
COVER, SOCKET
$14.60¢7 302
1
#7
90157-04001-00
SCREW, ADJUSTING
$5.86¢2 932
1
#8
341-84332-60-00
SPRING, SCREW
$9.35¢4 675
1
#9
47J-84334-00-00
NUT, ADJUSTING
$7.58¢3 789
1
#10
4KG-84365-00-00
SCREW
$1.75¢874
1
#11
50W-84333-00-00
SCREW
$8.03¢4 013
1
#12
92995-06100-00
WASHER, SPRING
$3.47¢1 737
1
#13
4KG-84334-00-00
NUT, ADJUSTING
$7.21¢3 605
1
#14
5JX-84330-10-00
BODY ASSY
$155.49¢77 746
1
#15
42X-84345-00-00
DAMPER, HEADLIGHT
$5.65¢2 823
1
#16
1FK-84338-00-00
COLLAR, BODY FITTING
$3.29¢1 644
1
#17
5JX-84388-00-00
COLLAR 1
$5.51¢2 754
1
#18
3B7-84385-00-00
CAP,1
$3.48¢1 742
1
#19
90157-05011-00
SCREW, PAN HEAD
$2.13¢1 064
1
#20
92014-06045-00
BOLT, BUTTON HEAD
$2.84¢1 420
1
#21
90176-06047-00
NUT, CAP
$7.52¢3 760
1
#22
90464-10112-00
CLAMP
$6.76¢3 381
1
