ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

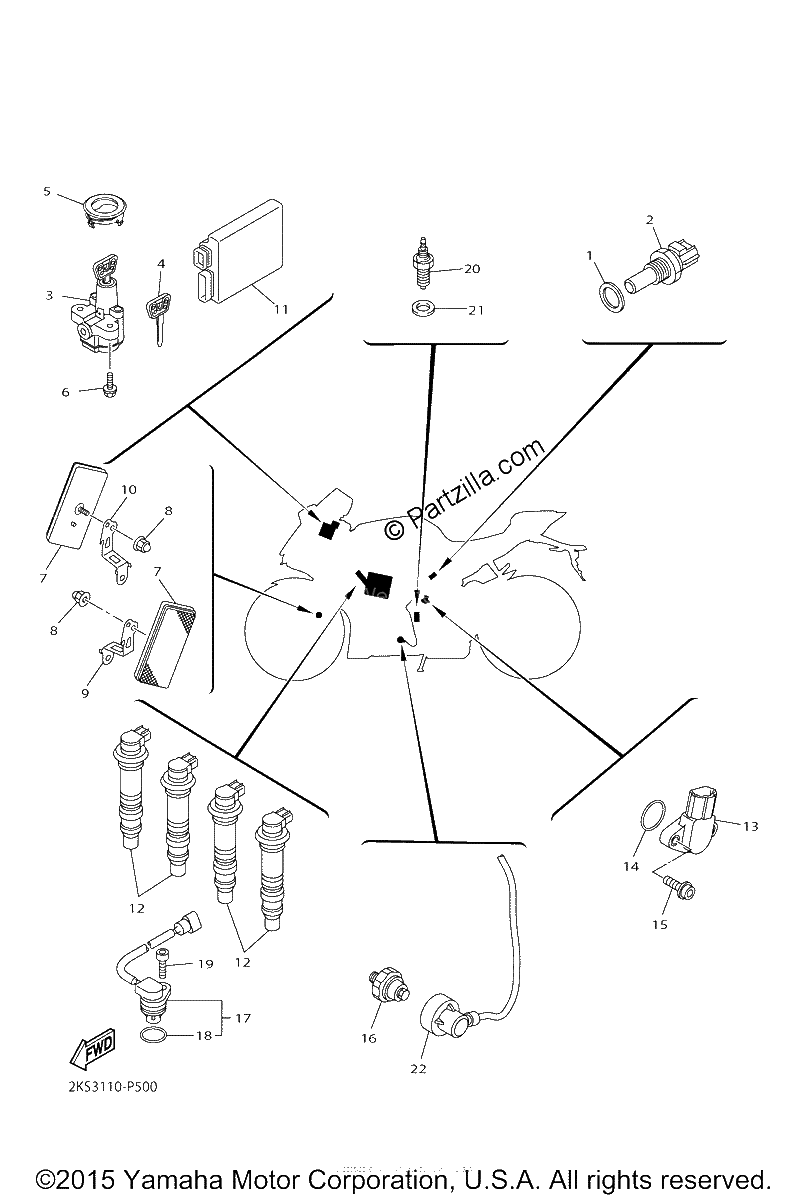

Diagrama de ELECTRICAL 1

Repuestos

#1
90430-10004-00
GASKET
$6.51¢3 254
1
#2
4P9-83591-00-00
THERMO UNIT
$31.65¢15 824
1
#3
2CR-82501-10-00
MAIN SWITCH STEERING LOCK
$163.56¢81 782
1
#4
4BH-82511-09-00
BLANK KEY | AP
$26.78¢13 392
1
#5
36P-82552-00-00
CAP, SWITCH
$13.78¢6 889
1
#6
90109-08196-00
BOLT
$6.76¢3 381
1
#7
11H-85110-01-00
REFLECTOR ASSY
$22.93¢11 466
1
#8
95702-05500-00
NUT,FLANGE (SILVER)
$0.84¢420
1
#9
2CR-85112-00-00
BRACKET, REFLECTOR 1
$23.07¢11 534
1
#10
2CR-85122-00-00
BRACKET, REFLECTOR 2
$26.99¢13 495
1
#11
2CR-8591A-60-00
ENGINE CONTROL UNIT ASSY
$1992.94¢996 469
1
#12
2CR-82310-00-00
IGNITION COIL ASSY
$130.50¢65 251
1
#13
2CR-85899-00-00
SENSOR, GEAR POSITION
$103.19¢51 595
1
#14
93210-17008-00
O-RING
$1.99¢995
1
#15
90110-05038-00
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
1
#16
1WS-82504-00-00
OIL PRESSURE SWITC
$66.99¢33 494
1
#17
5VY-85896-01-00
SENSOR, CAM POSITION
$139.21¢69 604
1
#18
4D9-81168-00-00
O-RING
$4.74¢2 369
1
#19
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
1
#20
3GB-82540-01-00
NEUTRAL SWITCH ASSY
$57.82¢28 911
1
#21
90430-10148-00
Gasket
$5.21¢2 605
1
#22
2CR-82509-10-00
WIRE, SUB LEAD
$16.17¢8 085
1
