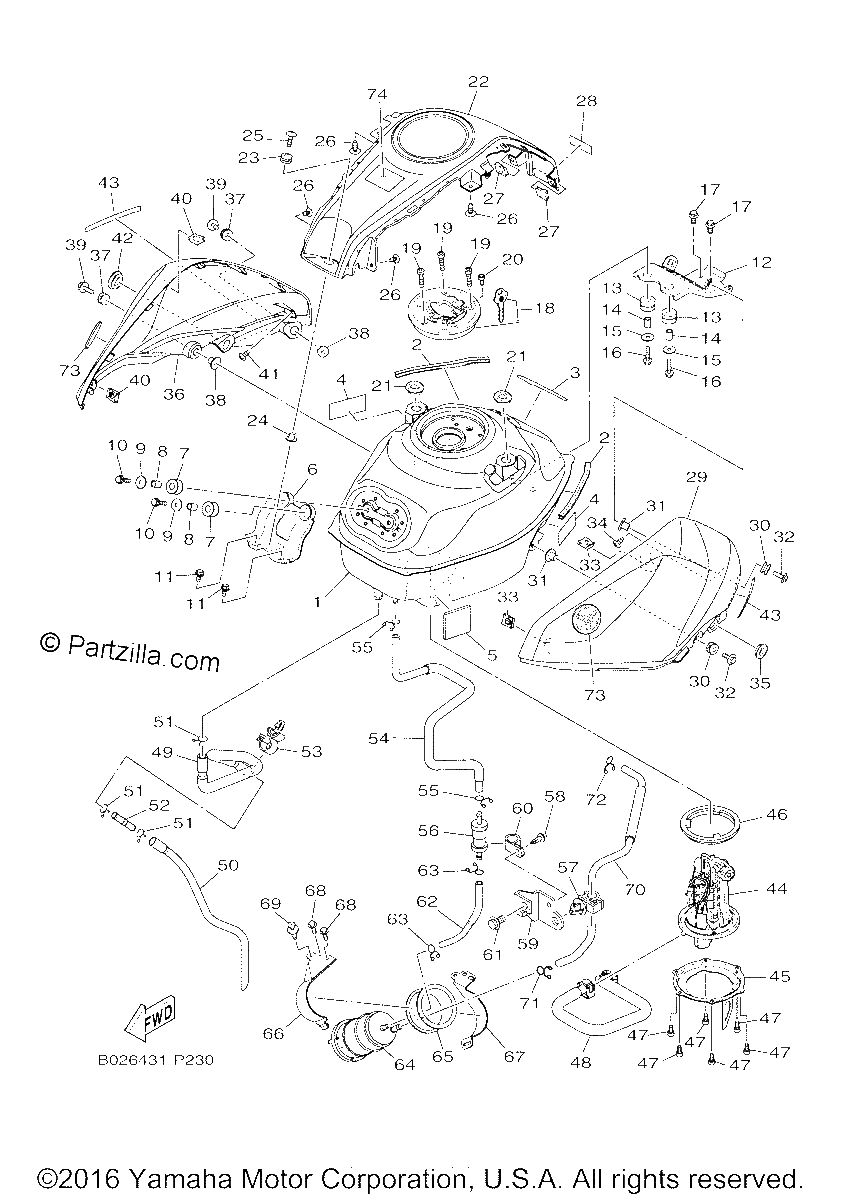

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
COVER, SIDE 1 | UR FOR WM6
$46.06¢23 031
#0
COVER, SIDE 1 | UR FOR MNM3
$42.58¢21 288
#0
COVER, SIDE 2 | UR FOR WM6
$17.57¢8 788
#0
COVER, SIDE 2 | UR FOR MNM3
$42.82¢21 412
#0
COVER, TANK | Use for Color Black Metallic X ( SMX / 0903 )
$35.26¢17 631
#1
FUEL TANK COMP.
$388.39¢194 194
#2
MOLD, FUEL TANK
$6.04¢3 019
#3
DAMPER, PLATE
$1.66¢831
#4
SEAL
$2.13¢1 063
#5
DAMPER, PLATE 1
No Disponible
#6
BRACKET, TANK FITTING
$15.51¢7 756
#7
GROMMET
No Disponible
#8
COLLAR
$5.76¢2 881
#9
WASHER PLAIN
$0.69¢344
#10
BOLT,FLANGE (replaces 90105-06125-00)
$1.75¢875
#11
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
#12
BRACKET, FUEL TANK 1
No Disponible
#13
GROMMET
$1.36¢681
#14
COLLAR
$5.76¢2 881
#15
WASHER PLAIN
$0.69¢344
#16
BOLT,FLANGE (replaces 90105-06125-00)
$1.75¢875
#17
BOLT, FLANGE
$7.43¢3 713
#18
CAP ASSY
$157.03¢78 513
#19
BOLT, HEXAGON SOCKET HEAD
$8.91¢4 456
#20
BOLT
$5.86¢2 931
#21
Grommet
$4.69¢2 344
#22
COVER, TANK | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$31.20¢15 600
#23
GROMMET
$2.95¢1 475
#24
COLLAR
$2.94¢1 469
#25
BOLT, HEX. SOCKET BUTTON
$1.75¢875
#26
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
#27
NUT, SPRING
$1.25¢625
#28
SEAL
$2.11¢1 056
#29
COVER, SIDE 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$71.91¢35 956
#30
GROMMET
$2.95¢1 475
#31
COLLAR
$2.94¢1 469
#32
BOLT, WITH WASHER
$6.38¢3 188
#33
NUT, SPRING
$1.25¢625
#34
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
#35
Grommet
$5.72¢2 863
#36
COVER, SIDE 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$48.54¢24 269
#37
GROMMET
$2.95¢1 475
#38
COLLAR
$2.94¢1 469
#39
Clamp
$6.45¢3 225
#39
BOLT, WITH WASHER
$6.38¢3 188
#40
NUT, SPRING
$1.25¢625
#41
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
#42
Grommet
$5.72¢2 863
#43
SEAL 2
$2.95¢1 475
#44
FUEL PUMP COMP.
$270.89¢135 444
#45
BRACKET, FUEL PUMP
$12.20¢6 100
#46
O-RING
$44.56¢22 281
#47
BOLT
$5.86¢2 931
#48
PIPE, FUEL 1
$78.22¢39 113
#49
PIPE 2
$14.19¢7 094
#50
PIPE 4
$16.00¢8 000
#51
CLIP,SCISSOR
$5.61¢2 806
#52
PIPE, JOINT 1
$16.65¢8 325
#54
PIPE 4
$32.24¢16 119
#55
Clip
$2.97¢1 487
#56
ROLL OVER VALVE ASSY
$89.56¢44 781
#57
CLAMP
$3.15¢1 575
#58
RIVET
$3.02¢1 513
#59
BRACKET, CANISTOR
No Disponible
#60
Clamp
$2.35¢1 175
#61
BOLT, SMALL FLANGE (replaces 9502M-08012-00)
$8.21¢4 106
#62
PIPE 5
$9.59¢4 794
#63
Clip
$2.97¢1 487
#64
CANISTER ASSY
$155.65¢77 825
#65
BAND
$3.71¢1 856
#66
BRACKET, CANISTER
$14.59¢7 294
#67
BRACKET, CANISTER
$13.67¢6 837
#68
BOLT, FLANGE
$7.48¢3 738
#69
RIVET
$6.78¢3 388
#70
PIPE 6
$26.66¢13 331
#71
CLIP
$9.00¢4 500
#72
Clip
$2.97¢1 487
#73
EMBLEM
$10.56¢5 281
#74
LABEL, CAUTION
$7.16¢3 581
