FRONT MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

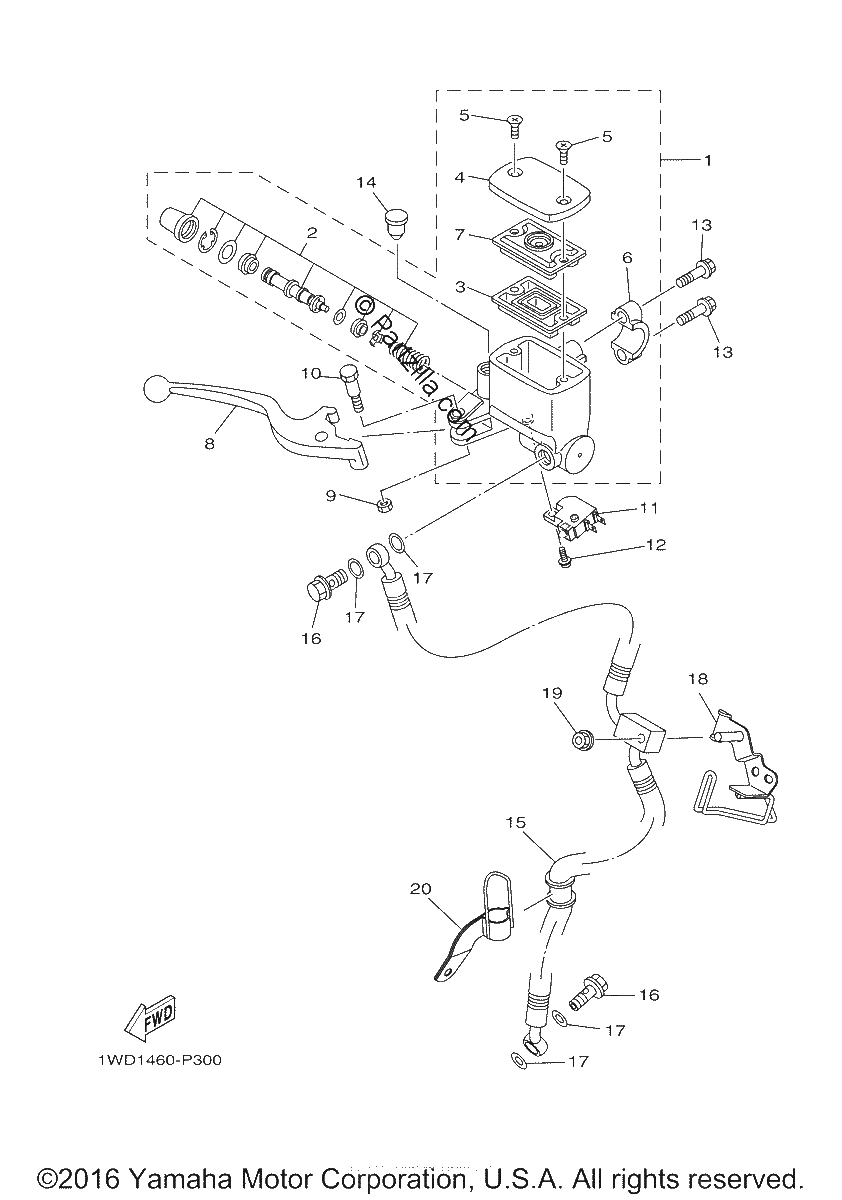

Diagrama de FRONT MASTER CYLINDER

Repuestos

#1
1WD-F5870-00-00
MASTER CYLINDER SUB ASSY
$81.78¢40 888
1
#2
1WD-F5807-00-00
CYLINDER KIT, MASTER
$36.03¢18 015
1
#3
5RB-25854-00-00
DIAPHRAGM, RESERVOIR
$5.65¢2 823
1
#4
1WD-F5852-00-00
CAP, RESERVOIR
$7.04¢3 519
1
#5
98707-04012-00
SCREW, FLAT HEAD
$1.58¢788
1
#6
56A-25867-00-00
BRACKET, MASTER CYLINDER
$27.01¢13 507
1
#7
3C1-F5855-00-00
BUSH, DIAPHRAGM
$0.40¢201
1
#8
1WD-H3922-00-00
LEVER 2
$9.12¢4 560
1
#9
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#10
90109-06577-00
BOLT
$5.90¢2 950
1
#11
1HP-83980-01-00
FRONT STOP SWITCH ASSY
$33.78¢16 888
1
#12
97602-04216-00
SCREW, PAN HEAD WITH
$3.83¢1 915
1
#13
95027-06025-00
BOLT,SMALL FLANGE
$3.47¢1 737
1
#14
90338-09012-00
PLUG
$7.95¢3 973
1
#15
1WD-F5872-00-00
HOSE, BRAKE 1
$44.18¢22 092
1
#16
90401-10159-00
BOLT, UNION
$9.69¢4 847
1
#17
90201-10118-00
WASHER, PLATE
$3.16¢1 581
1
#18
1WD-F5875-00-00
HOLDER, BRAKE HOSE 1
No Disponible
1
#19
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#20
1WD-F5876-00-00
HOLDER, BRAKE HOSE 2
$3.15¢1 576
1
