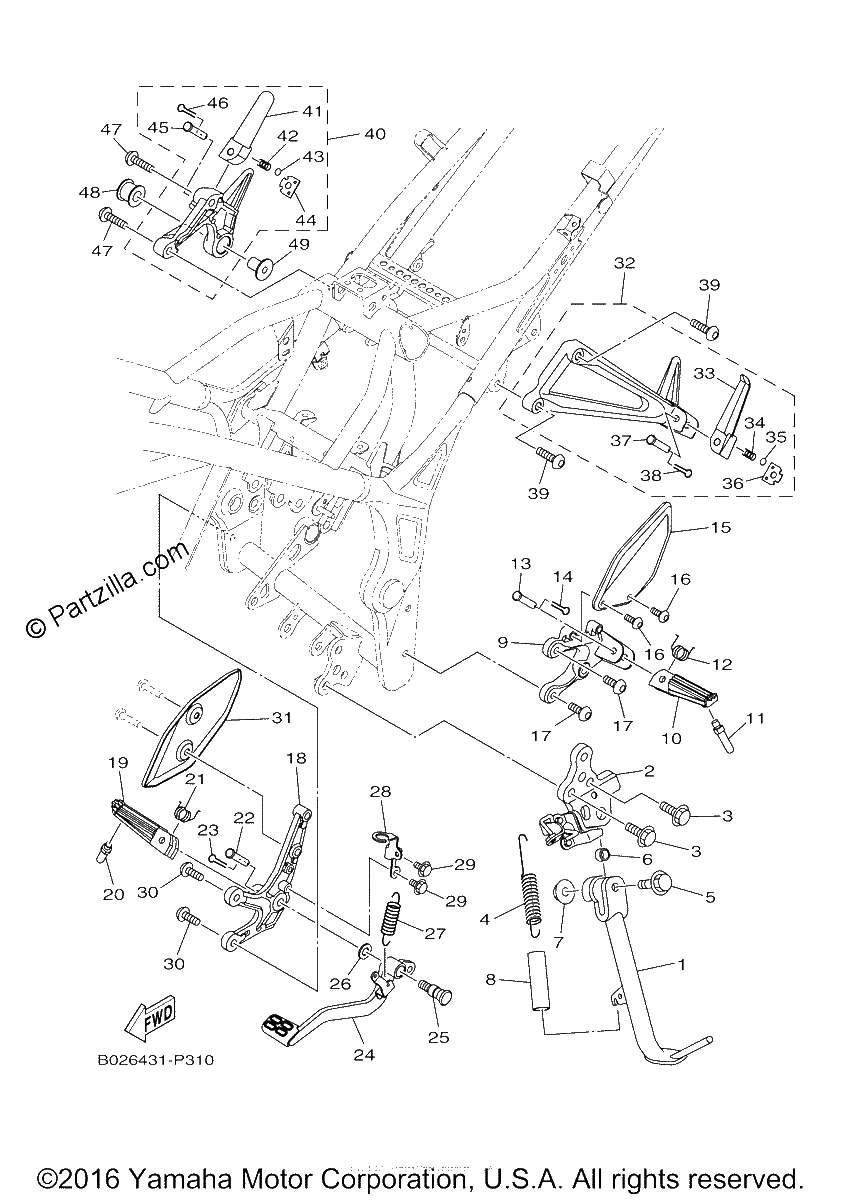

STAND FOOTREST
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
STAND, SIDE
$31.31¢15 657
#2
BRACKET, SIDE STAND
$93.14¢46 569
#3
BOLT, FLANGE
$6.75¢3 375
#4
SPRING, TENSION
$9.99¢4 997
#5
BOLT, FLANGE
$5.28¢2 639
#6
COLLAR
$5.23¢2 616
#7
NUT, U FLANGE
$2.51¢1 254
#8
HOSE (L70)
$7.58¢3 789
#9
BRACKET 2
$28.77¢14 386
#10
FOOTREST
$20.87¢10 436
#11
BOLT
$2.63¢1 317
#12
SPRING, TORSION
$3.04¢1 518
#13
PIN, CLEVIS
$3.44¢1 719
#14
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
#15
PLATE 1
$56.55¢28 273
#16
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
#17
BOLT
$2.08¢1 041
#18
BRACKET 3
$78.29¢39 146
#19
FOOTREST
$16.95¢8 476
#20
BOLT
$2.63¢1 317
#21
SPRING, TORSION
$3.04¢1 518
#22
PIN, CLEVIS
$3.44¢1 719
#23
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
#24
PEDAL, BRAKE
$65.25¢32 625
#25
SHAFT
$13.34¢6 670
#26
WASHER, PLATE
$4.91¢2 455
#27
SPRING, TENSION
$4.25¢2 128
#28
STAY, STOP SWITCH
$3.48¢1 742
#29
BOLT,FLANGE (replaces 95827-06010-00)
$4.28¢2 139
#30
BOLT
$2.08¢1 041
#31
PLATE 2
$28.70¢14 352
#32
REAR FOOTREST ASSY 1
$63.47¢31 734
#33
FOOTREST, REAR 1
$20.37¢10 183
#34
SPRING, COMPRESSION
$3.51¢1 754
#35
BALL
$6.87¢3 433
#36
WASHER, SPECIAL
$1.01¢506
#37
PIN, CLEVIS
$3.44¢1 719
#38
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
#39
BOLT, HEXAGON SOCKET HEAD
$7.67¢3 835
#40
REAR FOOTREST ASSY 2
$82.36¢41 182
#41
FOOTREST, REAR 2
$12.94¢6 469
#42
SPRING, COMPRESSION
$3.51¢1 754
#43
BALL
$6.87¢3 433
#44
WASHER, SPECIAL
$1.01¢506
#45
PIN, CLEVIS
$3.44¢1 719
#46
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
#47
BOLT, HEXAGON SOCKET HEAD
$7.67¢3 835
#48
DAMPER, FOOTREST 2
$13.94¢6 969
#49
COLLAR
$6.06¢3 030
