FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

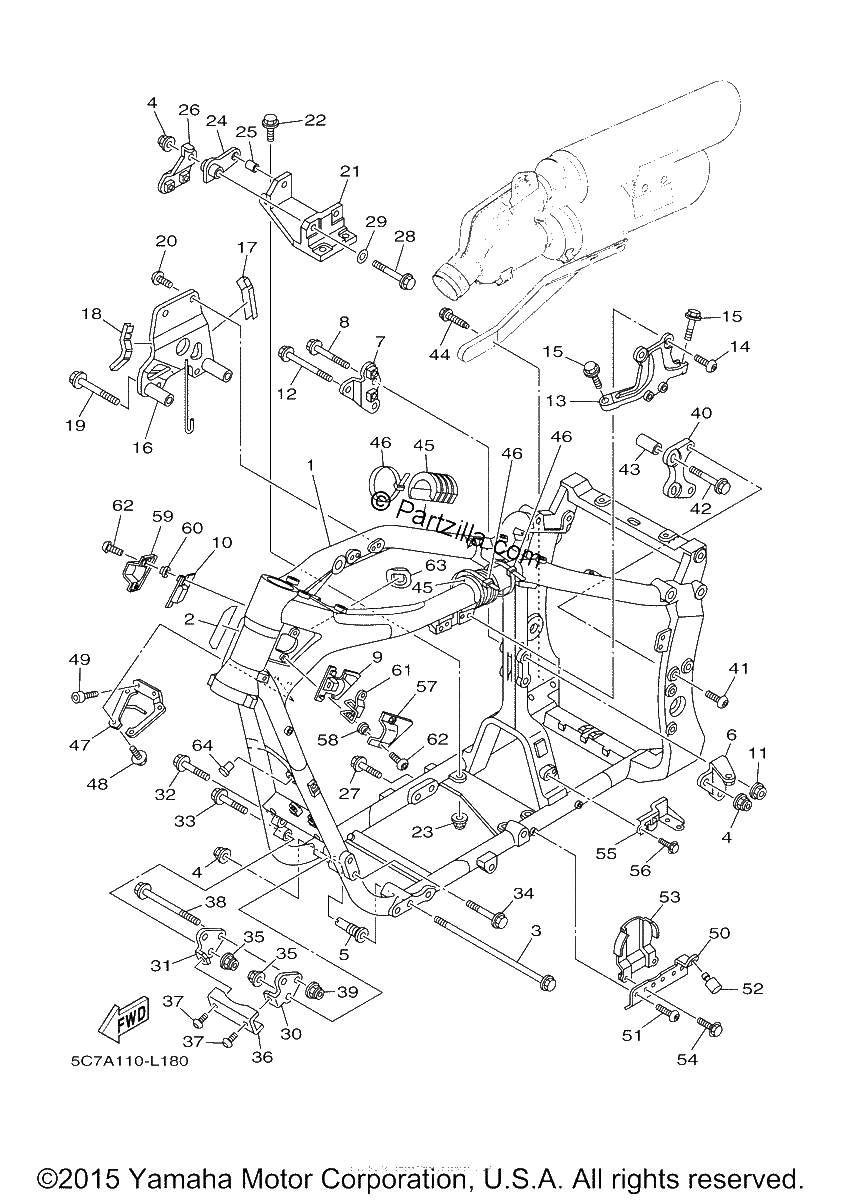

Diagrama de FRAME

Repuestos

#1
5C7-21110-01-00
FRAME COMP.
$4929.99¢2 464 994
1
#2
1D7-24141-00-00
PROTECTOR, FUEL TANK
$10.34¢5 169
1
#3
90105-126A6-00
BOLT, FLANGE
$22.83¢11 413
1
#4
95602-12200-00
NUT, SELF-LOCKING
$4.55¢2 275
1
#5
5PX-21495-01-00
BOLT, ENGINE ADJUSTING
$36.74¢18 369
1
#6
1D7-21315-00-00
STAY, ENGINE 1
$34.81¢17 406
1
#7
5PX-21316-00-00
STAY, ENGINE 2
$17.99¢8 994
1
#8
90105-10737-00
BOLT, FLANGE
$12.09¢6 044
1
#9
5C7-2112C-00-00
DAMPER 2
$17.44¢8 719
1
#10
5C7-2112D-00-00
DAMPER 3
$17.44¢8 719
1
#11
95602-10200-00
NUT, U FLANGE
$2.73¢1 363
1
#12
90105-12689-00
BOLT, FLANGE
No Disponible
1
#13
5C7-21317-00-00
STAY, ENGINE 3
$203.98¢101 988
1
#14
90111-10003-00
BOLT,HEX. SOCKET BUTTON
$7.34¢3 669
1
#15
90105-12018-00
BOLT, FLANGE
$11.95¢5 975
1
#16
5C7-21319-10-00
STAY, ENGINE 6
$246.15¢123 075
1
#17
1D7-21669-00-00
SEAL
$9.15¢4 575
1
#18
5C7-21268-00-00
SEAL
$9.53¢4 763
1
#19
90105-12067-00
BOLT, FLANGE
$10.08¢5 038
1
#20
90111-10030-00
BOLT,HEX. SOCKET BUTTON
$4.46¢2 231
1
#21
1D7-21318-01-00
STAY, ENGINE 4
$342.48¢171 238
1
#22
95817-10030-00
BOLT,FLANGE (replaces 95827-10030-00)
$7.34¢3 669
1
#23
95602-10200-00
NUT, U FLANGE
$2.73¢1 363
1
#24
1D7-2142G-00-00
STAY 1
$42.69¢21 344
1
#25
90387-12033-00
COLLAR
$7.76¢3 881
1
#26
1D7-21387-00-00
STAY, ENGINE 7
$21.76¢10 881
1
#27
95817-10045-00
BOLT, FLANGE
$5.40¢2 700
1
#28
90101-12025-00
BOLT
$14.82¢7 413
1
#29
90201-12045-00
WASHER, PLATE
$6.14¢3 069
1
#30
1D7-2142H-01-00
STAY 2
No Disponible
1
#31
1D7-2142J-01-00
STAY 3
No Disponible
1
#32
90105-10049-00
BOLT, FLANGE
$7.95¢3 975
1
#33
90105-10060-00
BOLT, FLANGE
$6.72¢3 363
1
#34
90105-10167-00
BOLT, FLANGE
$9.38¢4 688
1
#35
90185-10008-00
NUT, SELF-LOCKING
$6.81¢3 406
1
#36
1D7-2115L-00-00
BRACKET, MEMBER 1
$26.69¢13 344
1
#37
92014-08020-00
BOLT, BUTTON HEAD
$7.94¢3 969
1
#38
90105-12016-00
BOLT, FLANGE
$13.86¢6 931
1
#39
5C7-2317L-00-00
COVER, HORN
$71.69¢35 844
1
#39
90185-12002-00
NUT, SELF-LOCKING
$11.96¢5 981
1
#40
1D7-2137F-00-00
STAY 1
$52.09¢26 044
1
#41
90111-10009-00
BOLT,HEX. SOCKET BUTTON
$6.61¢3 306
1
#42
90105-10447-00
BOLT, FLANGE
$4.66¢2 331
1
#43
1D7-21116-01-00
COLLAR
$10.56¢5 281
1
#44
90105-10166-00
BOLT, FLANGE
$8.38¢4 188
1
#45
5C7-24183-00-00
DAMPER, LOCATING 3
$14.59¢7 294
1
#46
90464-80002-00
CLAMP
$6.14¢3 069
1
#47
5C7-2116A-00-00
STAY 1
$66.47¢33 238
1
#48
95027-06014-00
BOLT, FLANGE
$0.91¢456
1
#49
91317-06020-00
BOLT (4FL)
$2.60¢1 300
1
#50
5C7-21343-00-00
BRACKET, HORN
$125.36¢62 681
1
#51
90111-08002-00
BOLT, HEX. SOCKET BUTTON
$8.64¢4 319
1
#52
1D7-27114-00-00
STOPPER, MAIN STAND
$6.36¢3 181
1
#54
95027-06012-00
BOLT, FLANGE
$3.89¢1 944
1
#55
5C7-21453-00-00
BRACKET, SWITCH
$23.56¢11 781
1
#56
95022-06016-00
BOLT, FLANGE
$3.96¢1 981
1
#57
5C7-2171E-00-00
COVER, SIDE 5
$14.65¢7 325
1
#58
90387-06210-00
COLLAR
$7.56¢3 781
1
#59
5C7-2171X-00-00
COVER, SIDE 6
$20.81¢10 406
1
#60
90387-06192-00
COLLAR
$5.76¢2 881
1
#61
5C7-2171H-00-00
GUIDE
$37.33¢18 663
1
#62
92017-06016-00
BLT,BTTN HD (replaces 90111-06007-00)
$7.34¢3 669
1
#63
5C7-21773-00-00
GROMMET
$12.79¢6 394
1
#64
90338-16148-00
PLUG,SPEC'L SHAPE
$11.81¢5 906
1
