SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

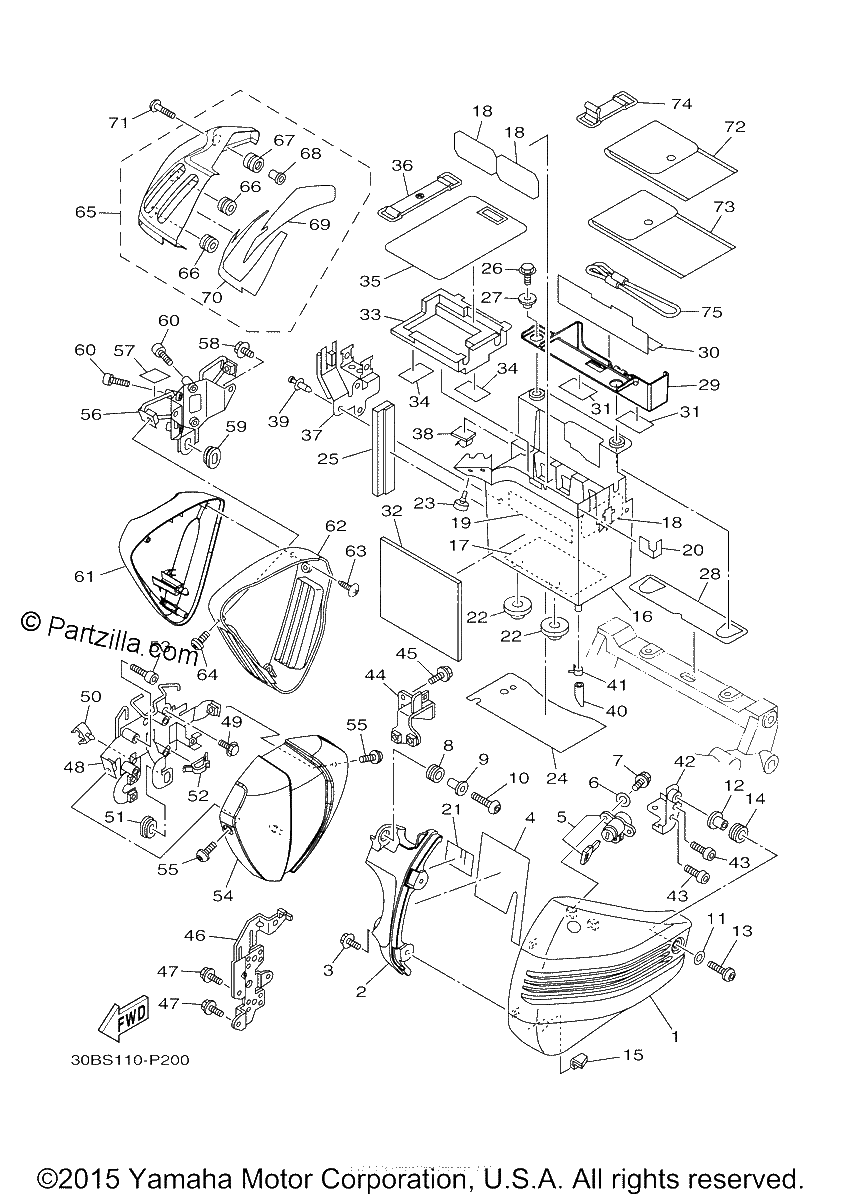

Diagrama de SIDE COVER

Repuestos

#1
1D7-21711-00-P6
COVER, SIDE 1 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$248.89¢124 444
1
#2
1D7-2117X-00-00
COVER 9
$22.05¢11 025
1
#3
95817-06014-00
BOLT, FLANGE (replaces 95802-06014-00)
$2.65¢1 325
1
#4
1D7-21746-00-00
DAMPER
$31.27¢15 638
1
#5
5PX-W2470-00-00
ROTOR SET
$148.15¢74 075
1
#6
90201-06034-00
WASHER, PLATE
$7.75¢3 875
1
#7
95024-06016-00
BOLT, WASHER BASED
$7.94¢3 969
1
#8
90480-14329-00
GROMMET
$7.94¢3 969
1
#9
90387-066Y6-00
COLLAR
$8.31¢4 156
1
#10
92014-06020-00
BOLT, BUTTON HEAD
$8.24¢4 119
1
#11
90201-06M01-00
WASHER, PLATE
$7.79¢3 894
1
#12
90560-06201-00
SPACER
$14.52¢7 262
1
#13
90149-06023-00
SCREW
$5.50¢2 750
1
#14
90480-12007-00
GROMMET
$7.43¢3 713
1
#15
5PX-2171H-00-00
GUIDE
$10.99¢5 494
1
#16
1D7-2177G-02-00
BOX, BATTERY
No Disponible
1
#17
5C7-21779-00-00
DAMPER, LOCATING 2
$4.45¢2 225
1
#18
5PX-21652-00-00
PROTECTOR
$9.19¢4 594
1
#19
5PX-21778-00-00
DAMPER, LOCATING 1
$2.71¢1 356
1
#20
5C7-2173N-00-00
SEAL 4
$6.55¢3 275
1
#21
5C7-21735-00-00
SEAL 2
$3.83¢1 913
1
#22
90480-20384-00
GROMMET
$5.17¢2 588
1
#23
1D7-2174X-00-00
DAMPER
$6.63¢3 313
1
#24
1D7-2177N-01-00
DAMPER, LOCATING 4
$30.36¢15 181
1
#25
1D7-21778-00-00
DAMPER, LOCATING 1
$40.32¢20 162
1
#26
95022-06020-00
BOLT, FLANGE
$3.96¢1 981
1
#27
90387-06267-00
COLLAR
$6.44¢3 219
1
#28
5C7-21747-00-00
DAMPER
$21.51¢10 756
1
#29
5C7-28173-00-00
BOX, TOOL
$44.07¢22 037
1
#30
5C7-2174Y-00-00
DAMPER
$3.86¢1 931
1
#31
5H0-8235Y-M0-00
DAMPER
$7.70¢3 850
1
#32
1D7-21732-00-00
SEAL 1
$22.68¢11 338
1
#33
5PX-82129-00-00
COVER, BATTERY
$33.50¢16 750
1
#34
5JW-2139X-00-00
DAMPER
$3.73¢1 863
1
#35
5VN-8412H-00-00
STAY SETTING
$25.85¢12 925
1
#36
7H3-82131-00-00
BAND,BATTERY (replaces 18G-82131-00-00)
$19.11¢9 556
1
#37
1D7-2172K-00-00
BRACKET 1
$26.88¢13 438
1
#38
90464-25160-00
CLAMP
$11.97¢5 988
1
#39
90269-07077-00
RIVET
$8.25¢4 125
1
#39
90110-06114-00
BOLT, HEXAGON SOCKET HEAD
$8.39¢4 194
1
#40
90445-11027-00
HOSE
$0.93¢463
1
#41
90467-10135-00
CLIP
$8.24¢4 119
1
#42
1D7-2175T-00-00
BRACKET 1
$30.72¢15 362
1
#43
92012-06016-00
BOLT, BUTTON HEAD
$7.41¢3 706
1
#44
5C7-2172N-01-00
BRACKET 4
$52.06¢26 031
1
#45
95817-06014-00
BOLT, FLANGE (replaces 95802-06014-00)
$2.65¢1 325
1
#46
5PX-2174E-01-00
STAY, SIDE COVER 2
$32.27¢16 138
1
#47
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
#48
5C7-2175V-00-00
BRACKET 3
$316.88¢158 438
1
#49
95817-08035-00
BOLT,FLANGE (replaces 90105-08108-00)
$7.94¢3 969
1
#50
90464-09130-00
CLAMP
$1.56¢781
1
#51
90480-01558-00
Grommet
$4.69¢2 344
1
#52
90464-14001-00
CLAMP
$5.84¢2 919
1
#54
5C7-21731-10-00
COVER, SIDE 3
$215.26¢107 631
1
#55
90149-06302-00
SCREW
$5.11¢2 556
1
#56
1D7-2175W-00-00
BRACKET 4
$130.65¢65 325
1
#57
5C7-2173M-00-00
SEAL 3
$4.51¢2 256
1
#58
95022-06010-00
BOLT, FLANGE
$6.49¢3 244
1
#59
90480-01558-00
Grommet
$4.69¢2 344
1
#60
90110-06114-00
BOLT, HEXAGON SOCKET HEAD
$8.39¢4 194
1
#61
5C7-21741-10-00
COVER, SIDE 4
$202.91¢101 456
1
#62
1D7-2171D-00-00
BODY
$44.07¢22 037
1
#63
90167-05077-00
SCREW, TAPPING
$2.86¢1 431
1
#64
90149-06302-00
SCREW
$5.11¢2 556
1
#65
5C7-17471-00-P6
PLATE, COVER | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$351.97¢175 987
1
#66
90480-13007-00
GROMMET
$5.44¢2 719
1
#67
90480-13006-00
GROMMET
No Disponible
1
#68
90387-07007-00
COLLAR
$7.43¢3 713
1
#69
5C7-15379-00-00
SEAL, CRANKCASE
$25.69¢12 844
1
#70
5C7-15663-00-00
SEAL
$21.80¢10 900
1
#71
90110-06202-00
BOLT, HEXAGON SOCKET HEAD
$6.76¢3 381
1
#72
5C7-28100-00-00
TOOL KIT
$68.03¢34 013
1
#73
5C7-28110-00-00
TOOL KIT, 2
$43.45¢21 725
1
#74
3TJ-82131-00-00
BAND, BATTERY
$23.89¢11 944
1
#75
4HC-21398-00-00
HANGER, HELMET
$34.74¢17 369
1
