CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

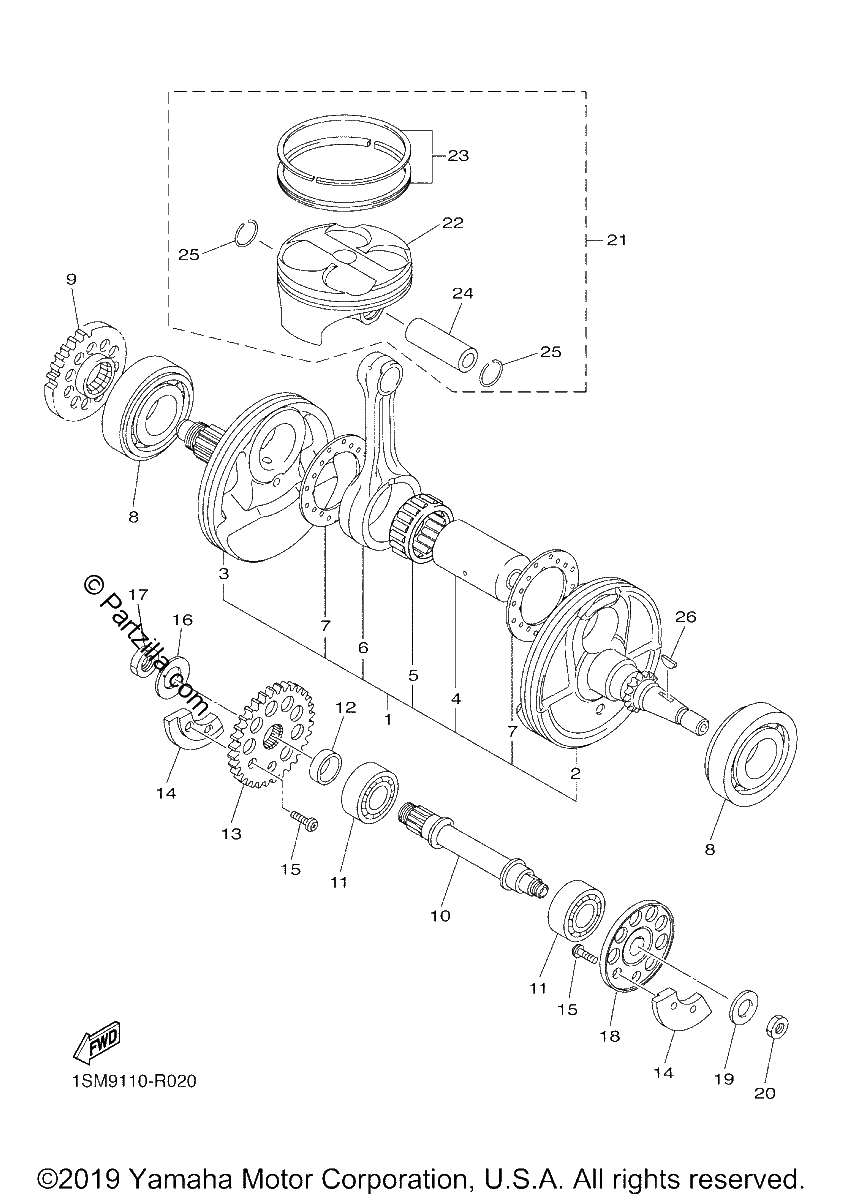

Diagrama de CRANKSHAFT PISTON

Repuestos

#1
1SM-11400-20-00
Crankshaft Assy
$640.92¢320 459
1
#2
1SM-11412-20-00
CRANK 1
$225.17¢112 585
1
#3
1SM-11422-20-00
CRANK 2
$247.92¢123 959
1
#4
1SM-11681-00-00
PIN, CRANK 1
$63.50¢31 751
1
#5
93310-63097-00
BEARING (replaces 93310-63096-00)
$100.83¢50 416
1
#6
2GB-11651-01-00
ROD, CONNECTING
$124.03¢62 014
1
#7
90209-30008-00
WASHER
$37.40¢18 699
1
#8
93306-20648-00
BEARING
$87.00¢43 499
1
#9
1SM-11536-10-00
GEAR, DRIVE
$117.07¢58 535
1
#10
1SM-11455-00-00
SHAFT 1
$173.86¢86 929
1
#11
93306-20351-00
BEARING
$37.40¢18 699
1
#12
90387-175R2-00
COLLAR (1YW)
$11.34¢5 669
1
#13
1SM-11531-00-00
GEAR, BALANCE WEIGHT
$122.00¢61 002
1
#14
1SM-11454-10-00
WEIGHT 1
$48.02¢24 012
1
#15
90149-06084-00
SCREW | FOR CALIFORNIA
$7.04¢3 519
1
#16
90208-14033-00
WASHER, CONICAL SPRING
$3.32¢1 662
1
#17
90170-14171-00
NUT
$7.95¢3 973
1
#18
1SM-1145A-00-00
WEIGHT 3
$62.80¢31 401
1
#19
90208-10001-00
WASHER, CONICAL SPRING
$1.56¢782
1
#20
90170-10405-00
NUT
$6.88¢3 439
1
#21
1SM-116A0-10-00
Piston Assy
$133.99¢66 993
1
#22
1SM-11631-10-00
PISTON (Std)
$133.70¢66 849
1
#23
1SM-11603-00-00
Piston Ring Set (STD)
$39.15¢19 573
1
#24
1SM-11633-10-00
Pin, Piston
$43.49¢21 746
1
#25
93450-17129-00
CIRCLIP,INNER
$3.19¢1 593
1
#26
90280-03006-00
KEY, WOODRUFF
$7.44¢3 720
1
