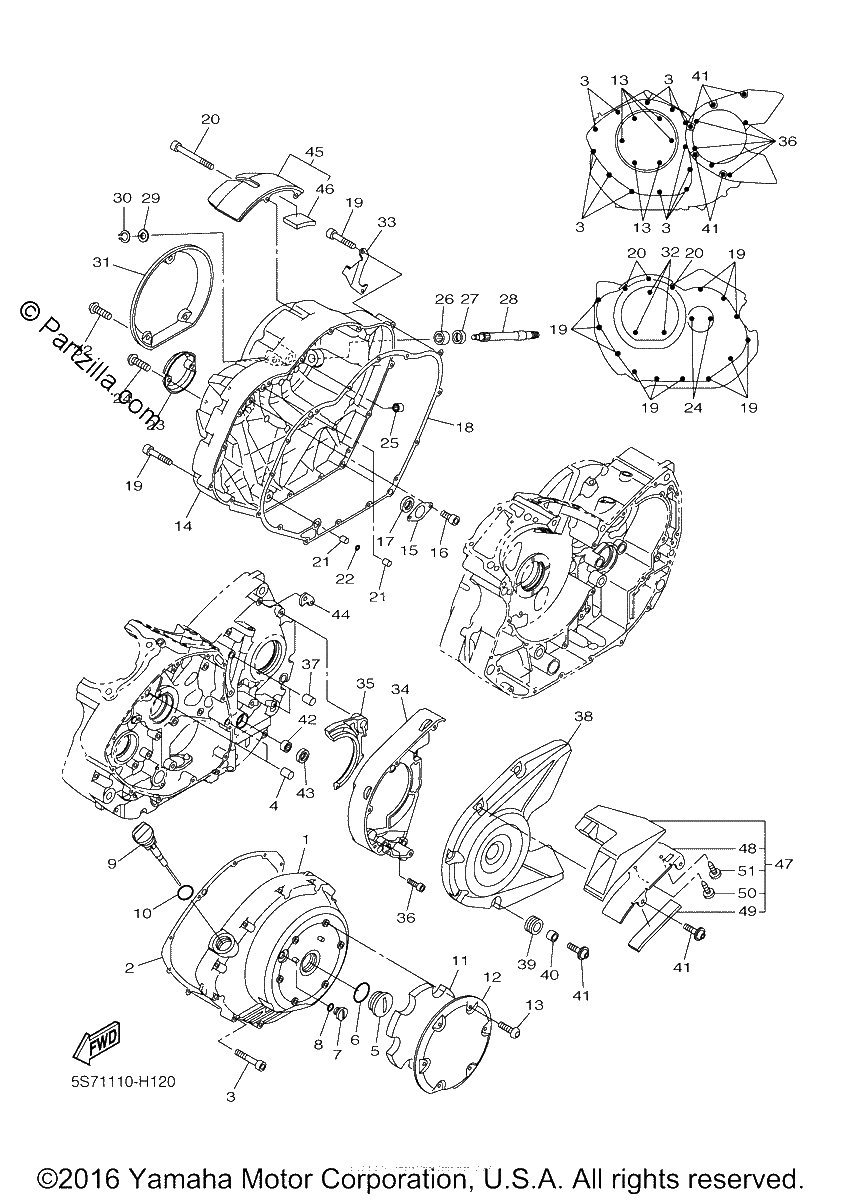

CRANKCASE COVER 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COVER, CRANKCASE 1
$371.50¢185 750
#2
GASKET, CRANKCASE COVER 1
$18.93¢9 463
#3
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
#4
PIN, DOWEL
$6.25¢3 125
#5
PLUG, STRAIGHT SCREW
$14.69¢7 344
#6
O-RING
$0.59¢294
#7
PLUG, STRAIGHT SCREW
$13.83¢6 913
#8
O-Ring
$6.91¢3 456
#9
PLUG, OIL LEVEL
$31.76¢15 881
#10
O-RING
$8.21¢4 106
#11
DAMPER 1
$22.76¢11 381
#12
COVER
$112.54¢56 269
#13
BOLT, BUTTON HEAD
$3.15¢1 575
#14
COVER, CRANKCASE 2
$569.11¢284 556
#15
PLATE, BEARING COVER
$2.40¢1 200
#16
BOLT
$7.34¢3 669
#17
OIL SEAL
$13.11¢6 556
#18
GASKET, CRANKCASE COVER 2
$36.46¢18 231
#19
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
#20
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
#21
PIN, DOWEL
$6.25¢3 125
#22
O-RING
$5.60¢2 800
#23
COVER 2
$54.31¢27 156
#24
BOLT, BUTTON HEAD
$3.15¢1 575
#25
BEARING
$23.80¢11 900
#26
BEARING
$37.81¢18 906
#27
OIL SEAL
$8.73¢4 363
#28
AXLE, PUSH LEVER
$90.36¢45 181
#29
WASHER, PLATE
$2.76¢1 381
#30
CIRCLIP
$3.60¢1 800
#31
COVER, 1
$301.99¢150 994
#32
BOLT, BUTTON HEAD
$3.15¢1 575
#33
HOLDER, CLUTCH CABLE
$19.31¢9 656
#34
STAY, CRANKCASE COVER 1
$238.61¢119 306
#35
DAMPER 4
$16.70¢8 350
#36
BOLT
$6.67¢3 338
#37
PIN, DOWEL
$5.25¢2 625
#38
COVER, OIL PUMP 2
$117.35¢58 675
#39
GROMMET
$7.71¢3 856
#40
COLLAR
$8.22¢4 113
#41
BOLT, HEX. SOCKET BUTTON
$4.49¢2 244
#42
BEARING
$24.40¢12 200
#43
OIL SEAL, SD-TYPE
$12.06¢6 031
#44
STAY 1
$4.86¢2 431
#45
PROTECTOR, COVER
$137.35¢68 675
#46
DAMPER
$5.10¢2 550
#47
AIR DUCT ASSY
$63.83¢31 913
#48
PLATE
$23.64¢11 819
#49
DAMPER 1
$13.65¢6 825
#50
SCREW, TAPPING
$7.39¢3 694
#51
SCREW, TAPPING
$2.94¢1 469
