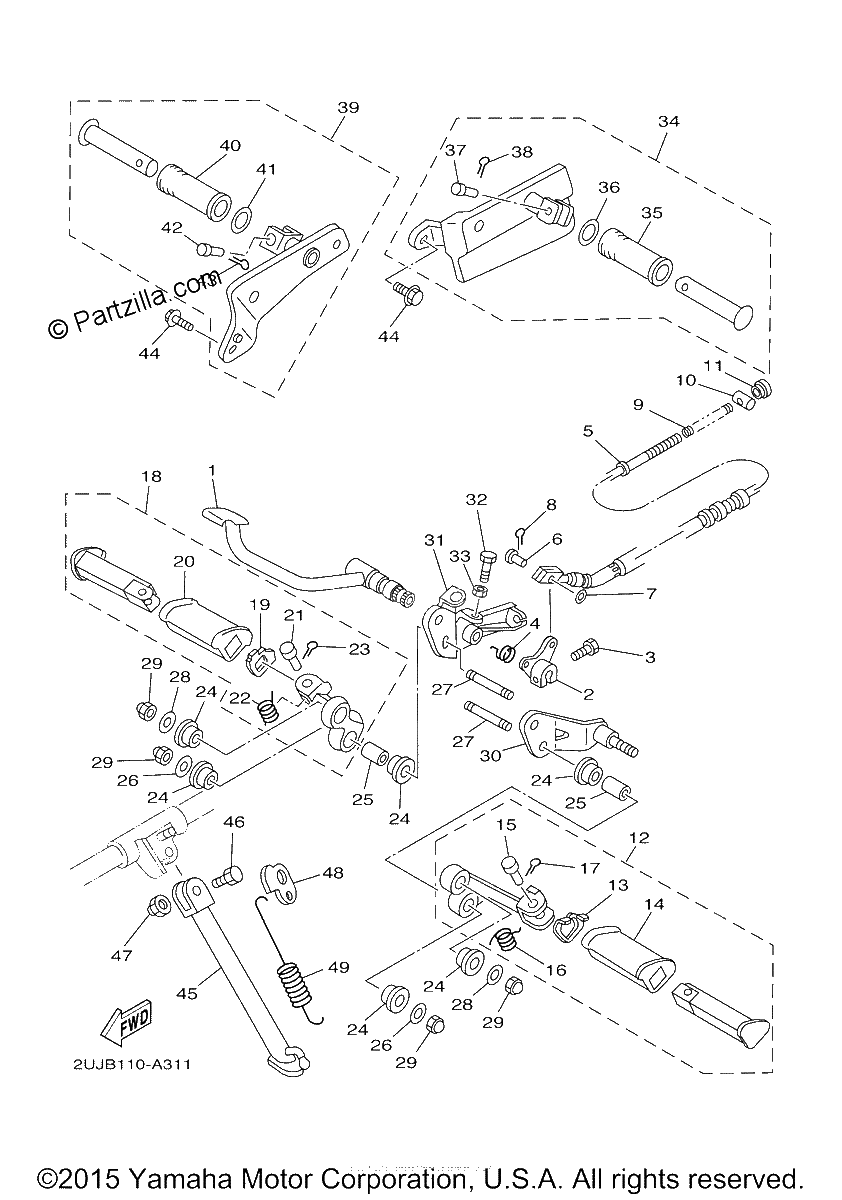

STAND FOOTREST
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
PEDAL, BRAKE
$107.01¢53 504
#2
LEVER
$16.26¢8 131
#3
BOLT
$6.75¢3 375
#4
SPRING, RETURN
$7.03¢3 513
#5
CABLE, BRAKE
$134.61¢67 304
#6
PIN,CLEVIS (replaces 91702-06018-00)
$4.91¢2 455
#7
WASHER
$6.76¢3 381
#8
PIN, COTTER
$2.02¢1 012
#9
SPRING, COMPRESSION
$6.75¢3 375
#10
PIN
$6.75¢3 375
#11
NUT
$5.75¢2 875
#12
FRONT FOOTREST ASSY (LEFT)
$190.09¢95 048
#13
WASHER, FOOTREST
$4.23¢2 116
#14
COVER, FOOTREST
$28.30¢14 151
#15
PIN
$4.28¢2 139
#16
SPRING, TORSION
$3.58¢1 788
#17
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
#18
FRONT FOOTREST ASSY (RIGHT)
$110.74¢55 372
#19
WASHER, FOOTREST
$4.23¢2 116
#20
COVER, FOOTREST
$28.30¢14 151
#21
PIN
$4.28¢2 139
#22
SPRING, TORSION
$3.58¢1 788
#23
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
#24
DAMPER, FOOTREST
$9.41¢4 703
#25
COLLAR
$1.79¢897
#26
WASHER, PLATE
$7.35¢3 674
#27
BOLT, STUD
$2.77¢1 386
#28
WASHER, PLATE
$7.35¢3 674
#29
NUT
$15.87¢7 935
#30
BRACKET 4 | YB
$70.99¢35 495
#31
BRACKET 5 | YB
$224.79¢112 395
#32
SCREW, HEXAGON
$6.52¢3 260
#33
NUT(JN5)
$7.31¢3 657
#34
REAR FOOTREST ASSY 1 | SL
$85.30¢42 648
#35
COVER, REAR FOOTREST
$8.26¢4 129
#36
WASHER, PLATE
$7.58¢3 789
#37
PIN
$7.51¢3 755
#38
PIN, COTTER
$2.02¢1 012
#39
REAR FOOTREST ASSY 2 | SL
$84.02¢42 009
#40
COVER, REAR FOOTREST
$8.26¢4 129
#41
WASHER, PLATE
$7.58¢3 789
#42
PIN
$7.51¢3 755
#43
PIN, COTTER
$2.02¢1 012
#44
BOLT,FLANGE (2UJ)
$7.30¢3 651
#45
STAND, SIDE
$90.98¢45 488
#46
BOLT
$9.20¢4 600
#47
NUT,SELF-LOCKING
$7.30¢3 651
#48
LINK, SIDE STAND
$8.10¢4 048
#49
SPRING, SIDE STAND
$26.59¢13 294
