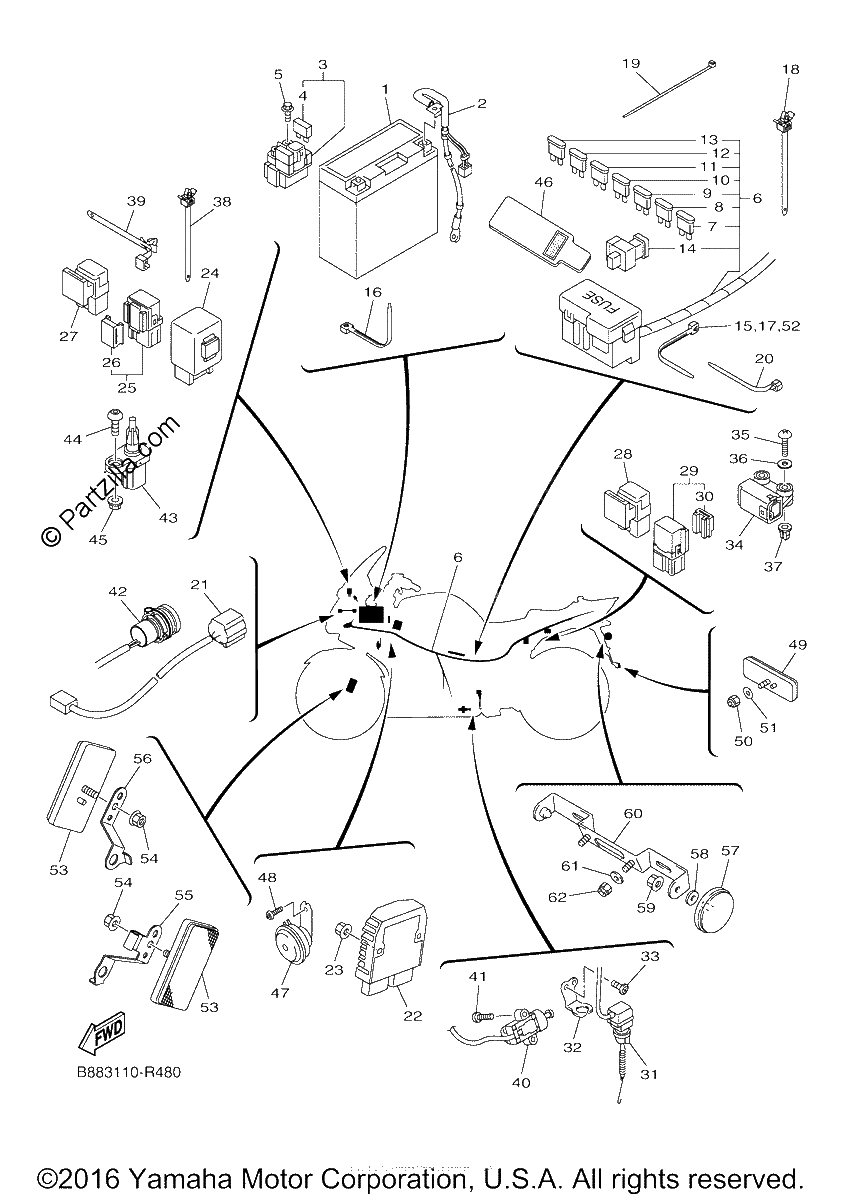

Diagrama de ELECTRICAL 2

Repuestos

#1
GT1-4B400-00-00
GT14B4 GS BATTERY -
$160.62¢80 310
1
#2
1MC-82116-00-00
WIRE, MINUS LEAD
$41.94¢20 970
1
#3
3D7-81940-00-00
STARTER RELAY ASSY
$93.09¢46 546
1
#4
1AE-82151-00-00
FUSE (30A-BL)
$6.82¢3 410
1
#5
95022-06008-00
BOLT, FLANGE
$6.87¢3 433
1
#6
B88-82590-10-00
WIRE HARNESS ASSY
$1284.54¢642 269
1
#7
67F-82151-30-00
FUSE (3A)
$5.51¢2 754
1
#8
5JJ-82151-00-00
FUSE (7.5A-BL)
$6.51¢3 254
1
#9
67F-82151-40-00
FUSE (10A)
$7.13¢3 565
1
#10
67F-82151-50-00
FUSE (15A)
$4.08¢2 041
1
#11
5JJ-82151-20-00
FUSE (20A-BL)
$7.01¢3 507
1
#12
5JJ-82151-60-00
FUSE (30A-BL)
$7.01¢3 507
1
#13
1MC-82151-00-00
FUSE (1A-BL)
$3.58¢1 788
1
#14
5JW-82151-10-00
FUSE (50A)
$15.65¢7 826
1
#15
1UA-82591-00-00
BAND
$4.52¢2 260
1
#16
90465-10098-00
CLAMP
$2.55¢1 277
1
#17
1UA-82591-00-00
BAND
$4.52¢2 260
1
#18
90464-10112-00
CLAMP
$6.76¢3 381
1
#19
5Y9-12491-00-00
CLAMP 1
$7.23¢3 617
1
#20
90464-15195-00
CLAMP
$3.04¢1 518
1
#21
1MC-82509-00-00
WIRE, SUB LEAD
$16.36¢8 182
1
#22
1D7-81960-01-00
RECTIFIER REGULATOR ASSY
$308.43¢154 215
1
#23
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.58¢1 288
1
#24
5VK-81950-30-00
RELAY ASSY (5VK-30)
$58.82¢29 411
1
#25
1ST-81950-00-00
RELAY ASSY (1ST-00)
$16.38¢8 188
1
#26
5JJ-81952-00-00
HOLDER, RELAY
$8.71¢4 353
1
#27
5DM-81950-00-00
RELAY ASSY (G8HN-1C4T-DJ-Y52)
$27.11¢13 553
1
#28
5DM-81950-00-00
RELAY ASSY (G8HN-1C4T-DJ-Y52)
$27.11¢13 553
1
#29
1TP-81950-00-00
RELAY ASSY (1TP-00)
$14.34¢7 170
1
#30
5EA-81952-00-00
HOLDER, RELAY
$7.38¢3 691
1
#31
1MC-82530-01-00
STOP SWITCH ASSY
$63.27¢31 636
1
#32
1MC-2144G-00-00
STAY, STOP SWITCH
$5.01¢2 507
1
#33
98902-05008-00
SCREW, BIND
$1.35¢673
1
#34
5PS-82576-01-00
SENSOR, LEAN ANGLE
$87.63¢43 815
1
#35
97702-40025-00
SCREW, TAPPING
$0.28¢138
1
#36
90201-04030-00
WASHER, PLATE
$1.66¢828
1
#37
4B4-84334-00-00
NUT, ADJUSTING
$4.57¢2 283
1
#38
90464-10112-00
CLAMP
$6.76¢3 381
1
#39
90464-20213-00
CLAMP
$3.90¢1 949
1
#39
11H-85110-01-00
REFLECTOR ASSY
$22.93¢11 466
1
#40
1MC-82566-00-00
SWITCH, SIDE STAND
$106.54¢53 268
1
#41
98507-05016-00
SCREW, PAN HEAD
$1.54¢771
1
#42
3P6-8254B-00-00
TERMINAL COMP.
$87.30¢43 648
1
#43
5YU-85886-00-00
SENSOR, AIR TEMPERATURE
$32.97¢16 485
1
#44
92012-05014-00
BOLT, BUTTON HEAD
$6.88¢3 439
1
#45
95702-05500-00
NUT,FLANGE (SILVER)
$0.84¢420
1
#46
2D1-82589-00-00
PROTECTER, WIRE HARNESS
$10.63¢5 313
1
#47
B88-83371-00-00
HORN
$47.55¢23 776
1
#48
92012-06010-00
BOLT, BUTTON HEAD
$2.68¢1 340
1
#49
3Y6-85130-02-00
Rear Reflector
$24.91¢12 455
1
#50
95617-05100-00
NUT, U
$7.30¢3 651
1
#51
90201-05043-00
WASHER, PLATE
$5.96¢2 978
1
#52
1UA-82591-00-00
BAND
$4.52¢2 260
1
#54
95702-05500-00
NUT,FLANGE (SILVER)
$0.84¢420
1
#55
3P6-85112-10-00
BRACKET, REFLECTOR 1
$53.35¢26 674
1
#56
3P6-85122-00-00
BRACKET, REFLECTOR 2
$14.31¢7 153
1
#57
449-85131-02-00
REFLECTOR, REAR 1
$28.22¢14 110
1
#58
90201-061A5-00
WASHER, PLATE
$6.43¢3 214
1
#59
95702-05500-00
NUT,FLANGE (SILVER)
$0.84¢420
1
#60
B88-84751-00-00
BRACKET, LICENSE
$19.86¢9 930
1
#61
90201-06380-00
WASHER PLAIN
$0.63¢316
1
#62
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
