CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

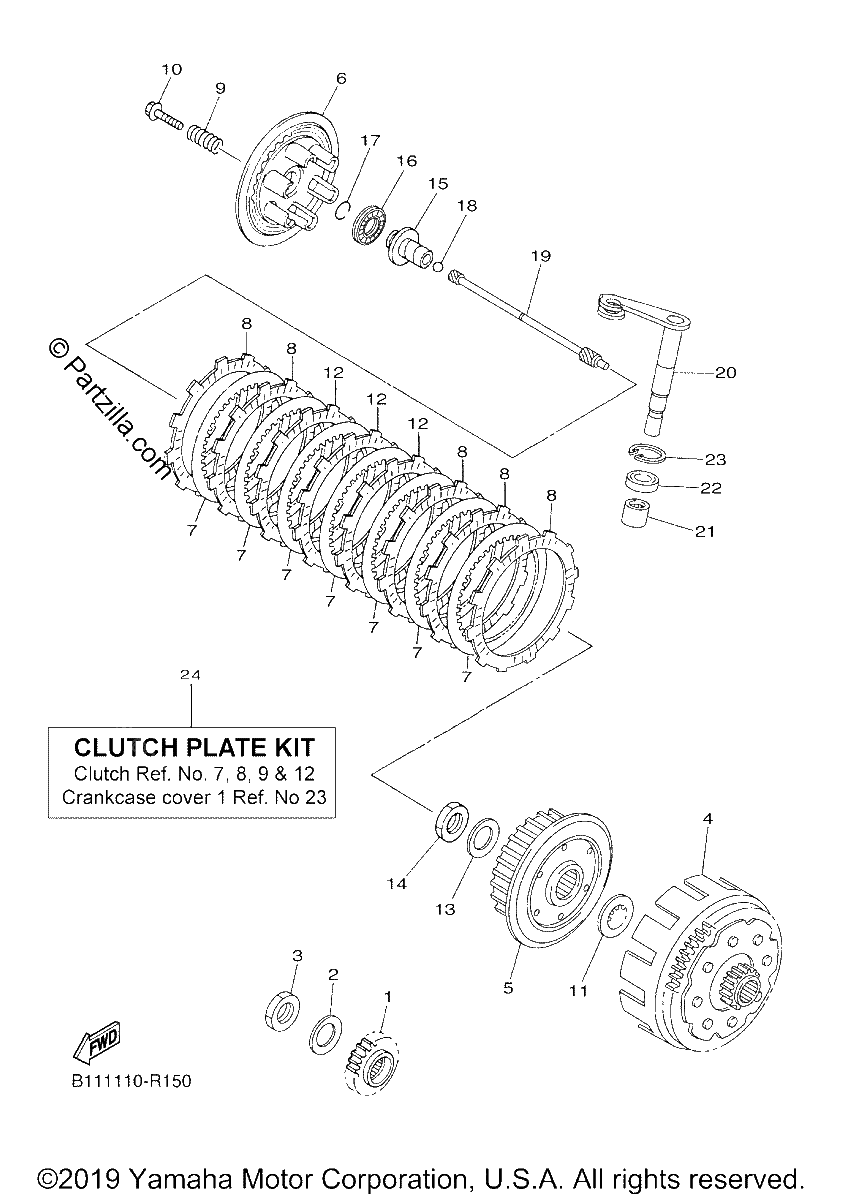

Diagrama de CLUTCH

Repuestos

#1
2S2-16111-60-00
GEAR, PRIMARY DRIVE
$174.34¢87 169
1
#2
90208-20008-00
WASHER,CONICAL SPR
$8.24¢4 119
1
#3
90170-20255-00
NUT,HEXAGON
$10.46¢5 231
1
#4
B11-16150-00-00
PRIMARY DRIVEN GEAR COMP.
$625.56¢312 781
1
#5
5TA-16371-20-00
BOSS, CLUTCH
$147.43¢73 713
1
#6
2S2-16351-01-00
PLATE, PRESSURE 1
$98.20¢49 100
1
#7
BR9-16324-00-00
PLATE, CLUTCH 1 (replaces 4B1-16324-00-00)
$11.13¢5 563
1
#8
5TA-16321-00-00
PLATE, FRICTION
$27.41¢13 706
1
#9
90501-240A3-00
Spring, Compression
$7.40¢3 700
1
#10
90159-06010-00
SCREW, WITH WASHER
$7.80¢3 900
1
#11
5XD-16154-00-00
PLATE, THRUST 1
$15.59¢7 794
1
#12
5VY-16321-00-00
PLATE, FRICTION
$32.34¢16 169
1
#13
90208-20008-00
WASHER,CONICAL SPR
$8.24¢4 119
1
#14
90170-20255-00
NUT,HEXAGON
$10.46¢5 231
1
#15
33D-16356-00-00
ROD, PUSH 1
$75.11¢37 556
1
#16
93340-21209-00
BEARING, TRUST
$17.41¢8 706
1
#17
93440-10085-00
CIRCLIP
$7.34¢3 669
1
#18
93511-32027-00
BALL
$7.34¢3 669
1
#19
1SL-16357-10-00
ROD, PUSH 2
$54.04¢27 019
1
#20
1SL-16381-00-00
PUSH LEVER COMP.
$109.70¢54 850
1
#21
93317-11096-00
BEARING
$23.80¢11 900
1
#22
93102-10008-00
Oil Seal
$5.54¢2 769
1
#23
99009-18500-00
Circlip
$0.69¢344
1
#24
1SL-W001G-00-00
Clutch Kit
$179.48¢89 738
1
