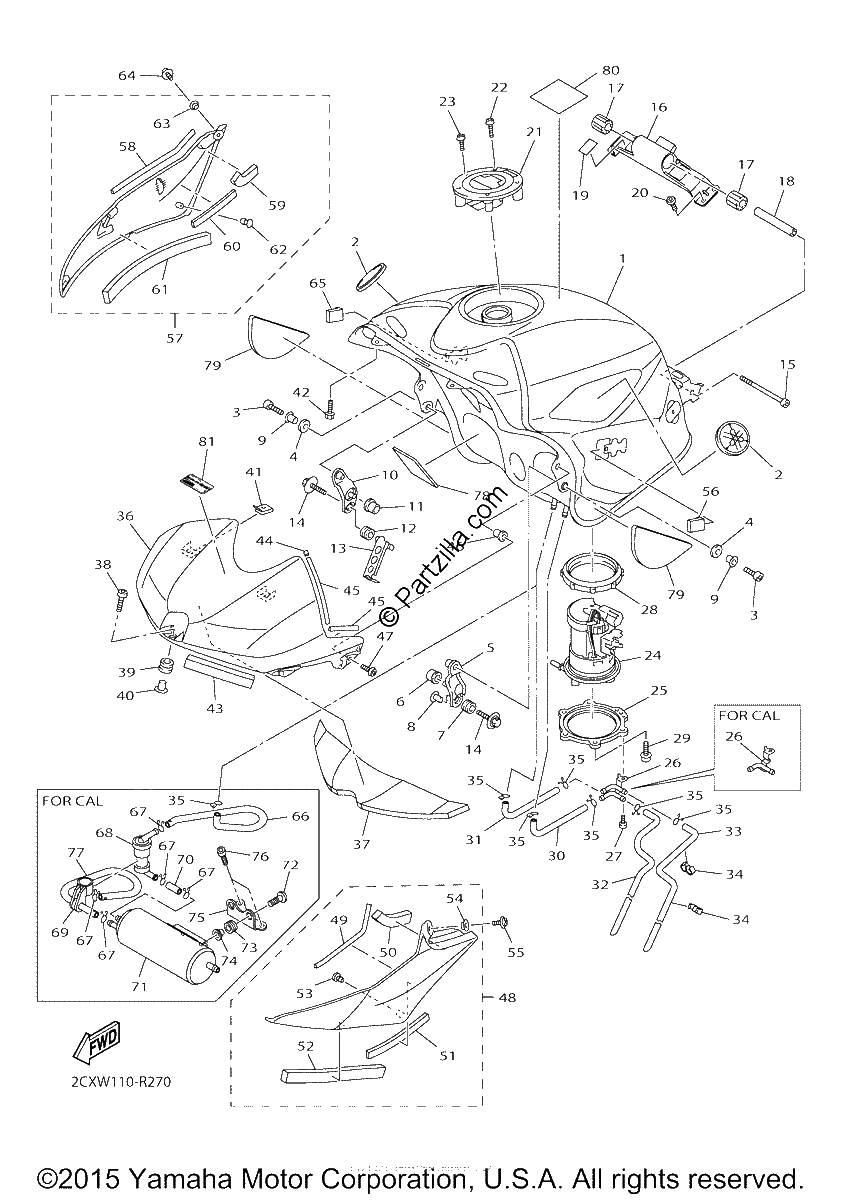

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
CLAMP 1 | FOR CALIFORNIA
No Disponible
#0
PIPE 7 | FOR CALIFORNIA
$19.35¢9 675
#1
FUEL TANK COMP. | Use for Color LIGHT REDDISH YELLOW SOLID 1 ( LRYS1 / 0386 )
$1374.99¢687 494
#2
EMBLEM
$26.51¢13 256
#3
BOLT
$5.84¢2 919
#4
DAMPER, LOCATING 3
$7.77¢3 887
#5
BRACKET, FUEL TANK 1
$25.15¢12 575
#6
DAMPER, LOCATING 1
$7.65¢3 825
#7
GROMMET
$11.70¢5 850
#8
COLLAR
$8.31¢4 156
#9
COLLAR
$6.49¢3 244
#10
BRACKET, FUEL TANK 2
$22.88¢11 438
#11
DAMPER, LOCATING 1
$7.65¢3 825
#12
GROMMET
$11.70¢5 850
#13
GUIDE, WIRE
$22.16¢11 081
#14
BOLT, WITH WASHER
$7.48¢3 738
#15
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
#16
BRACKET, TANK FITTING
$74.70¢37 350
#17
DAMPER, LOCATING 3
$7.65¢3 825
#18
COLLAR
$5.19¢2 594
#19
TAPE, 1
$7.91¢3 956
#20
BOLT, HEX. SOCKET BUTTON
$4.11¢2 056
#21
CAP ASSY
$270.61¢135 306
#22
BOLT, HEXAGON SOCKET HEAD
$8.91¢4 456
#23
BOLT
$5.86¢2 931
#24
FUEL PUMP COMP.
$562.71¢281 356
#25
BRACKET, FUEL PUMP
$43.83¢21 913
#26
CLAMP 1 | FOR U49
$42.20¢21 100
#27
SCREW, BIND
$1.89¢944
#28
O-RING
$44.47¢22 237
#29
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
#30
PIPE 5
$14.29¢7 144
#31
PIPE 6
$14.04¢7 019
#32
PIPE 7 | FOR U49
$24.31¢12 156
#33
PIPE 3
$27.01¢13 506
#34
CLAMP
$7.36¢3 681
#35
Clip
$2.97¢1 487
#36
COVER, TOP | Use for Color LIGHT REDDISH YELLOW SOLID 1 ( LRYS1 / 0386 )
$277.43¢138 713
#37
DAMPER
$8.15¢4 075
#38
BOLT, HEX. SOCKET BUTTON
$3.98¢1 988
#39
GROMMET
$3.38¢1 688
#39
PLUG
$6.76¢3 381
#40
COLLAR
$6.57¢3 287
#41
NUT, SPRING
$8.85¢4 425
#42
BOLT, FLANGE
$2.64¢1 319
#43
DAMPER, PLATE 2
$6.55¢3 275
#44
DAMPER, LOCATING 1
$7.95¢3 975
#45
DAMPER, PLATE
$1.30¢650
#46
NUT
$6.78¢3 388
#47
SCREW, BIND
$1.44¢719
#48
TANK SIDE COVER ASSY 1
$57.67¢28 838
#49
DAMPER, PLATE
$1.89¢944
#50
DAMPER, PLATE 5
$7.95¢3 975
#51
DAMPER, PLATE
$1.44¢719
#52
DAMPER, LOCATING 4
$7.95¢3 975
#54
COLLAR
$5.99¢2 994
#55
SCREW, BIND
$1.46¢731
#56
DAMPER, SIDE COVER
$7.65¢3 825
#57
TANK SIDE COVER ASSY 2
$57.67¢28 838
#58
DAMPER, PLATE
$1.89¢944
#59
DAMPER, PLATE 5
$7.95¢3 975
#60
DAMPER, PLATE
$1.44¢719
#61
DAMPER, LOCATING 4
$7.95¢3 975
#62
PLUG
$6.76¢3 381
#63
COLLAR
$5.99¢2 994
#64
SCREW, BIND
$1.46¢731
#65
DAMPER, SIDE COVER
$7.65¢3 825
#66
PIPE 4 | FOR CALIFORNIA
$40.23¢20 113
#67
Clip
$2.97¢1 487
#68
ROLL OVER VALVE ASSY | FOR CAL
$61.95¢30 975
#69
BAND 1 | FOR CALIFORNIA
No Disponible
#70
HOSE (L30) | FOR CALIFORNIA
$3.79¢1 894
#71
CANISTER ASSY | FOR CALIFORNIA
$601.70¢300 850
#72
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
#73
GROMMET
$7.43¢3 713
#74
COLLAR | FOR CALIFORNIA
$6.76¢3 381
#75
BRACKET, CANISTOR | FOR CALIFORNIA
$55.99¢27 994
#76
BOLT (3JB) (replaces 91312-06020-00)
$2.44¢1 219
#77
PIPE | FOR CALIFORNIA
$32.56¢16 281
#78
DAMPER, SIDE COVER
$5.69¢2 844
#79
DAMPER, SIDE COVER
$7.77¢3 887
#80
LABEL, WARNING GENERAL INFO.
$3.70¢1 850
#81
EMBLEM
$18.43¢9 213
