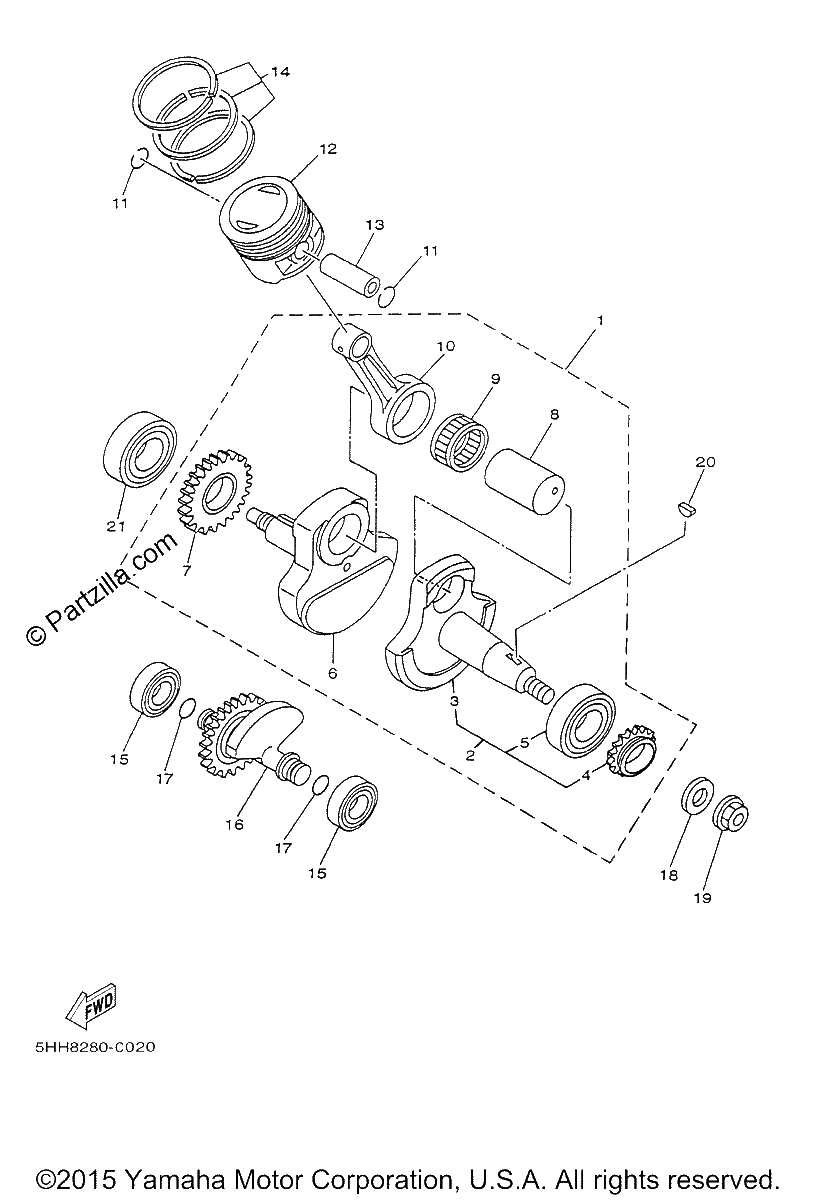

CRANKSHAFT PISTON
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
Crankshaft Assy
$864.79¢432 394
#2
CRANK SUB ASSY 1
$311.20¢155 601
#3
. . ..CRANK 1
No Disponible
#4
SPROCKET, CAM CHAIN
$63.28¢31 642
#5
BEARING
$63.16¢31 579
#6
CRANK 2
$193.95¢96 974
#7
GEAR, DRIVE
$84.28¢42 142
#8
PIN, CRANK 1
$63.99¢31 993
#9
BEARING
$85.36¢42 682
#10
ROD, CONNECTING
$87.05¢43 527
#11
CIRCLIP,INNER
$6.55¢3 278
#12
PISTON (1.00MM O/S (replaces 1B2-E1638-00-00) This item has been discontinued and may not be available. Contact us for more information.
No Disponible
#12
PISTON (0.50MM O/S (replaces 1B2-E1636-00-00) This item has been discontinued and may not be available. Contact us for more information.
No Disponible
#12
PISTON (Std)
$139.43¢69 713
#13
PIN, PISTON (replaces 5HH-E1633-00-00)
$22.63¢11 316
#14
PISTON RING SET (1
$64.88¢32 441
#14
PISTON RING SET (S
$79.26¢39 629
#14
PISTON RING SET (0
$87.30¢43 648
#15
BEARING
$13.47¢6 733
#16
BALANCER ASSY (replaces 5HH-E1500-02-00)
$157.22¢78 608
#17
O-Ring
$3.29¢1 644
#18
WASHER,PLATE (55X)
$5.37¢2 685
#19
NUT,SPEC'L SHAPE (replaces 90179-12248-00)
$5.82¢2 909
#20
KEY, WOODRUFF
$6.32¢3 162
#21
BEARING
$43.49¢21 746
