REAR ARM SUSPENSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

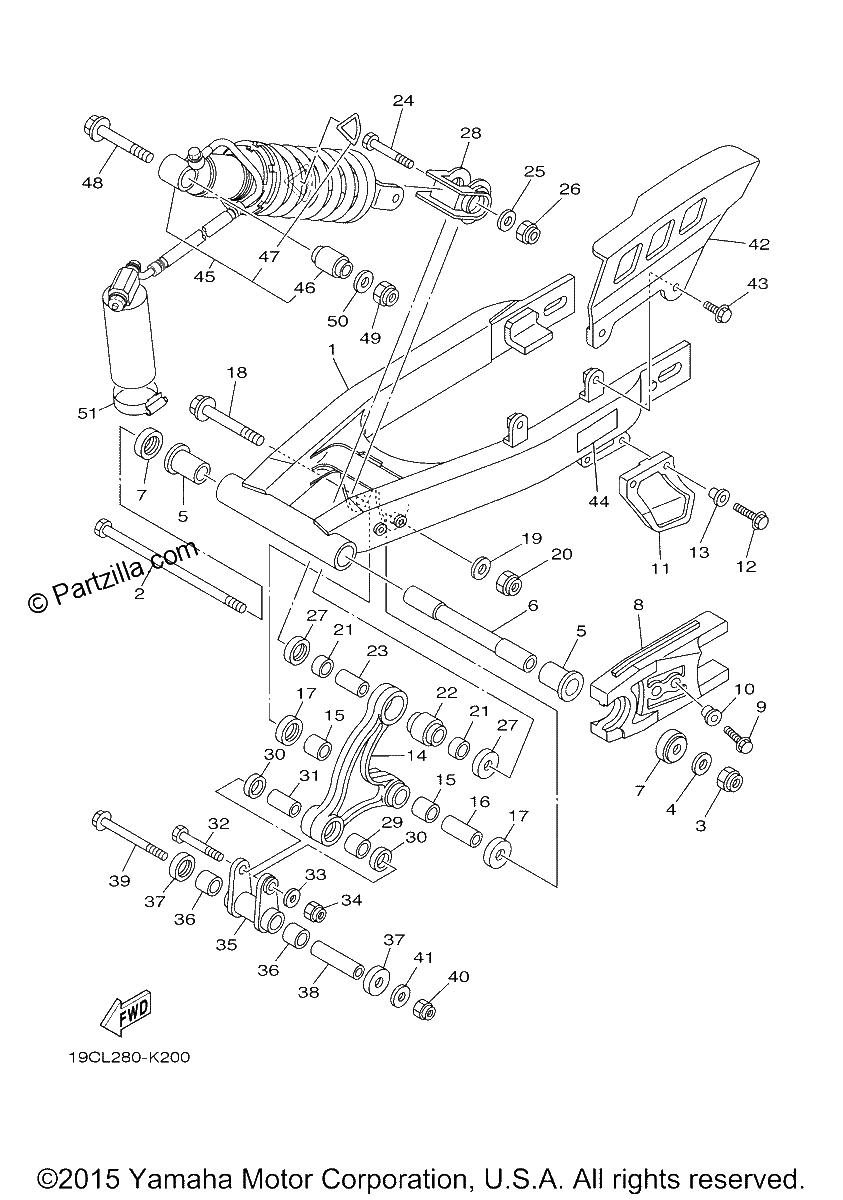

Diagrama de REAR ARM SUSPENSION

Repuestos

#1
5HP-22110-20-00
REAR ARM COMP.
$1119.99¢559 994
1
#2
1B2-F2141-00-00
Shaft, Pivot
$23.69¢11 844
1
#3
95617-12100-00
NUT, U
$4.53¢2 263
1
#4
90201-124G9-00
WASHER,PLATE
$5.25¢2 625
1
#5
90386-18099-00
BUSH
$16.06¢8 031
1
#6
90389-12002-00
BUSH,SPEC'L SHAPE
$49.11¢24 556
1
#7
401-22128-01-00
COVER, THRUST 1
$30.38¢15 188
1
#8
1B2-F2151-10-00
SEAL, GUARD
$37.67¢18 838
1
#9
95817-06025-00
BOLT,FLANGE (replaces 90105-06125-00)
$1.75¢875
1
#10
90387-062X0-00
COLLAR
$20.49¢10 244
1
#11
5RM-F2199-00-00
SUPPORT, CHAIN
$6.64¢3 319
1
#12
95817-06020-00
BOLT, FLANGE (replaces 95802-06020-00)
$3.31¢1 656
1
#13
90387-06737-00
COLLAR
$7.88¢3 938
1
#14
1B2-F217A-00-00
ARM, RELAY This item has been discontinued and may not be available. Contact us for more information.
No Disponible
1
#15
90384-18190-00
BUSH,BIMETAL FORM
$12.75¢6 375
1
#16
1B2-F2124-00-00
BUSH 2
$52.64¢26 319
1
#17
1B2-F2129-00-00
COVER, thrust 2
$31.81¢15 906
1
#18
90105-12019-00
Bolt, Flange
$11.74¢5 869
1
#19
90201-124G9-00
WASHER,PLATE
$5.25¢2 625
1
#20
95617-12100-00
NUT, U
$4.53¢2 263
1
#21
90380-16109-00
BUSH,SOLID
$12.75¢6 375
1
#22
22W-22124-00-00
BUSH 2
$44.63¢22 313
1
#23
90387-106G0-00
Collar
$13.75¢6 875
1
#24
90109-10689-00
bolt
$7.56¢3 781
1
#25
90201-100F7-00
WASHER,PLATE (replaces 90201-10430-00)
$7.60¢3 800
1
#26
90185-10120-00
NUT,SELF-LOCKING
$5.84¢2 919
1
#27
4AN-F2129-00-00
COVER, thrust 2
$31.80¢15 900
1
#28
4AN-F2189-00-00
Boot, Rubber
$9.28¢4 638
1
#29
90383-16023-00
BUSH,FORMED
$15.10¢7 550
1
#30
93109-16800-00
Oil Seal
$6.59¢3 294
1
#31
90387-106G0-00
Collar
$13.75¢6 875
1
#32
90109-10689-00
bolt
$7.56¢3 781
1
#33
90201-100F7-00
WASHER,PLATE (replaces 90201-10430-00)
$7.60¢3 800
1
#34
90185-10120-00
NUT,SELF-LOCKING
$5.84¢2 919
1
#35
1B2-F217F-00-35
ROD, CONNECTING 1
$78.41¢39 206
1
#36
90383-16023-00
BUSH,FORMED
$15.10¢7 550
1
#37
4AN-F2129-00-00
COVER, thrust 2
$31.80¢15 900
1
#38
90387-105G9-00
Collar
$11.34¢5 669
1
#39
90105-10392-00
BOLT,WASHER BASED
$9.99¢4 994
1
#40
90185-10120-00
NUT,SELF-LOCKING
$5.84¢2 919
1
#41
90201-100F7-00
WASHER,PLATE (replaces 90201-10430-00)
$7.60¢3 800
1
#42
1B2-F2311-00-00
CASE, CHAIN
$9.91¢4 956
1
#43
90119-06079-00
BOLT,WITH WASHER (replaces 90119-06205-00)
$1.19¢594
1
#44
3RV-21668-A0-00
LABEL, TIRE
$4.38¢2 188
1
#45
5HP-22210-A0-00
SHOCK ABSORBER ASS
$814.16¢407 081
1
#46
2YK-22216-00-00
BUSH, REAR SHOCK A
$91.72¢45 863
1
#47
4AA-22259-80-00
LABEL, WARNING
$14.81¢7 406
1
#48
90105-12030-00
BOLT, FLANGE This item has been discontinued and may not be available. Contact us for more information.
$10.60¢5 300
1
#49
95617-12100-00
NUT, U
$4.53¢2 263
1
#50
90201-124G9-00
WASHER,PLATE
$5.25¢2 625
1
#51
90450-54M00-00
HOSE CLAMP ASSY(6TC)
$16.59¢8 294
1
