FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

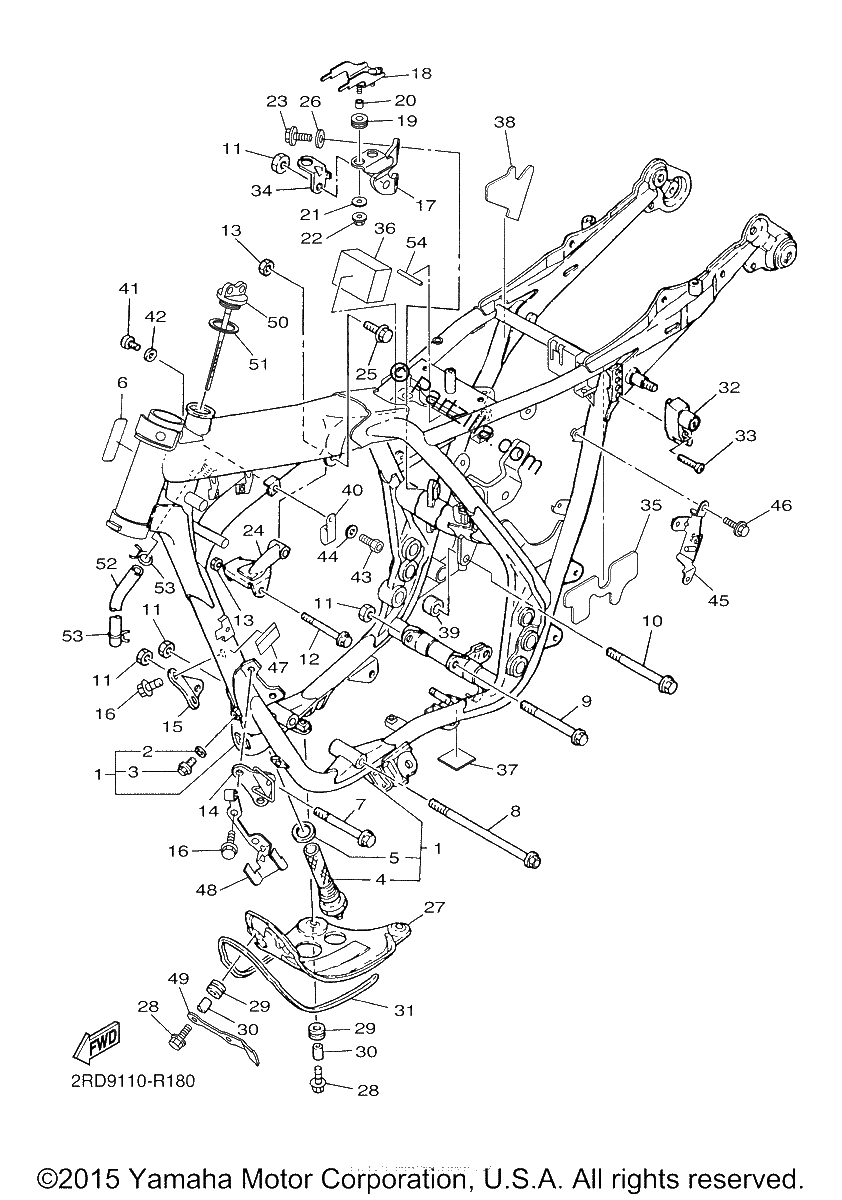

Diagrama de FRAME

Repuestos

#1
2RD-21110-10-00
FRAME COMP.
$2664.54¢1 332 269
1
#2
90430-08119-00
GASKET
$6.36¢3 180
1
#3
90105-08151-00
BOLT, FLANGE
$4.38¢2 191
1
#4
583-21756-00-00
NET, FILTER
$67.86¢33 931
1
#5
90430-22123-00
GASKET
$8.83¢4 416
1
#6
3D8-2117G-00-00
PROTECTOR
$6.12¢3 059
1
#7
90105-10747-00
BOLT, FLANGE
$4.19¢2 093
1
#8
90105-10370-00
BOLT, FLANGE
$10.48¢5 238
1
#9
90105-10105-00
BOLT, FLANGE
$11.86¢5 928
1
#10
90109-101A0-00
BOLT,WASHER BASED
$15.40¢7 699
1
#11
90185-10060-00
NUT, SELF-LOCKING
$6.59¢3 295
1
#12
90105-08118-00
BOLT, FLANGE
$6.39¢3 197
1
#13
90185-08089-00
NUT, SELF-LOCKING
$8.00¢4 002
1
#14
2J2-21315-40-00
STAY, ENGINE 1
$28.20¢14 099
1
#15
2J2-21316-10-00
STAY, ENGINE 2
$8.21¢4 105
1
#16
95817-08016-00
BOLT, FLANGE
$4.52¢2 260
1
#17
3HT-21317-00-00
STAY, ENGINE 3
$17.99¢8 993
1
#18
3HT-2134V-00-00
BRACKET
$9.95¢4 974
1
#19
90480-10289-00
GROMMET
$7.07¢3 536
1
#20
90387-0600V-00
COLLAR
$8.39¢4 198
1
#21
90201-06095-00
WASHER, PLATE (replaces 90201-06063-00)
$6.89¢3 444
1
#22
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.58¢1 288
1
#23
90105-08129-00
BOLT, FLANGE
$4.45¢2 225
1
#24
2J2-21318-10-00
STAY, ENGINE 4
$17.53¢8 763
1
#25
95817-08035-00
BOLT,FLANGE (replaces 90105-08108-00)
$7.30¢3 651
1
#26
90201-083P5-00
WASHER, PLATE(3XP)
$5.65¢2 823
1
#27
3GW-21471-00-33
PROTECTOR, ENGINE (0033, YB) | YB
$51.72¢25 858
1
#28
90119-06118-00
BOLT, WITH WASHER
$6.75¢3 375
1
#29
90480-13275-00
GROMMET
$4.86¢2 432
1
#30
90387-060A3-00
COLLAR
$7.91¢3 956
1
#31
52E-28376-00-00
TRIM
No Disponible
1
#32
4R8-21308-01-00
HELMET HANGER ASSY
$80.04¢40 020
1
#33
90151-06077-00
SCREW, COUNTERSUNK
$3.07¢1 535
1
#34
2J2-2144G-00-00
STAY, STOP SWITCH
$8.99¢4 497
1
#35
3HT-2139X-01-00
DAMPER
$2.44¢1 219
1
#36
3HT-2113B-00-00
DAMPER
$4.29¢2 145
1
#37
3KJ-24723-00-00
DAMPER, SEAT
$7.23¢3 617
1
#38
3HT-2117F-10-00
COVER
$6.03¢3 013
1
#39
2J2-21459-01-00
COLLAR, REAR ENGINE STAY
$10.02¢5 008
1
#39
90467-100A1-00
CLIP | FOR CALIFORNIA
$6.99¢3 496
1
#40
90461-08113-00
CLAMP
$11.87¢5 934
1
#41
98517-05010-00
SCREW,PAN HEAD(3SX (replaces 98507-05010-00)
$3.86¢1 932
1
#42
92907-05600-00
WASHER, PLATE
$0.89¢443
1
#43
97027-05010-00
BOLT
$6.36¢3 180
1
#44
92907-05600-00
WASHER, PLATE
$0.89¢443
1
#45
3HT-2137F-00-00
STAY 1
$28.00¢14 001
1
#46
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.64¢822
1
#47
32C-21686-00-00
PLATE, ROUTING 2 | FOR CALIFORNIA
$8.35¢4 174
1
#48
2RD-2419F-00-00
BRACKET, CANISTOR | FOR CALIFORNIA
$562.34¢281 169
1
#49
2RD-2413X-00-00
PLATE | FOR CALIFORNIA
$352.07¢176 036
1
#50
2J2-21771-10-00
BODY, CAP
$13.60¢6 802
1
#51
90430-27124-00
GASKET
$7.30¢3 651
1
#52
90445-11289-00
HOSE (L200)
$10.05¢5 026
1
#54
5VN-24188-00-00
MOLD, FUEL TANK
$35.24¢17 618
1
