TAILLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

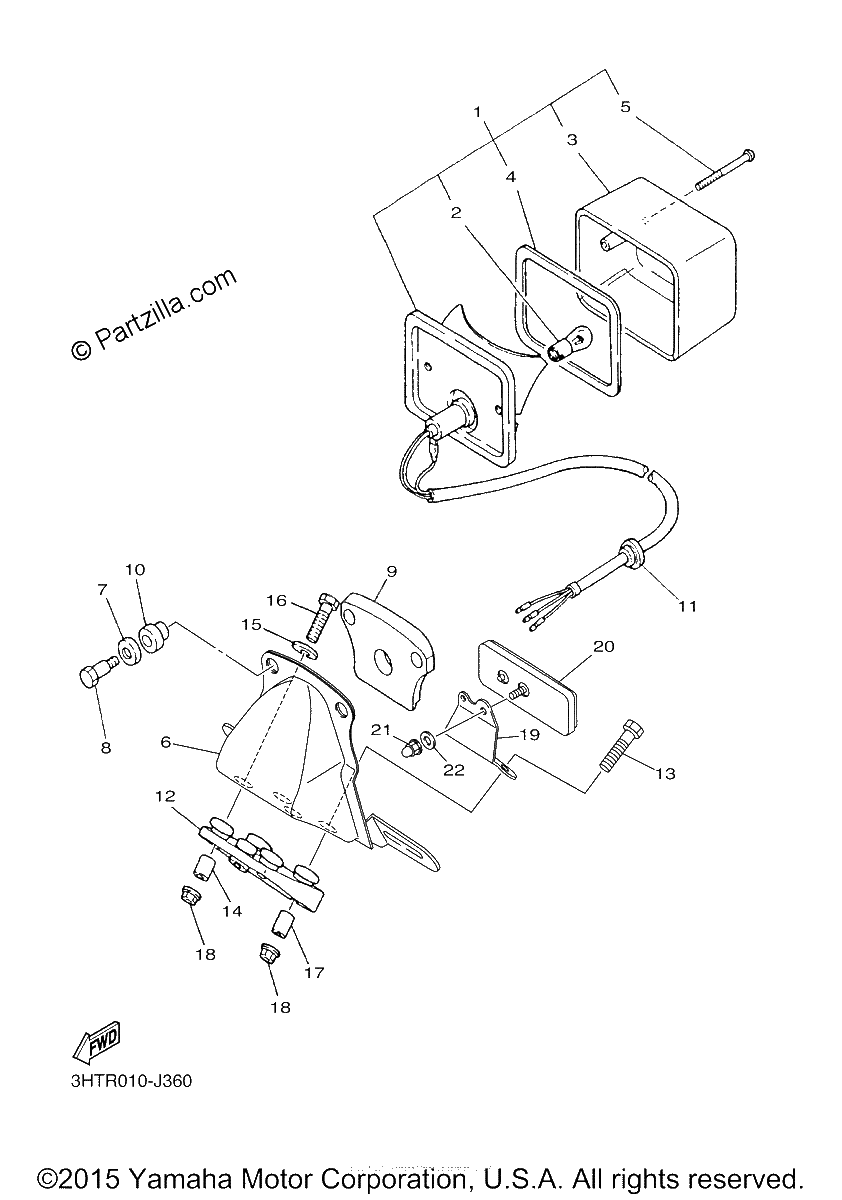

Diagrama de TAILLIGHT

Repuestos

#1
2RD-84710-10-00
TAILLIGHT UNIT ASSY
$63.09¢31 544
1
#2
256-84714-61-00
BULB 12V32/3CP
$11.92¢5 962
1
#3
1M1-84521-60-00
LENS,TAILLIGHT
$43.71¢21 856
1
#4
1M1-84523-60-00
GASKET,LENS
$13.14¢6 569
1
#5
90157-04111-00
SCREW, LENS FITTING
$7.28¢3 638
1
#6
3HT-84751-20-00
BRACKET, LICENSE
$136.48¢68 238
1
#7
2H7-84754-00-00
WASHER, SPECIAL
$12.13¢6 063
1
#8
3HT-84526-00-00
SCREW
$4.44¢2 219
1
#9
1M1-84512-60-00
SEAT, BASE
$9.78¢4 888
1
#10
1M1-84527-60-00
DAMPER
$8.97¢4 488
1
#11
90480-12013-00
GROMMET
$7.69¢3 844
1
#12
2J2-84753-00-00
DAMPER
$17.94¢8 969
1
#13
97017-06030-00
BOLT
$3.57¢1 787
1
#14
90387-07020-00
COLLAR
$7.34¢3 669
1
#15
90201-06380-00
WASHER PLAIN
$0.69¢344
1
#16
97017-06025-00
BOLT,HEXAGON (replaces 97007-06025-00)
$3.55¢1 775
1
#17
90387-0714A-00
COLLAR
$0.96¢481
1
#18
95707-06500-00
NUT, FLANGE
$0.94¢469
1
#19
3HT-21641-00-00
BRACKET, REFLECTOR
$10.96¢5 481
1
#20
3Y6-85130-02-00
Rear Reflector
$27.07¢13 538
1
#21
90176-05003-00
NUT, CROWN
$3.69¢1 844
1
#22
90201-05039-00
WASHER, PLATE
$6.35¢3 175
1
