COWLING 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

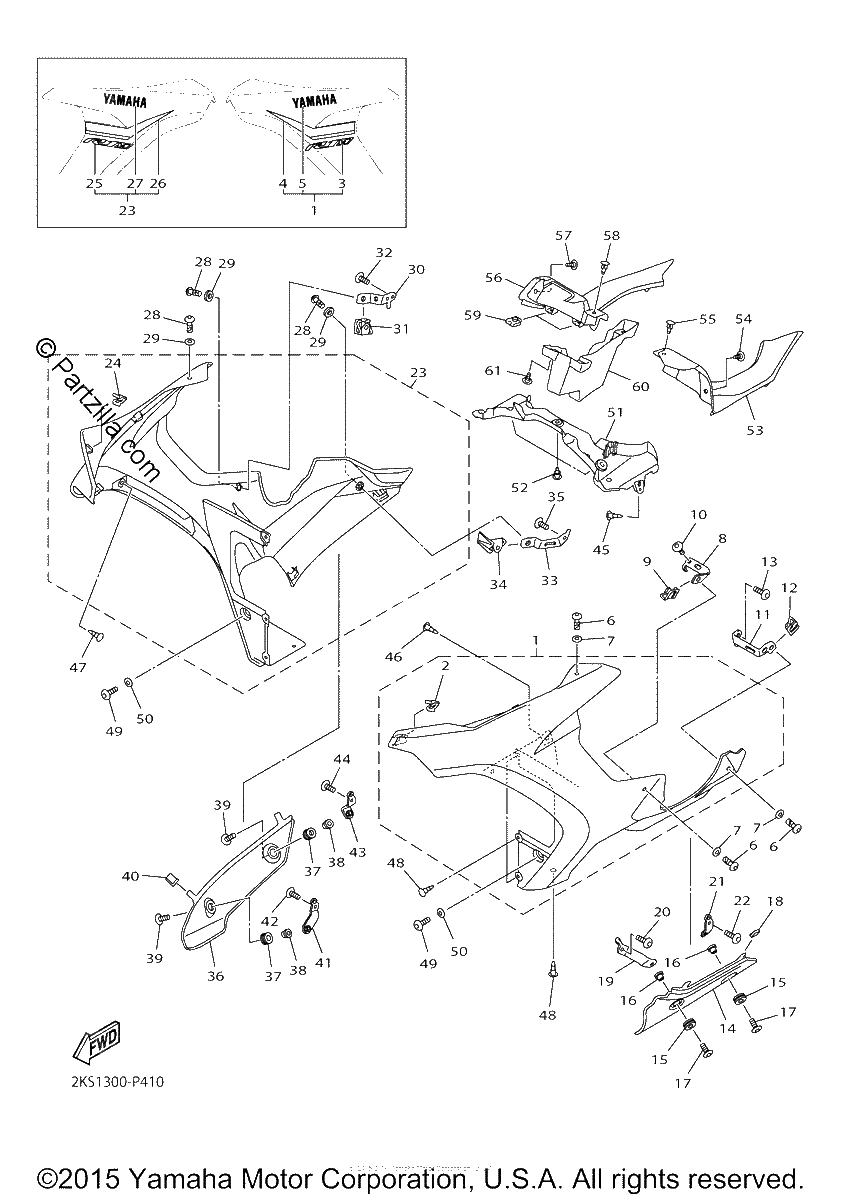

Diagrama de COWLING 2

Repuestos

#1
2KS-Y283U-10-0X
PANEL ASSEMBLY 1 | BWM2
$3594.89¢1 797 444
1
#2
90468-040A0-00
CLIP
$6.83¢3 415
1
#3
2KS-28328-01-00
EMBLEM
$12.39¢6 193
1
#4
2KS-28391-00-00
GRAPHIC 1
$46.71¢23 356
1
#5
99246-00120-00
EMBLEM, YAMAHA
$8.71¢4 353
1
#6
2CR-28386-00-00
HEAD
$13.48¢6 739
1
#7
8HG-21757-00-00
WASHER, SPECIAL 1
$0.98¢489
1
#8
2CR-2833K-00-00
BRACKET 13
$10.88¢5 440
1
#9
2CR-2177L-00-00
PLATE, SPRING
$5.26¢2 628
1
#10
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#11
2CR-2833L-00-00
BRACKET, 14
$10.43¢5 215
1
#12
2CR-2177L-00-00
PLATE, SPRING
$5.26¢2 628
1
#13
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#14
2CR-2834V-00-00
PROTECTOR 1
$194.41¢97 204
1
#15
90480-14477-00
GROMMET
$3.53¢1 765
1
#16
90387-06307-00
COLLAR
$4.38¢2 191
1
#17
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
1
#18
5PW-2411J-01-00
DAMPER, SIDE COVER
$7.04¢3 519
1
#19
2CR-2833R-00-00
BRACKET, 17
$14.34¢7 170
1
#20
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#21
2CR-2833T-00-00
BRACKET, 18
$12.60¢6 302
1
#22
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#23
2KS-Y283V-10-0X
PANEL ASSEMBLY 2 | BWM2
$3596.04¢1 798 019
1
#24
90468-040A0-00
CLIP
$6.83¢3 415
1
#25
2KS-28328-01-00
EMBLEM
$12.39¢6 193
1
#26
2KS-28392-00-00
GRAPHIC 2
$37.74¢18 871
1
#27
99246-00120-00
EMBLEM, YAMAHA
$8.71¢4 353
1
#28
2CR-28386-00-00
HEAD
$13.48¢6 739
1
#29
8HG-21757-00-00
WASHER, SPECIAL 1
$0.98¢489
1
#30
2CR-2833M-00-00
BRACKET, 15
$8.26¢4 129
1
#31
2CR-2177L-00-00
PLATE, SPRING
$5.26¢2 628
1
#32
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#33
2CR-2833N-00-00
BRACKET, 16
$8.26¢4 129
1
#34
2CR-2177L-00-00
PLATE, SPRING
$5.26¢2 628
1
#35
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#36
2CR-2834W-00-00
PROTECTOR 2
$194.45¢97 227
1
#37
90480-14477-00
GROMMET
$3.53¢1 765
1
#38
90387-06307-00
COLLAR
$4.38¢2 191
1
#39
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
1
#39
2CR-2837L-00-00
PANEL, CONSOLE 1
$17.31¢8 654
1
#40
5PW-2411J-01-00
DAMPER, SIDE COVER
$7.04¢3 519
1
#41
2CR-2833U-00-00
BRACKET, 19
$13.86¢6 929
1
#42
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#43
2CR-2833V-00-00
BRACKET, 20
$10.95¢5 474
1
#44
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#45
90269-07077-00
RIVET
$7.59¢3 795
1
#46
90269-06008-00
RIVET
$8.10¢4 048
1
#47
90269-07077-00
RIVET
$7.59¢3 795
1
#48
90269-06008-00
RIVET
$8.10¢4 048
1
#49
90149-06302-00
SCREW
$4.70¢2 352
1
#50
90387-06312-00
COLLAR
$8.49¢4 244
1
#51
2CR-23174-00-00
STAY, HEADLIGHT
$23.68¢11 839
1
#52
90269-06008-00
RIVET
$8.10¢4 048
1
#54
90111-05011-00
BOLT, HEX. SOCKET BUTTON
$4.77¢2 386
1
#55
90269-06008-00
RIVET
$8.10¢4 048
1
#56
2KS-2837M-00-00
PANEL, CONSOLE 2
$18.78¢9 390
1
#57
90111-05011-00
BOLT, HEX. SOCKET BUTTON
$4.77¢2 386
1
#58
90269-06008-00
RIVET
$8.10¢4 048
1
#59
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#60
2CR-2838K-00-00
BOX 1
$13.70¢6 848
1
#61
90111-05011-00
BOLT, HEX. SOCKET BUTTON
$4.77¢2 386
1
