CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

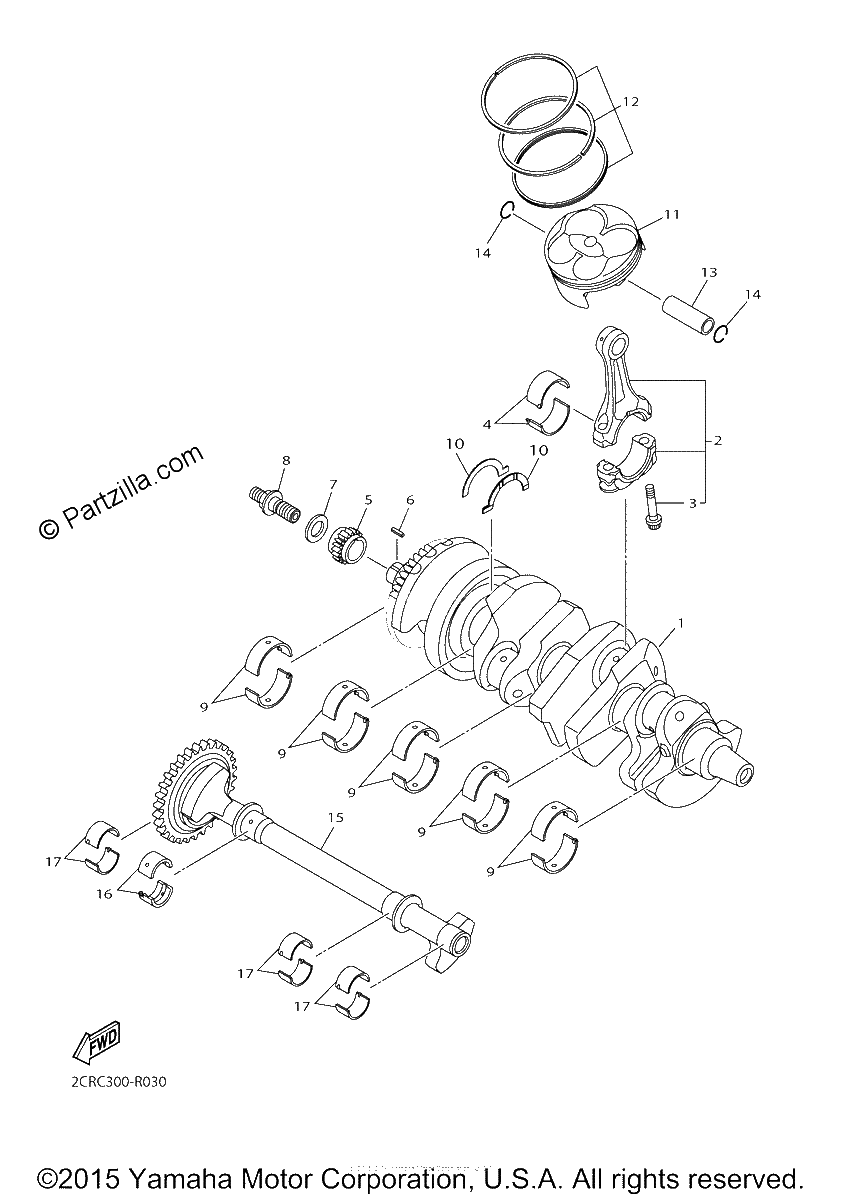

Diagrama de CRANKSHAFT PISTON

Repuestos

#0
2CR-11423-50-00
METAL, BALANCE WEIGHT 2 | UR PINK
$15.93¢7 964
1
#0
2CR-11416-40-00
PLANE BEARING, CRANKSHAFT 1 | UR YELLOW
$12.85¢6 423
1
#0
2CR-11423-A0-00
METAL, BALANCE WEIGHT 2 | UR WHITE
$18.26¢9 131
1
#0
2CR-11413-00-00
METAL, BALANCE WEIGHT | UR BLUE
$15.77¢7 883
1
#0
2CR-11423-40-00
METAL, BALANCE WEIGHT 2 | UR YELLOW
$15.69¢7 843
1
#0
2CR-11656-20-00
PLANE BEARING, CONNECTING ROD | UR BROWN
$14.34¢7 170
1
#0
2CR-11423-20-00
METAL, BALANCE WEIGHT 2 | UR BROWN
$14.34¢7 170
1
#0
2CR-11423-10-00
METAL, BALANCE WEIGHT 2 | UR BLACK
$14.34¢7 170
1
#0
2CR-11423-00-00
METAL, BALANCE WEIGHT 2 | UR BLUE
$15.69¢7 843
1
#0
2CR-11416-60-00
PLANE BEARING, CRANKSHAFT 1 | UR RED
$13.19¢6 595
1
#0
2CR-11416-50-00
PLANE BEARING, CRANKSHAFT 1 | UR PINK
$13.49¢6 745
1
#0
2CR-11656-30-00
PLANE BEARING, CONNECTING ROD | UR GREEN
$14.34¢7 170
1
#0
2CR-11656-00-00
PLANE BEARING, CONNECTING ROD | UR BLUE
$14.72¢7 360
1
#0
2CR-11416-20-00
PLANE BEARING, CRANKSHAFT 1 | UR BROWN
$12.85¢6 423
1
#0
2CR-11416-10-00
PLANE BEARING, CRANKSHAFT 1 | UR BLACK
$13.49¢6 745
1
#0
2CR-11416-00-00
PLANE BEARING, CRANKSHAFT 1 | UR BLUE
$12.79¢6 394
1
#0
2CR-11413-A0-00
METAL, BALANCE WEIGHT | UR WHITE
$14.34¢7 170
1
#0
2CR-11413-50-00
METAL, BALANCE WEIGHT | UR PINK
$15.93¢7 964
1
#0
2CR-11413-40-00
METAL, BALANCE WEIGHT | UR YELLOW
$14.34¢7 170
1
#0
2CR-11413-30-00
METAL, BALANCE WEIGHT | UR GREEN
$14.34¢7 170
1
#0
2CR-11656-50-00
PLANE BEARING, CONNECTING ROD | UR PINK
$14.65¢7 326
1
#0
2CR-11413-10-00
METAL, BALANCE WEIGHT | UR BLACK
$14.34¢7 170
1
#0
2CR-11656-10-00
PLANE BEARING, CONNECTING ROD | UR BLACK
$13.48¢6 739
1
#1
2CR-11400-10-00
CRANKSHAFT ASSY
$850.07¢425 034
1
#2
2CR-11650-00-00
CONNECTING ROD ASSY
$645.60¢322 799
1
#3
2CR-11654-00-00
BOLT, CONNECTING ROD
$6.14¢3 070
1
#4
2CR-11656-40-00
PLANE BEARING, CONNECTING ROD | UR YELLOW
$14.31¢7 153
1
#5
2CR-11549-00-00
SPROCKET, CAM CHAIN
$49.42¢24 708
1
#6
90282-03012-00
KEY, STRAIGHT
$13.20¢6 601
1
#7
90201-13021-00
WASHER, PLATE
$3.73¢1 863
1
#8
2CR-12157-00-00
BOLT
$19.14¢9 568
1
#9
2CR-11416-30-00
PLANE BEARING, CRANKSHAFT 1 | UR GREEN
$12.85¢6 423
1
#10
2CR-11426-00-00
BEARING, THRUST 1
$13.60¢6 802
1
#11
2CR-11631-10-00
PISTON (STD)
$131.38¢65 688
1
#12
2CR-11603-10-00
PISTON RING SET (STD)
$63.50¢31 751
1
#13
2CR-11633-00-00
PIN, PISTON
$61.77¢30 883
1
#14
93450-18169-00
CIRCLIP
$1.09¢546
1
#15
2CR-11500-00-00
BALANCER ASSY
$528.97¢264 483
1
#16
2CR-11413-20-00
METAL, BALANCE WEIGHT | UR BROWN
$14.34¢7 170
1
#17
2CR-11423-30-00
METAL, BALANCE WEIGHT 2 | UR GREEN
$14.34¢7 170
1
