ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

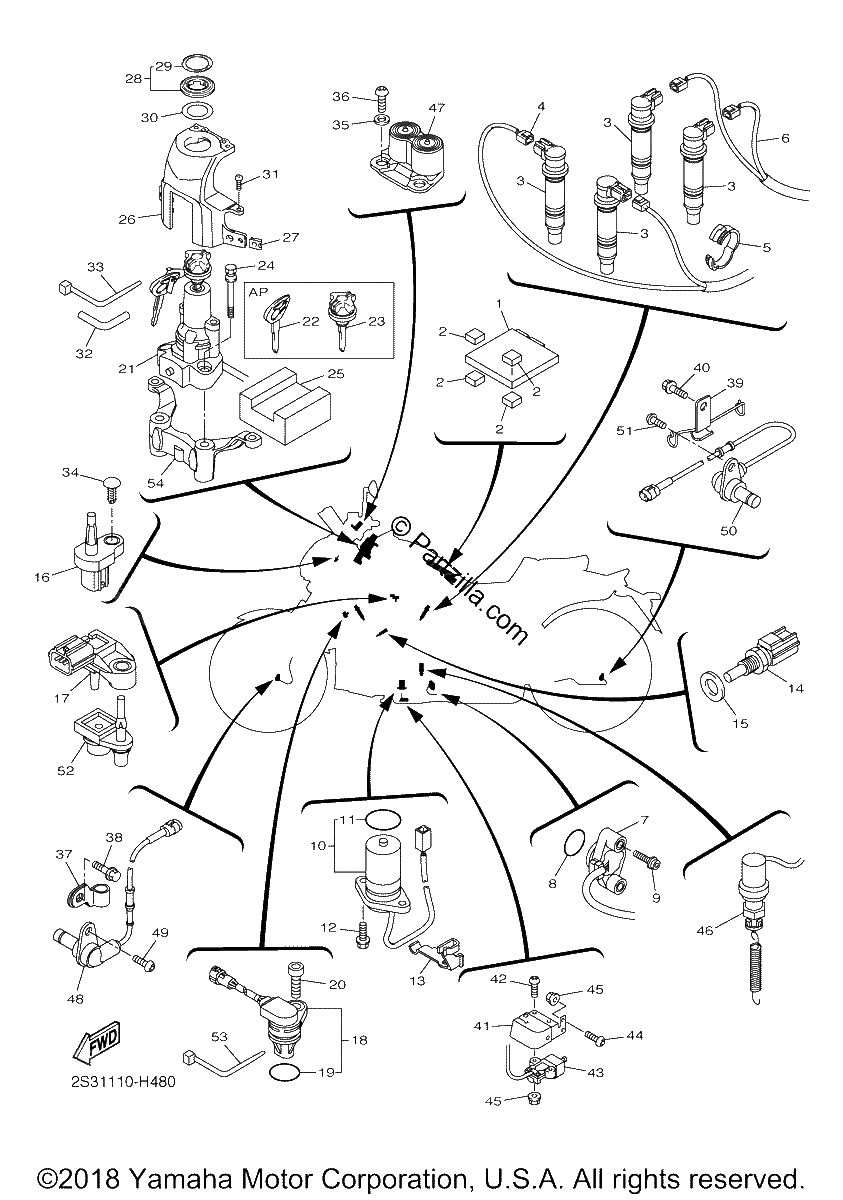

Diagrama de ELECTRICAL 1

Repuestos

#1
2S3-8591A-A0-00
ENGINE CONTROL UNIT
$1872.49¢936 244
1
#2
2RH-21747-00-00
Damper
$2.88¢1 438
1
#3
5VY-82310-00-00
IGNITION COIL ASSY
$178.74¢89 369
1
#4
2S3-82509-10-00
WIRE, SUB LEAD
$55.44¢27 719
1
#5
90464-25005-00
Clamp
$3.02¢1 513
1
#6
2S3-82509-20-00
WIRE, SUB LEAD
$60.34¢30 169
1
#7
2S3-82540-00-00
NEUTRAL SWITCH ASSY
$108.75¢54 375
1
#8
93210-21001-00
O-RING
$5.69¢2 844
1
#9
90110-05054-00
BOLT, HEXAGON SOCKET (replaces 90110-05053-00)
No Disponible
1
#10
2S3-85720-00-00
Oil Level Gauge Assy
$97.36¢48 681
1
#11
5VY-8A8E0-00-00
O-RING
$13.04¢6 519
1
#12
95022-06016-00
BOLT, FLANGE
$3.96¢1 981
1
#13
2S3-85724-00-00
Clamp
$18.45¢9 225
1
#14
8CC-85790-01-00
THERMOSENSOR ASSY
$106.45¢53 225
1
#15
90201-12172-00
WASHER,PLATE
$3.44¢1 719
1
#16
5YU-85886-00-00
SENSOR, AIR TEMPERATURE
$35.84¢17 919
1
#17
1WS-82380-00-00
Sensor, Pressure
$203.69¢101 844
1
#18
2S3-85896-01-00
Sensor, Cam Position
$106.06¢53 031
1
#19
4D9-81168-00-00
O-RING
$5.15¢2 575
1
#20
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.44¢1 219
1
#21
2S3-82501-00-00
MAIN SWITCH STEERING
$434.05¢217 025
1
#22
5PX-82511-09-00
BLANK KEY
$82.79¢41 394
1
#23
2S3-82511-09-00
KEY, MAIN SWITCH
$92.39¢46 194
1
#24
90109-08212-00
BOLT (replaces 90109-08207-00)
$14.01¢7 006
1
#25
2S3-28372-00-00
DAMPER This item has been discontinued and may not be available. Contact us for more information.
No Disponible
1
#26
2S3-2117A-00-00
STAY
$117.55¢58 775
1
#27
90183-06069-00
NUT, SPRING
$7.26¢3 631
1
#28
2S3-82552-00-00
CAP, SWITCH
$91.11¢45 556
1
#29
2S3-8257H-00-00
PLATE, MARK
$22.14¢11 069
1
#30
5GJ-28307-00-00
SEAL
$2.07¢1 037
1
#31
92012-06012-00
BOLT, BUTTON HEAD
$2.97¢1 487
1
#32
90445-07176-00
HOSE (L200) | FOR CAL
$8.39¢4 194
1
#33
1UA-82591-00-00
BAND
$4.91¢2 456
1
#34
90269-05055-00
RIVET,SPEC'L SHAPE
$8.34¢4 169
1
#35
90201-067F9-00
WASHER,PLATE
$3.43¢1 713
1
#36
92017-06016-00
BLT,BTTN HD (replaces 90111-06007-00)
$7.34¢3 669
1
#37
2S3-84387-00-00
HOLDER
$13.16¢6 581
1
#38
95024-06012-00
Bolt, Flange
$4.38¢2 188
1
#39
2S3-8431U-00-00
HOLDER
$25.60¢12 800
1
#40
95024-06012-00
Bolt, Flange
$4.38¢2 188
1
#41
2S3-27876-00-00
BRKT.,SWITCH
$44.97¢22 487
1
#42
92014-05025-00
BOLT, BUTTON HEAD
$8.38¢4 188
1
#43
2S3-82566-00-00
SWITCH, SIDE STAND
$149.67¢74 837
1
#44
92014-05020-00
BOLT, BUTTON HEAD
$7.34¢3 669
1
#45
95604-05200-00
NUT, U FLANGE
$2.05¢1 025
1
#46
2S3-82530-01-00
STOP SWITCH ASSY (replaces 2S3-82530-00-00)
$48.06¢24 031
1
#47
2S3-8358J-01-00
SWITCH, METER CONTRO
$186.35¢93 175
1
#48
2S3-85970-00-00
WHEEL SENSOR ASSY, F
$172.64¢86 319
1
#49
92014-06014-00
BOLT, BUTTON HEAD
$3.15¢1 575
1
#50
2S3-85980-00-00
WHEEL SENSOR ASSY, R
$184.13¢92 063
1
#51
92014-06014-00
BOLT, BUTTON HEAD
$3.15¢1 575
1
#52
2S3-14435-00-00
Grommet
$21.35¢10 675
1
#53
1UA-82591-00-00
BAND
$4.91¢2 456
1
#54
2S3-82514-00-00
STAY, MAIN SWITCH
$133.52¢66 762
1
