HEADLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

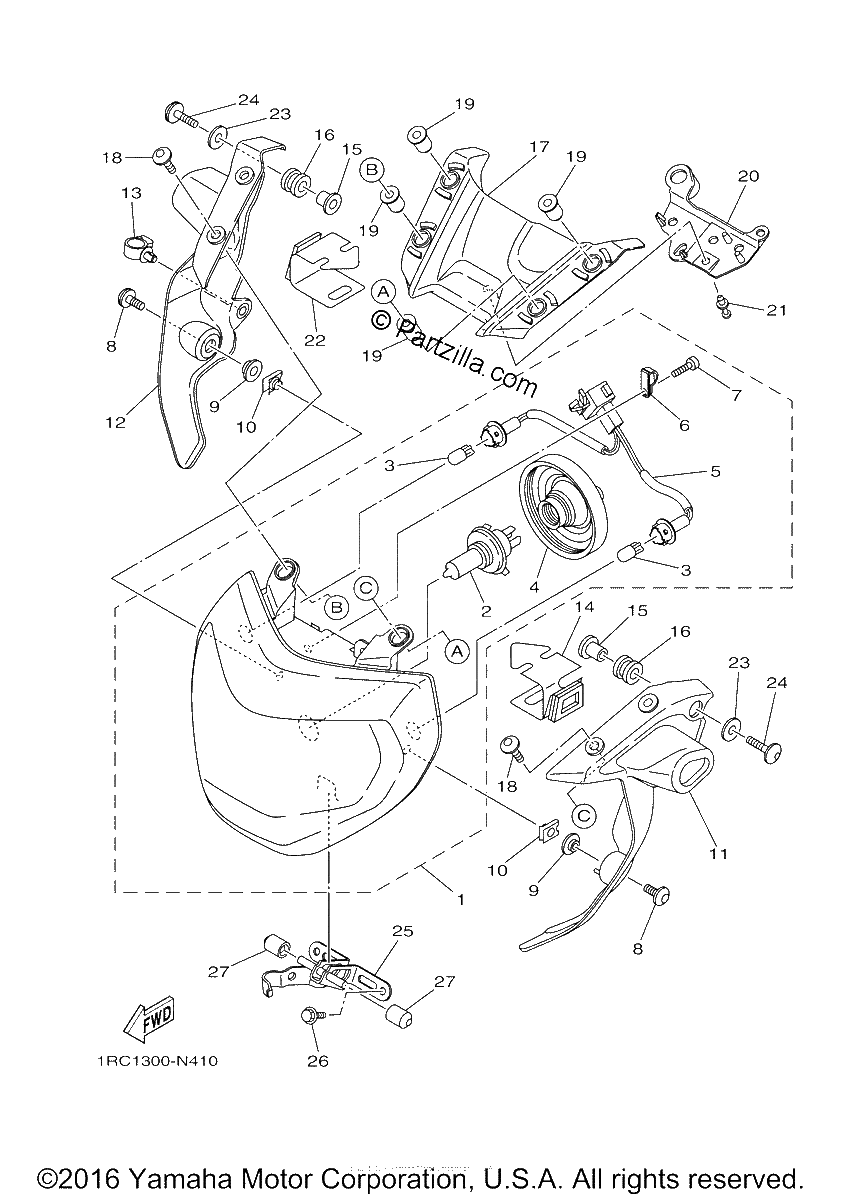

Diagrama de HEADLIGHT

Repuestos

#1
1RC-84300-00-00
HEADLIGHT ASSY
$536.31¢268 156
1
#2
1RC-84314-00-00
BULB, HEADLIGHT (12V-60/55W)
$34.80¢17 400
1
#3
1RC-84347-00-00
BULB (12V-5W)
$8.03¢4 013
1
#4
1RC-84397-00-00
COVER, SOCKET
$14.66¢7 331
1
#5
1RC-84359-00-00
CORD, HEADLIGHT
$19.93¢9 963
1
#6
1RC-84746-00-00
PLATE, SEAT BASE
$4.40¢2 200
1
#7
1RC-84724-00-00
SCREW, LENS FITTING
$3.02¢1 513
1
#8
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$4.11¢2 056
1
#9
90387-06170-00
COLLAR
$7.43¢3 713
1
#10
90183-060A6-00
NUT, SPRING
$4.97¢2 488
1
#11
1RC-2831V-00-P0
STAY, HEAD LIGHT 1 | MBL2
$73.76¢36 881
1
#12
1RC-2832V-00-P0
STAY, HEAD LIGHT 2 | MBL2
$73.76¢36 881
1
#13
90464-18002-00
CLAMP
$8.25¢4 125
1
#14
1RC-84152-00-00
GROMMET
$9.51¢4 756
1
#15
90387-07391-00
COLLAR
$9.22¢4 613
1
#16
90480-14604-00
GROMMET
$8.84¢4 419
1
#17
1RC-84369-00-00
COVER 1
$7.43¢3 713
1
#18
90111-06123-00
BOLT,HEX. SOCKET BUTTON
$3.74¢1 869
1
#19
90179-06072-00
NUT
$6.14¢3 069
1
#20
1RC-8431U-00-00
HOLDER
$6.54¢3 269
1
#21
90269-05005-00
RIVET
$3.57¢1 787
1
#22
1RC-84154-00-00
GROMMET
$9.51¢4 756
1
#23
90201-06095-00
WASHER, PLATE (replaces 90201-06063-00)
$7.49¢3 744
1
#24
90111-06150-00
BOLT, HEX. SOCKET BUTTON
$2.48¢1 238
1
#25
1RC-8431R-00-00
STAY, SETTING
$45.85¢22 925
1
#26
95817-06016-00
BOLT, FLANGE
$1.79¢894
1
#27
1RC-84527-00-00
DAMPER
$2.42¢1 213
1
