HEADLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

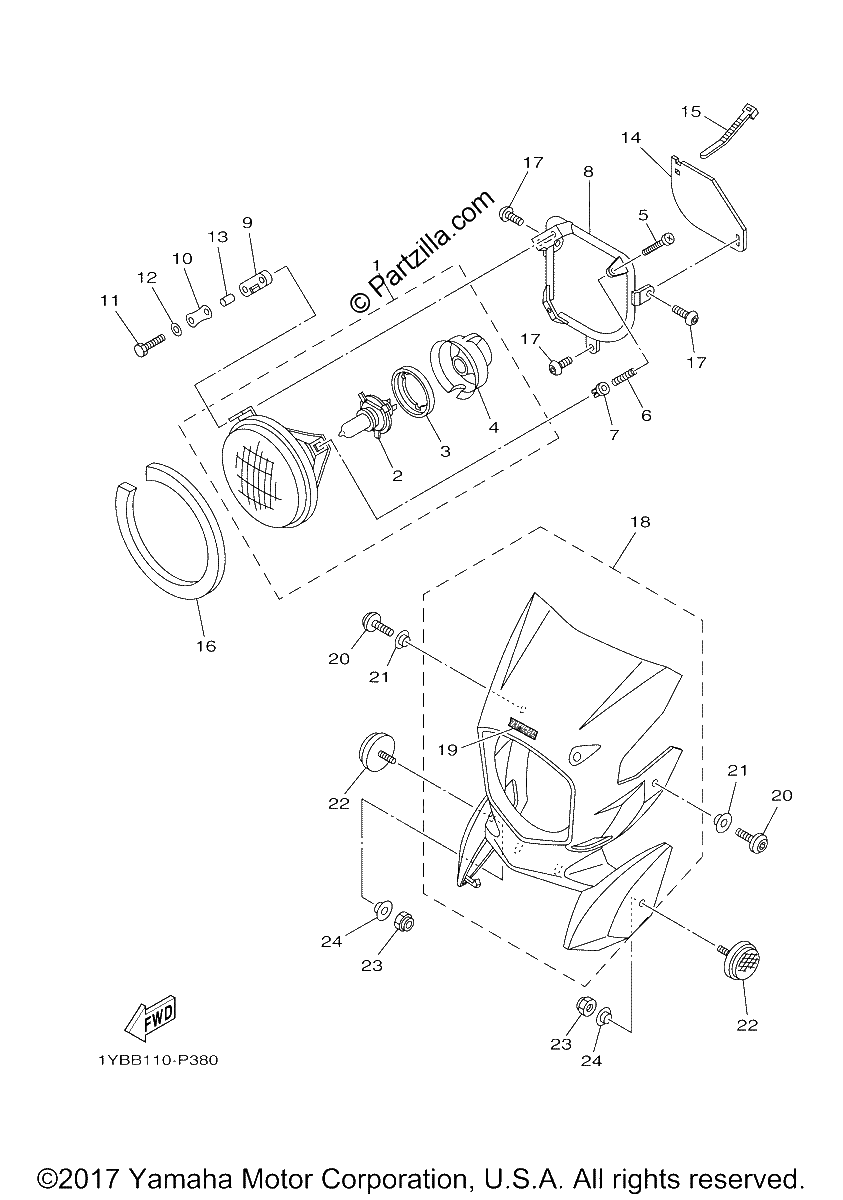

Diagrama de HEADLIGHT

Repuestos

#1
3C5-84320-00-00
LENS ASSY
$374.09¢187 047
1
#2
5V2-84314-00-XX
BULB (12V 60/55W HALOGEN) | (H4) HALOGEN
$82.94¢41 469
1
#3
2F9-84375-00-00
SETTING PLATE, BULB
$14.34¢7 170
1
#4
2F9-84397-01-00
COVER, SOCKET
$29.57¢14 783
1
#5
98580-04055-00
SCREW, LENS FITTING
$7.67¢3 835
1
#6
341-84332-60-00
SPRING, SCREW
$9.35¢4 675
1
#7
4B4-84334-00-00
NUT, ADJUSTING
$4.57¢2 283
1
#8
3C5-84315-00-00
RIM, HEADLIGHT
$124.30¢62 152
1
#9
3C5-84366-00-00
DAMPER, HEADLIGHT 1
$26.32¢13 162
1
#10
3C5-84127-00-00
WASHER, SPECIAL
$6.50¢3 249
1
#11
97002-05020-00
BOLT
$2.71¢1 357
1
#12
92990-05600-00
WASHER, PLATE
$0.61¢305
1
#13
90387-05383-00
COLLAR
$8.14¢4 071
1
#14
3C5-84144-00-00
COVER, HEADLIGHT
$8.21¢4 105
1
#15
90465-10098-00
CLAMP
$2.55¢1 277
1
#16
3C5-84559-00-00
DAMPER
$7.45¢3 726
1
#17
92012-06010-00
BOLT, BUTTON HEAD
$2.68¢1 340
1
#18
3C5-Y8450-T0-00
COVER COMP. ASSY
$149.63¢74 813
1
#19
3WF-2153E-10-00
EMBLEM, YAMAHA
$11.33¢5 664
1
#20
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
1
#21
90387-061M0-00
COLLAR
$7.60¢3 801
1
#22
2EK-85111-00-00
REFLECTOR, FRONT 1
$25.67¢12 834
1
#23
95617-05100-00
NUT, U
$7.30¢3 651
1
#24
90387-05038-00
COLLAR
$21.22¢10 609
1
