SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

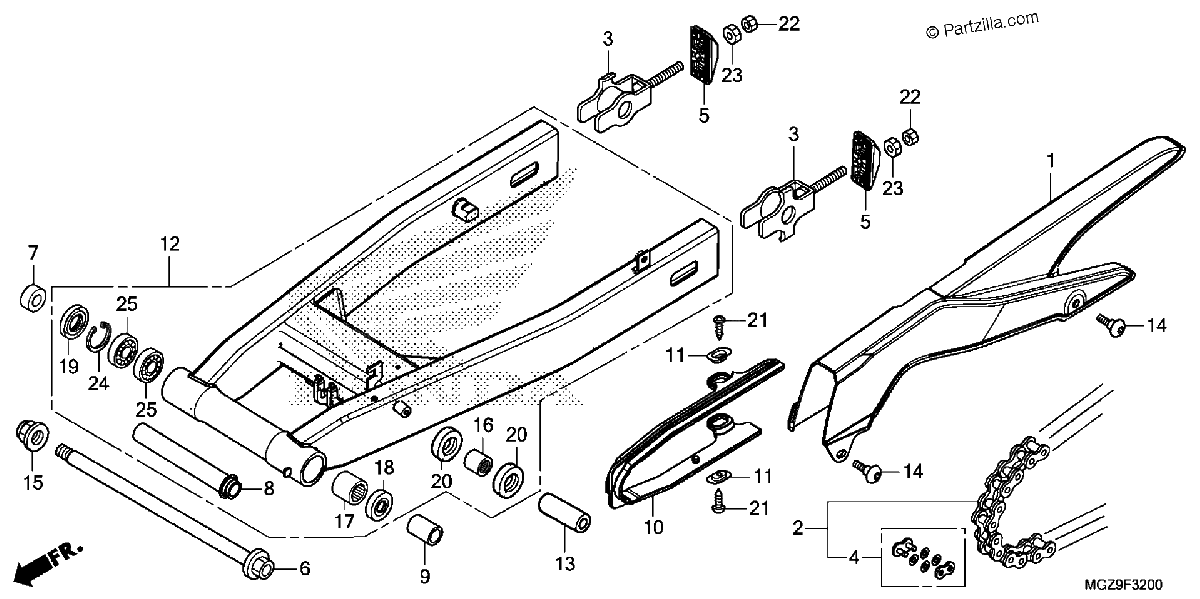

Diagrama de SWINGARM

Repuestos

#1
40510-MGZ-J00
CASE, DRIVE CHAIN
$27.73¢13 863
1
#2
40540-MGS-D31
CHAIN, DRIVE (DID520V0-120ZB) (DAIDO) (STANDARD LINK 112L) (STANDARD LINK 114L)
$297.69¢148 844
1
#3
40543-MGZ-J00
ADJUSTER, CHAIN
$16.59¢8 294
1
#4
40545-MGS-D31
MASTER LINK (DAIDO)
$17.30¢8 650
1
#5
40546-MGZ-J00
CAP, SWINGARM END
$17.61¢8 806
1
#6
52101-MGZ-J00
BOLT, SWINGARM PIVOT
$21.44¢10 719
1
#7
52105-MJ0-000
COLLAR B, SWINGARM PIVOT
$7.24¢3 619
1
#8
52141-MGZ-J00
COLLAR, CENTER PIVOT DISTANCE
$24.00¢12 000
1
#9
52143-MGZ-J00
COLLAR, L PIVOT DISTANCE
$20.65¢10 325
1
#10
52170-MGZ-J00
SLIDER, CHAIN
$21.48¢10 738
1
#11
52171-KR6-000
WASHER, CHAIN SLIDER
$3.33¢1 663
1
#12
52200-MGZ-J00
SWINGARM SUB-ASSY., RR.
$826.85¢413 425
1
#13
52463-MGZ-J00
COLLAR, CUSHION CONNECTING ROD
$6.66¢3 331
1
#14
90115-MGZ-J00
SCREW, SPECIAL (6X14)
$1.38¢688
1
#15
90305-KCJ-951
NUT, U (14MM) (FUJI SEIMITSU)
$7.56¢3 781
1
#16
91071-KV3-005
BEARING, NEEDLE (KOYO)
$28.90¢14 450
1
#17
91071-MT7-003
BEARING, NEEDLE (NTN)
$31.19¢15 594
1
#18
91202-MAL-601
DUST SEAL (25X33X4)
$8.44¢4 219
1
#19
91213-MB2-003
DUST SEAL (22X35X7) (ARAI)
$9.04¢4 519
1
#19
91213-MB2-006
DUST SEAL (22X35X7) (NOK)
$9.04¢4 519
1
#20
91262-KV3-831
DUST SEAL (17X24X5) (ARAI)
$7.51¢3 756
1
#21
93901-25280
SCREW, TAPPING (5X12)
$1.16¢581
1
#22
94002-08000-0S
NUT, HEX. (8MM)
$1.60¢800
1
#23
94030-08000
NUT, HEX. (8MM)
$1.38¢688
1
#24
94520-35000
CIRCLIP, INNER (35MM)
$2.50¢1 250
1
#25
96100-62020-10
BEARING, RADIAL BALL (6202)
$16.95¢8 475
1
