LOWER COWL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

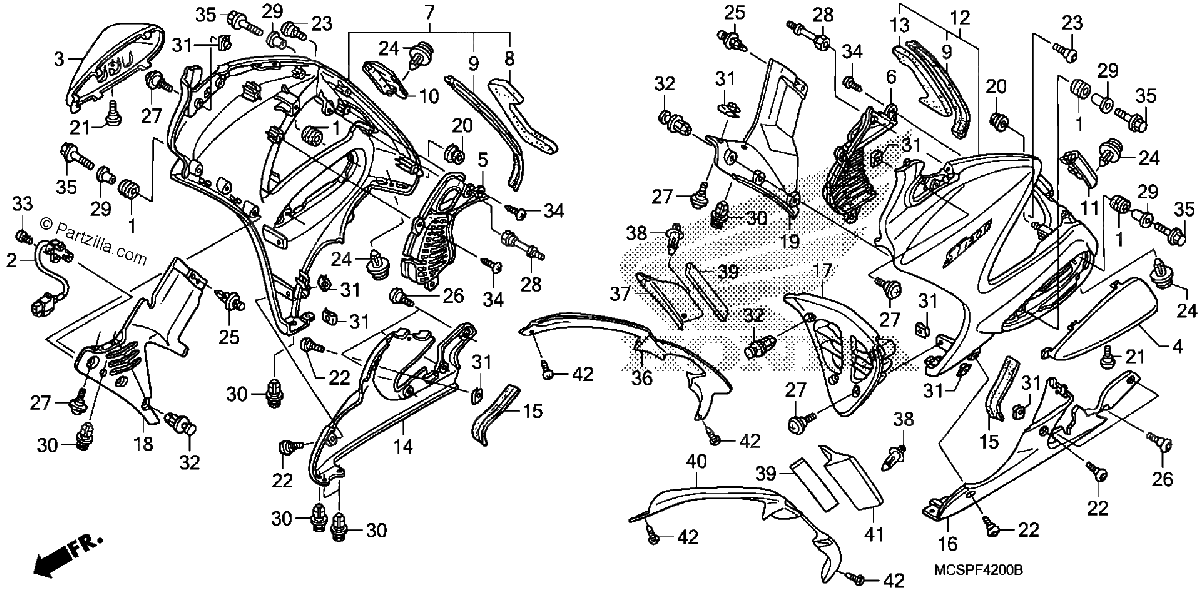

Diagrama de LOWER COWL

Repuestos

#1
17622-GB7-900
RUBBER, CUSHION
$5.81¢2 906
1
#2
37890-MCS-G01
SENSOR, OPEN AIR TEMPERATURE
$74.13¢37 063
1
#3
64260-MCS-G01
COVER, R. ENGINE GUARD
$27.57¢13 788
1
#4
64265-MCS-G01
COVER, L. ENGINE GUARD
$27.57¢13 788
1
#5
64285-MCS-G00
LOUVER, R. COWL SIDE
$37.40¢18 700
1
#6
64295-MCS-G00
LOUVER, L. COWL SIDE
$37.40¢18 700
1
#7
64300-MCS-A50ZA
COWL SET, R. MIDDLE (TYPE1) (WL)
$872.01¢436 006
1
#7
64300-MCS-A30ZA
COWL SET, R. MIDDLE (TYPE1) (WL)
$985.10¢492 550
1
#8
64321-MCS-G00
MAT, R. MIDDLE COWL
$29.14¢14 569
1
#9
64322-MCS-G00
SEAL, MIDDLE COWL
$15.26¢7 631
1
#10
64323-MCS-G00ZH
LID, R. MIDDLE COWL *NHB01* (GRAPHITE BLACK)
$27.32¢13 663
1
#10
64323-MCS-G00ZD
LID, R. MIDDLE COWL *NH138* (SHASTA WHITE)
$44.63¢22 313
1
#11
64328-MCS-G00ZD
LID, L. MIDDLE COWL *NH138* (SHASTA WHITE)
$44.63¢22 313
1
#11
64328-MCS-G00ZH
LID, L. MIDDLE COWL *NHB01* (GRAPHITE BLACK)
$27.32¢13 663
1
#12
64350-MCS-A30ZA
COWL SET, L. MIDDLE (TYPE1) (WL)
$985.10¢492 550
1
#12
64350-MCS-A50ZA
COWL SET, L. MIDDLE (TYPE1) (WL)
$872.01¢436 006
1
#13
64371-MCS-G00
MAT, L. MIDDLE COWL
$29.14¢14 569
1
#14
64400-MCS-760
COWL, R. (LOWER)
$469.06¢234 531
1
#15
64412-MCS-G00
SEAL, COWL (LOWER)
$7.30¢3 650
1
#16
64450-MCS-760
COWL, L. (LOWER)
$469.06¢234 531
1
#17
64510-MCS-G00
COWL (LOWER) (INNER)
$81.19¢40 594
1
#18
64592-MCS-G00
COWL, R. (INNER)
$50.67¢25 338
1
#19
64597-MCS-G00
COWL, L. (INNER)
$50.67¢25 338
1
#20
83601-MN5-000
GROMMET, SIDE COVER
$3.65¢1 825
1
#21
90106-KY2-701
SCREW, PAN (6X11)
$5.15¢2 575
1
#22
90106-MBY-000
SCREW, SPECIAL (5X12)
$3.44¢1 719
1
#23
90113-MM5-000
SCREW, PAN (6X14)
$3.75¢1 875
1
#24
90683-MBW-003
CLIP, BODY
$2.51¢1 256
1
#25
90116-SP0-003
CLIP, BUMPER SEAL
$5.72¢2 863
1
#26
90118-MR1-000
SCREW, PAN (6X14)
$3.75¢1 875
1
#27
90133-MCS-G00
SCREW, PAN (5X13)
$1.39¢694
1
#28
90135-MCS-G01
BOLT, MIDDLE COWL
$15.14¢7 569
1
#29
90501-124-000
WASHER, FR. COVER SETTING
$4.13¢2 063
1
#30
90657-SB0-003
CLIP, SPLASH SHIELD
$6.39¢3 194
1
#31
90677-KAN-961
NUT, CLIP (5MM)
$4.94¢2 469
1
#32
91549-MW0-790ZA
CLIP, PANEL FIXING *NH1* (BLACK)
$5.13¢2 563
1
#33
93903-24280
SCREW, TAPPING (4X10)
$1.74¢869
1
#34
93903-24380
SCREW, TAPPING (4X12)
$1.16¢581
1
#35
96001-06016-00
BOLT, FLANGE (6X16)
$1.35¢675
1
#36
08P73-MCS-80011
DEFLECTOR A, R. SIDE
No Disponible
1
#36
64381-MCS-A32
DEFLECTOR A, R. SIDE
No Disponible
1
#37
64382-MCS-A32
DEFLECTOR B, R. SIDE
$74.94¢37 469
1
#37
08P73-MCS-80013
DEFLECTOR B, R. SIDE
$74.94¢37 469
1
#38
64383-MCS-A32
RIVET, PUSH
$1.96¢981
1
#38
08P73-MCS-80015
RIVET, PUSH
$1.96¢981
1
#39
08P73-MCS-80016
TAPE, VELCRO (MALE)
No Disponible
1
#39
64384-MCS-A32
TAPE, VELCRO (MALE)
No Disponible
1
#40
64391-MCS-A32
DEFLECTOR A, L. SIDE
No Disponible
1
#40
08P73-MCS-80012
DEFLECTOR A, L. SIDE
No Disponible
1
#41
64392-MCS-A32
DEFLECTOR B, L. SIDE
$74.94¢37 469
1
#41
08P73-MCS-80014
DEFLECTOR B, L. SIDE
$74.94¢37 469
1
#42
93903-44280
SCREW, TAPPING (4X10)
$1.16¢581
1
