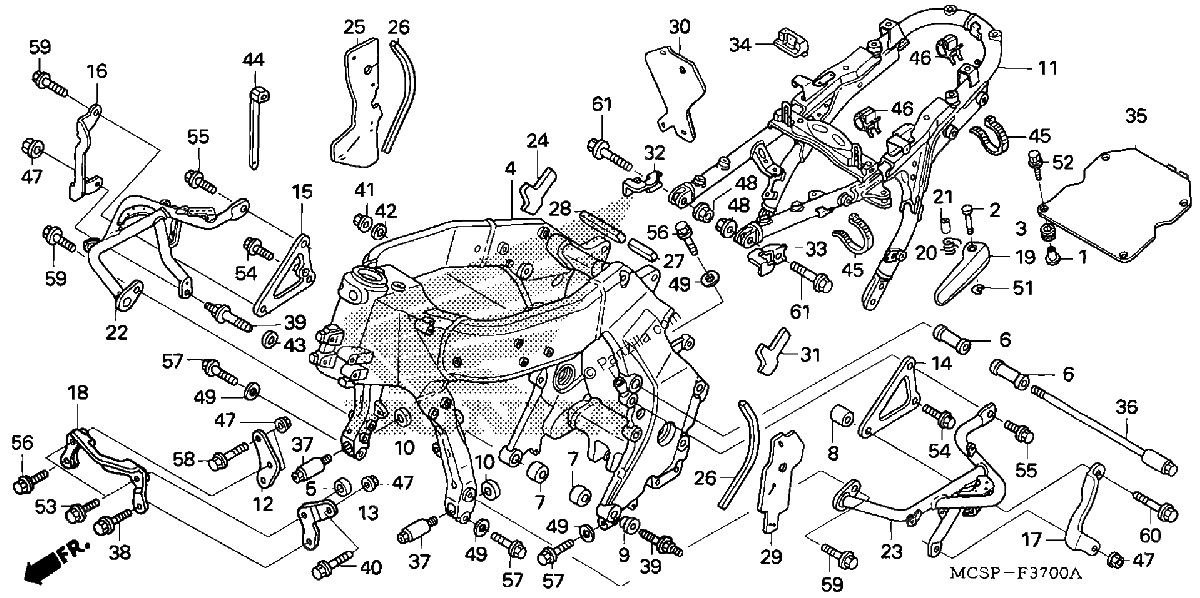

Diagrama de FRAME

Repuestos

#1
19343-MAL-600
COLLAR, THERMOSTAT STAY
$3.17¢1 588
1
#2
28321-427-770
PIN, KICK STARTER
$8.81¢4 406
1
#3
38119-MM8-000
GROMMET, HORN STAY
$6.11¢3 056
1
#4
50100-MCS-L02ZA
FRAME *NH146M* (ACCURATE SILVER METALLIC)
$3537.70¢1 768 850
1
#5
50190-MCS-G00
COLLAR, FR. ENGINE HANGER
$6.45¢3 225
1
#6
50191-MCS-G03
COLLAR, RR. ENGINE HANGER (UPPER)
$13.89¢6 944
1
#7
50192-MCS-760
COLLAR, RR. ENGINE HANGER (LOWER)
$46.50¢23 250
1
#8
50193-MCS-G00
COLLAR, L. RR. ENGINE HANGER CENTER
$3.95¢1 975
1
#9
50195-MCS-000
COLLAR, L. RR. ENGINE MOUNT (LOWER)
$11.19¢5 594
1
#10
50216-MCS-G02
COLLAR, FR. ENGINE HANGER (LOWER)
$5.49¢2 744
1
#11
50240-MCS-A30
RAIL, SEAT
$673.24¢336 619
1
#12
50310-MCS-G00
PLATE, R. FR. ENGINE HANGER
$12.11¢6 056
1
#13
50311-MCS-G00
PLATE, L. FR. ENGINE HANGER
$18.38¢9 188
1
#14
50312-MCS-G00
PLATE, RR. ENGINE HANGER
$24.90¢12 450
1
#15
50312-MCS-L00
PLATE, RR. ENGINE HANGER
$30.84¢15 419
1
#16
50315-MCS-A30
PLATE, R. STIFFENER
$35.77¢17 888
1
#17
50316-MCS-760
PLATE, L. STIFFENER
$14.52¢7 262
1
#18
50318-MCS-760
PLATE, CROSS HANGER
$50.80¢25 400
1
#19
50400-MT3-000ZE
GRIP, MAIN STAND *NH105* (MAT BLACK)
$63.46¢31 731
1
#20
50617-MM5-000
SPRING, R. STEP RETURN
$5.81¢2 906
1
#21
53103-GN5-900
COLLAR, HANDLE SETTING
$7.72¢3 863
1
#22
64206-MCS-A30
GUARD, R. ENGINE
$200.47¢100 238
1
#23
64216-MCS-A30
GUARD, L. ENGINE
$193.34¢96 669
1
#24
64324-MCS-G00
MAT, R. FRAME
$18.79¢9 394
1
#26
64363-MCS-G00
MAT A, HEAT GUARD
$5.22¢2 613
1
#27
64364-MCS-G00
MAT B, HEAT GUARD
$2.40¢1 200
1
#28
64365-MCS-G00
MAT C, HEAT GUARD
$3.95¢1 975
1
#31
64374-MCS-G00
MAT, L. FRAME
$18.79¢9 394
1
#32
77116-MCS-G00
PLATE, R. SEAT STOPPER
$6.23¢3 113
1
#33
77117-MCS-G00
PLATE, L. SEAT STOPPER
$6.23¢3 113
1
#34
77205-MCS-G00
RUBBER, SEAT SETTING
$8.34¢4 169
1
#35
80150-MCS-A30
STAY, AMPLIFIER
$44.36¢22 181
1
#36
90102-MCS-G00
BOLT, ENGINE MOUNTING (10X328)
$65.00¢32 500
1
#37
90112-MCS-G04
BOLT, FLANGE (12X36)
$38.10¢19 050
1
#38
90131-MCS-760
BOLT, SPECIAL FLANGE (8X30)
$6.86¢3 431
1
#39
90134-MCS-G01
BOLT, FLANGE (12X67)
$17.21¢8 606
1
#39
95701-08040-00
BOLT, FLANGE (8X40)
$1.54¢769
1
#40
90150-GN1-000
BOLT, FLANGE (8X47)
$7.28¢3 638
1
#41
90304-GE8-003
NUT, U (10MM) (FUSE RASHI)
$4.45¢2 225
1
#42
90405-752-830
WASHER (10.5X27)
$10.70¢5 350
1
#42
90405-758-L00
WASHER (10.5X27X4)
$10.70¢5 350
1
#43
90440-GT4-970
WASHER, PLAIN (12MM)
$3.36¢1 681
1
#45
90679-SG9-E01
BAND, SUCTION HOSE (BLACK)
$4.58¢2 288
1
#46
90690-GHB-651
CLIP, CABLE (15MM)
$2.81¢1 406
1
#47
94050-08000
NUT, FLANGE (8MM)
$1.15¢575
1
#48
94050-10000
NUT, FLANGE (10MM)
$1.90¢950
1
#49
94102-08000
WASHER, PLAIN (8MM)
$1.15¢575
1
#51
94540-06018
E-RING (6MM)
$3.65¢1 825
1
#52
93404-06025-00
BOLT-WASHER (6X25)
$1.41¢706
1
#54
96300-08020-00
BOLT, FLANGE (8X20)
$2.03¢1 013
1
#55
96300-08025-00
BOLT, FLANGE (8X25)
$2.09¢1 044
1
#56
96300-08035-00
BOLT, FLANGE (8X35)
$2.52¢1 263
1
#57
95701-08040-08
BOLT, FLANGE (8X40)
$2.71¢1 356
1
#57
96300-08040-08
BOLT, FLANGE (8X40)
$2.71¢1 356
1
#58
96300-08050-00
BOLT, FLANGE (8X50)
$2.89¢1 444
1
#59
96300-10025-00
BOLT, FLANGE (10X25)
$3.08¢1 538
1
#60
96300-10050-00
BOLT, FLANGE (10X50)
$2.07¢1 037
1
#61
96400-10065-00
BOLT, FLANGE (10X65)
$3.73¢1 863
1
