WINDSCREEN

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

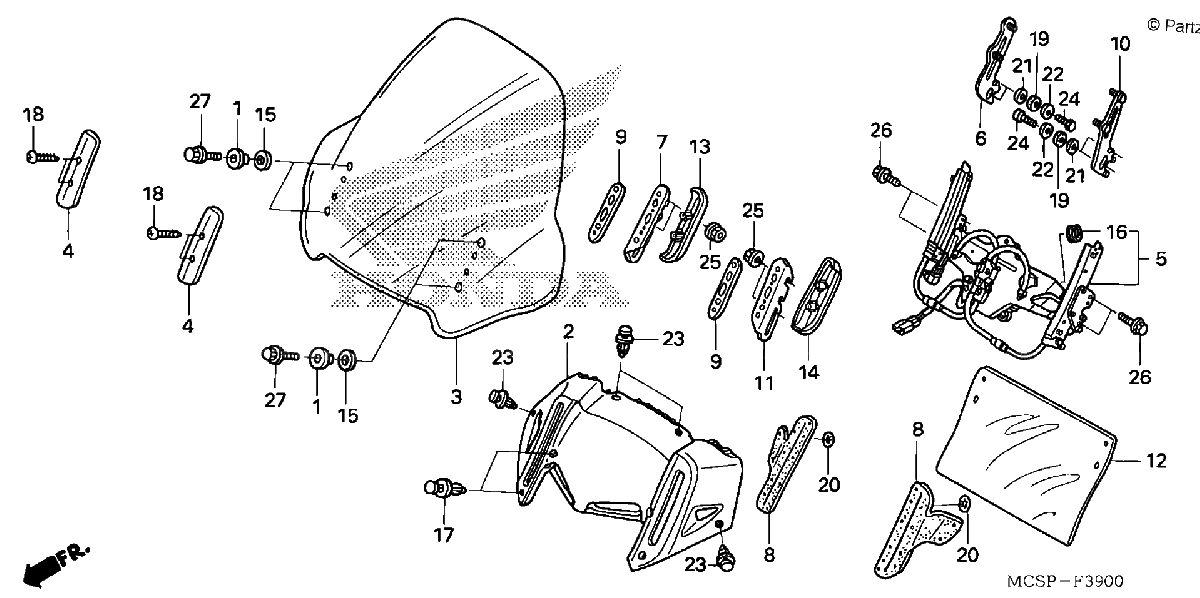

Diagrama de WINDSCREEN

Repuestos

#1
61104-435-000
COLLAR, SIDE COVER
$5.63¢2 818
1
#2
64110-MCS-G01
COWL, WINDSCREEN (INNER)
$55.14¢27 571
1
#3
64150-MCS-305
WINDSCREEN (COO)
$787.73¢393 864
1
#3
64150-MCS-G00
WINDSCREEN
$787.73¢393 864
1
#4
64151-MCS-G00
COVER, WINDSCREEN
$13.93¢6 963
1
#5
64170-MCS-G01
ADJUSTER ASSY., WINDSCREEN
$866.25¢433 124
1
#6
64171-MCS-G01
STAY, R. WINDSCREEN
$21.98¢10 988
1
#7
64172-MCS-G00
BRACKET, R. WINDSCREEN
$19.46¢9 729
1
#8
64174-MCS-G00
SEAL, WINDSCREEN ADJUSTER
$15.87¢7 935
1
#9
64175-MCS-G00
RUBBER, WINDSCREEN ADJUSTER
$5.04¢2 519
1
#10
64176-MCS-G01
STAY, L. WINDSCREEN
$21.98¢10 988
1
#11
64177-MCS-G00
BRACKET, L. WINDSCREEN
$19.46¢9 729
1
#12
64178-MCS-G00
COVER, WINDSCREEN ADJUSTER
$34.15¢17 077
1
#13
64183-MCS-G00
COVER, R. WINDSCREEN BRACKET
$10.86¢5 428
1
#14
64188-MCS-G00
COVER, L. WINDSCREEN BRACKET
$10.86¢5 428
1
#15
90511-MCS-G50
WASHER (9X17X1)
$2.18¢1 092
1
#15
64509-MK4-000
RETAINER, PLASTIC
$2.18¢1 092
1
#16
64527-MBC-000
GROMMET A, WINDSCREEN
$4.81¢2 403
1
#17
90116-MCS-G00
RIVET, PUSH
$1.64¢822
1
#18
90126-MCS-G00
SCREW, PAN (4X25)
$1.28¢638
1
#19
90148-SA0-000
WASHER, BUMPER BOLT
$4.04¢2 018
1
#20
90301-ST0-003
NUT, PUSH (3MM)
$3.74¢1 869
1
#20
90310-SB2-003
NUT, SPEED
$3.74¢1 869
1
#21
90501-MT2-000
WASHER
$2.43¢1 213
1
#22
90512-MBY-000
WASHER (6X20)
$5.83¢2 915
1
#23
90657-SB0-003
CLIP, SPLASH SHIELD
$5.88¢2 938
1
#24
92101-06014-0A
BOLT, HEX. (6X14)
$1.71¢857
1
#25
94050-06070
NUT, FLANGE (6MM)
$1.71¢857
1
#26
96001-06016-00
BOLT, FLANGE (6X16)
$1.24¢621
1
#27
96001-06018-07
BOLT, FLANGE (6X18)
$1.49¢747
1
