FRONT WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

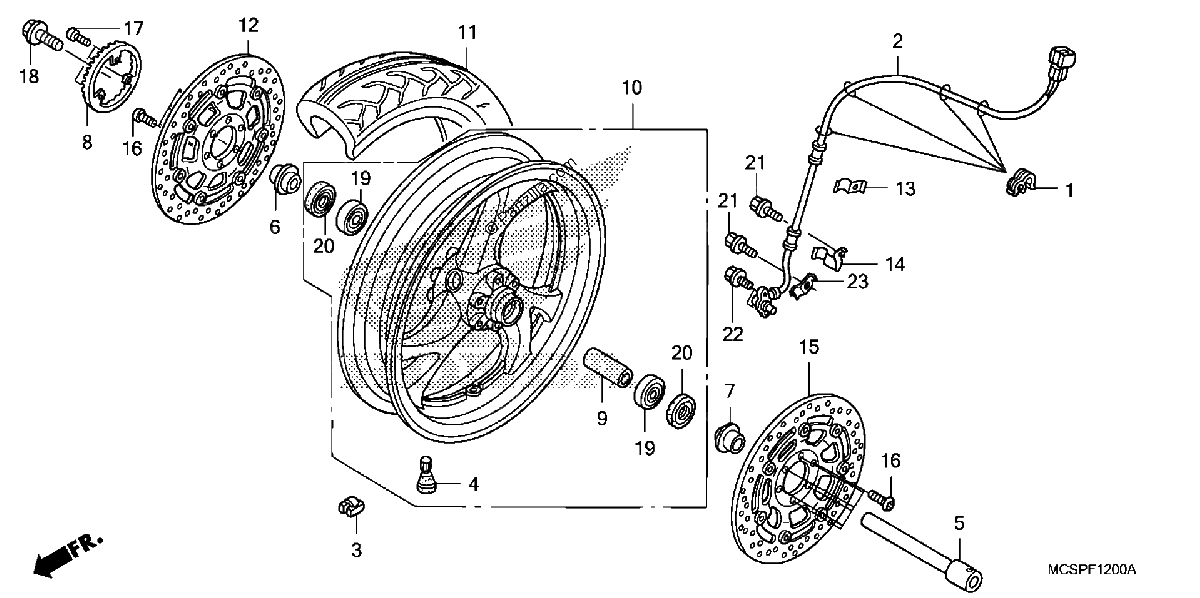

Diagrama de FRONT WHEEL

Repuestos

#1
17368-KV7-671
CLAMP, PIPE
$2.99¢1 494
1
#2
38520-MCS-D91
SENSOR, FR. WHEEL SPEED
$184.88¢92 438
1
#3
42704-MCF-D60
WEIGHT, BALANCE (10G)
$14.79¢7 394
1
#3
42705-MCF-D60
WEIGHT, BALANCE (20G)
$19.80¢9 900
1
#3
42706-MCF-D60
WEIGHT, BALANCE (30G)
$16.81¢8 406
1
#4
42753-ML7-003
VALVE, RIM (BS)
$14.79¢7 394
1
#5
44301-MCS-G01
AXLE, FR. WHEEL
$89.88¢44 938
1
#6
44311-MCS-G00
COLLAR, R. FR. WHEEL SIDE
$30.60¢15 300
1
#7
44312-MCS-G00
COLLAR, L. FR. WHEEL SIDE
$24.01¢12 006
1
#8
44515-MCS-R10
RING, FR. PULSER
$55.71¢27 856
1
#9
44620-MCS-G00
COLLAR, FR. AXLE DISTANCE
$31.54¢15 769
1
#10
44650-MCS-306
WHEEL SUB-ASSY., FR. (COO)
$1138.26¢569 131
1
#10
44650-MCS-760
WHEEL SUB-ASSY., FR.
$1138.26¢569 131
1
#11
44711-MCS-G04
TIRE, FR. (120/70ZR18 M/C 59W) (BS)
$296.46¢148 231
1
#12
45120-MCS-G01
DISK, R. FR. BRAKE
$673.26¢336 631
1
#13
45158-MCP-900
CLAMP
$7.75¢3 875
1
#14
45161-MCW-D10
CLAMP, SPEED SENSOR CORD
$6.23¢3 113
1
#15
45220-MCS-G01
DISK, L. FR. BRAKE
$673.26¢336 631
1
#16
90106-MT3-003
BOLT, DISK (6X17) (SAGA)
$4.61¢2 306
1
#17
90131-KPB-751
BOLT, TORX (5X10)
$3.43¢1 713
1
#18
90305-MCJ-000
BOLT, FR. AXLE
$18.34¢9 169
1
#19
91053-MCS-G01
BEARING, RADIAL BALL (6205UU)
$16.60¢8 300
1
#20
91252-MCS-G01
DUST SEAL (34X52X10)
$13.13¢6 563
1
#21
96001-06010-07
BOLT, FLANGE (6X10)
$2.09¢1 044
1
#22
96001-06014-00
BOLT, FLANGE (6X14)
$2.31¢1 156
1
#23
45182-MBT-D50
CLAMP, SENSOR CORD
$1.34¢669
1
