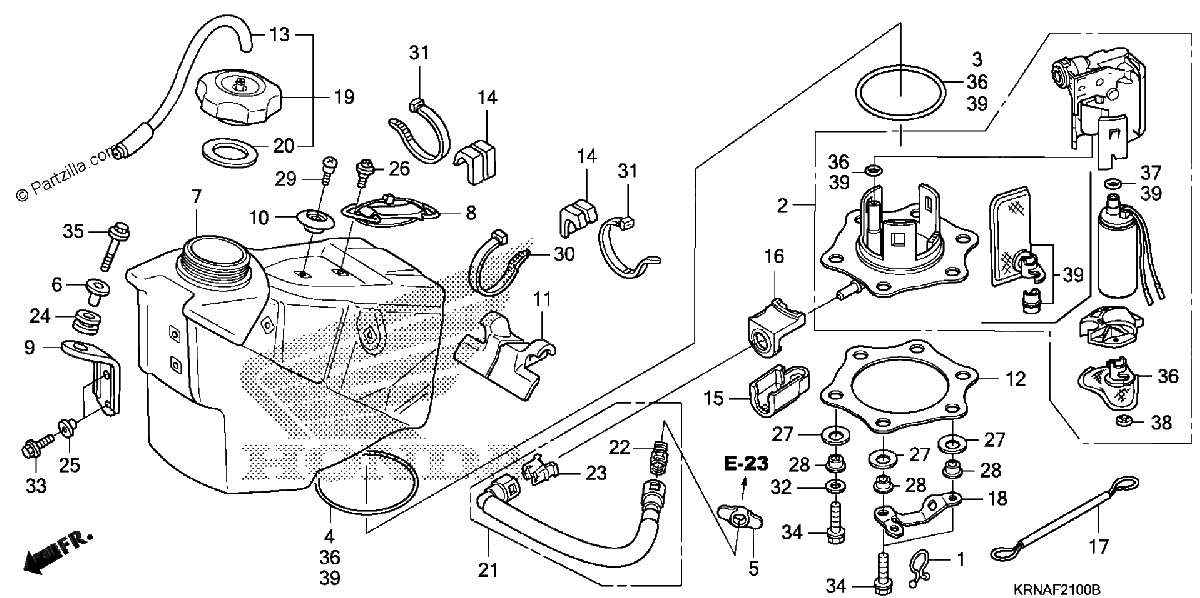

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CLIP, BREATHER TUBE PROTECTOR
$11.67¢5 836
#1
CLAMP, FUEL HOSE (18.5MM)
$13.12¢6 561
#2
PUMP ASSY., FUEL (MSDS)
$392.02¢196 012
#3
O-RING (3.7X73.9)
$13.02¢6 509
#4
O-RING (2.4X88.4)
$11.93¢5 963
#5
RUBBER, FUEL JOINT
$2.75¢1 374
#6
COLLAR, TANK SETTING
$9.71¢4 853
#7
TANK, FUEL
No Disponible
#8
BAND, Rear TANK
$17.42¢8 711
#9
STAY, FR. FUEL TANK
$9.23¢4 617
#10
COLLAR, FR. SEAT
$6.47¢3 237
#11
RUBBER, FUEL TANK MOUNTING
No Disponible
#12
PLATE, FUEL PUMP
$21.91¢10 954
#13
TUBE, FUEL CAP BREATHER
$7.16¢3 582
#14
RUBBER, TANK SIDE MOUNTING
$7.35¢3 674
#15
COVER, FUEL CONNECTOR
$8.31¢4 157
#16
RUBBER, FUEL CONNECTOR
$5.31¢2 657
#17
CABLE, FUEL TANK STOPPER
$9.14¢4 571
#18
GUIDE, STOPPER CABLE
$9.97¢4 985
#19
CAP ASSY., FUEL TANK
$107.97¢53 987
#20
GASKET, FUEL CAP
$5.37¢2 685
#21
HOSE ASSY., FUEL FEED
$104.62¢52 308
#22
RETAINER (GREEN) (TOKAI)
$3.69¢1 846
#23
RETAINER (BLUE GREEN) (TOKAI)
$3.69¢1 846
#24
RUBBER, MUFFLER
$4.32¢2 162
#25
COLLAR
$2.77¢1 386
#26
SCREW (5X12)
$1.98¢989
#27
WASHER, CONICAL SPRING FUEL PUMP
$3.15¢1 576
#28
COLLAR, FUEL PUMP
$5.21¢2 605
#29
SCREW, SPECIAL (5MM)
$3.36¢1 679
#30
TY-RAP, CABLE (240MM)
$2.33¢1 167
#31
TY-RAP, CABLE
$2.81¢1 403
#32
WASHER, PLAIN (6MM)
$0.77¢385
#32
WASHER, PLAIN (6MM)
$0.77¢385
#32
WASHER, PLAIN (6MM)
$0.77¢385
#33
BOLT, FLANGE (6X16)
$1.24¢621
#34
BOLT, FLANGE (6X20)
$1.47¢736
#35
BOLT (6X30)
$3.10¢1 553
#37
O-RING (8.6X1.9)
$0.66¢328
#39
FILTER KIT, FUEL
$94.17¢47 087
