WIRE HARNESS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

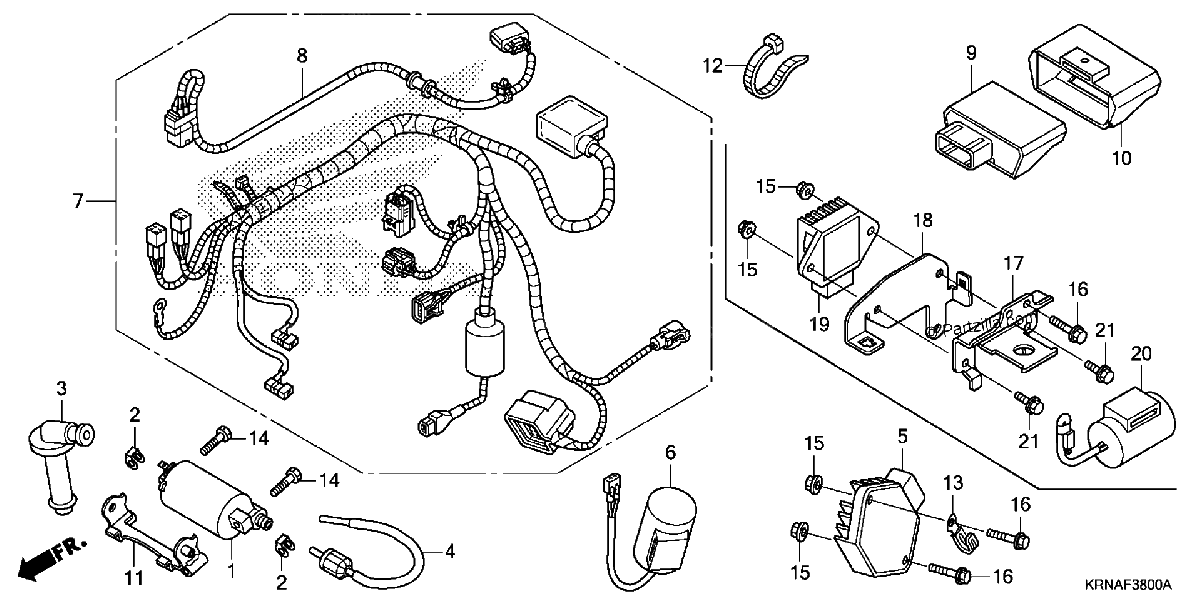

Diagrama de WIRE HARNESS

Repuestos

#1
30500-ML7-013
COIL, IGNITION
$102.33¢51 163
1
#2
30520-ML7-000
SPACER, IGNITION COIL
$4.58¢2 288
1
#3
30700-KRN-A41
CAP ASSY., NOISE SUPPRESSOR
$54.83¢27 413
1
#4
30731-MEN-A30
WIRE ASSY., IGNITION
$23.36¢11 681
1
#7
32100-KRN-A70
WIRE HARNESS
$468.49¢234 244
1
#8
32101-MEN-A40
SUB-HARNESS, FUEL PUMP
$24.86¢12 431
1
#9
38770-KRN-A72
PGM-FI UNIT
$988.91¢494 456
1
#9
38770-KRN-A73
PGM-FI UNIT
$988.91¢494 456
1
#10
38771-MEN-A30
SUSPENSION, UNIT (PGM-F1)
No Disponible
1
#11
50131-KRN-A40
STAY, IGNITION COIL
No Disponible
1
#12
90620-SB2-003
BAND, WIRE HARNESS
$31.72¢15 862
1
#14
92101-06020-4J
BOLT, HEX. (6X20)
$1.79¢894
1
#15
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#16
96001-06020-00
BOLT, FLANGE (6X20)
$1.60¢800
1
#17
31411-KRN-A70
STAY, CONDENSOR
$19.63¢9 813
1
#18
31413-KRN-A70
HOLDER, CONNECTOR
$9.69¢4 844
1
#19
31600-KRN-A71
RECTIFIER ASSY., REGULATE
$361.93¢180 963
1
#20
31700-KRN-A71
CONDENSER UNIT
$358.11¢179 056
1
#21
96001-06016-00
BOLT, FLANGE (6X16)
$1.35¢675
1
