PEDAL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

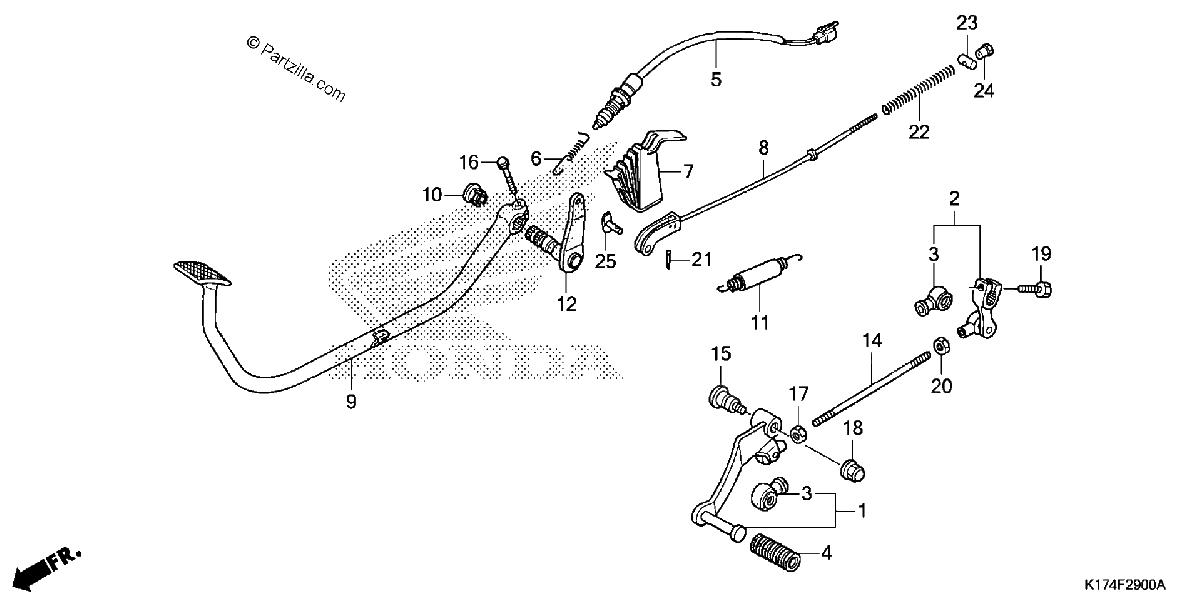

Diagrama de PEDAL

Repuestos

#001
24705-KEB-305
PEDAL, GEARSHIFT (COO)
$97.40¢48 700
1
#1
24705-KEB-305
PEDAL, GEARSHIFT (COO)
$97.40¢48 700
1
#001
24705-KEB-900
PEDAL, GEARSHIFT
$97.40¢48 700
1
#2
24710-KEB-901
ARM, GEARSHIFT
$64.61¢32 306
1
#002
24710-KEB-901
ARM, GEARSHIFT
$64.61¢32 306
1
#003
24724-422-000
COVER, DUST
$8.09¢4 044
1
#3
24724-422-000
COVER, DUST
$8.09¢4 044
1
#4
24781-KR3-770
RUBBER, GEARSHIFT PEDAL
$4.11¢2 056
1
#004
24781-KR3-770
RUBBER, GEARSHIFT PEDAL
$4.11¢2 056
1
#005
35350-KR3-672
SWITCH ASSY., RR. STOP
$17.44¢8 719
1
#5
35350-KR3-672
SWITCH ASSY., RR. STOP
$17.44¢8 719
1
#006
35357-KR3-670
SPRING, STOP SWITCH
$6.20¢3 100
1
#6
35357-KR3-670
SPRING, STOP SWITCH
$6.20¢3 100
1
#7
43411-KR3-000
COVER, Rear BRAKE ARM
$22.36¢11 181
1
#007
43411-KR3-000
COVER, Rear BRAKE ARM
$22.36¢11 181
1
#008
43451-KEN-670
ROD, RR. BRAKE
$26.05¢13 025
1
#8
43451-KEN-670
ROD, RR. BRAKE
$26.05¢13 025
1
#9
46500-KEN-305
PEDAL, Rear BRAKE (COO)
$123.91¢61 956
1
#009
46500-KEN-305
PEDAL, Rear BRAKE (COO)
$123.91¢61 956
1
#10
46511-KR3-000
CAP, RR. BRAKE SPINDLE
$6.80¢3 400
1
#010
46511-KR3-000
CAP, RR. BRAKE SPINDLE
$6.80¢3 400
1
#11
46513-KR3-600
SPRING Assembly., Rear BRAKE RETURN
$10.82¢5 413
1
#011
46513-KR3-600
SPRING Assembly., Rear BRAKE RETURN
$10.82¢5 413
1
#12
46515-KR3-000
SHAFT, Rear BRAKE PIVOT
$80.20¢40 100
1
#012
46515-KR3-000
SHAFT, Rear BRAKE PIVOT
$80.20¢40 100
1
#014
90065-KR3-000
BOLT, TIE ROD
$12.93¢6 463
1
#14
90065-KR3-000
BOLT, TIE ROD
$12.93¢6 463
1
#015
90115-KAF-000
BOLT, CHANGE PIVOT
$22.93¢11 463
1
#15
90115-KAF-000
BOLT, CHANGE PIVOT
$22.93¢11 463
1
#16
90123-MM2-000
BOLT, SPECIAL FLANGE (8X25)
$4.89¢2 444
1
#016
90123-MM2-000
BOLT, SPECIAL FLANGE (8X25)
$4.89¢2 444
1
#017
90201-700-000
NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)
$0.99¢494
1
#17
90201-700-000
NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)
$0.99¢494
1
#18
90208-438-000
NUT, CAP (8MM)
$3.65¢1 825
1
#018
90208-438-000
NUT, CAP (8MM)
$3.65¢1 825
1
#19
92101-06020-0A
BOLT, HEX. (6X20)
$1.34¢669
1
#019
92101-06020-0A
BOLT, HEX. (6X20)
$1.34¢669
1
#020
94002-06020-0S
NUT, HEX. (6MM)
$1.41¢706
1
#20
94002-06020-0S
NUT, HEX. (6MM)
$1.41¢706
1
#021
94201-20120
PIN, SPLIT (2.0X12)
$1.27¢638
1
#21
94201-20120
PIN, SPLIT (2.0X12)
$1.27¢638
1
#022
95014-73100
SPRING A, BRAKE ROD
$1.66¢831
1
#22
95014-73100
SPRING A, BRAKE ROD
$1.66¢831
1
#22
95014-73300
SPRING C, BRAKE ROD
No Disponible
1
#022
95014-73300
SPRING C, BRAKE ROD
No Disponible
1
#023
95015-32001
JOINT B, BRAKE ARM
$1.21¢606
1
#23
95015-32001
JOINT B, BRAKE ARM
$1.21¢606
1
#24
95015-42000
NUT B, BRAKE ROD ADJUSTING
$2.48¢1 238
1
#024
95015-42000
NUT B, BRAKE ROD ADJUSTING
$2.48¢1 238
1
#025
95015-53000
PIN C, JOINT
$3.71¢1 856
1
#25
95015-53000
PIN C, JOINT
$3.71¢1 856
1
