HANDLEBAR TOP BRIDGE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

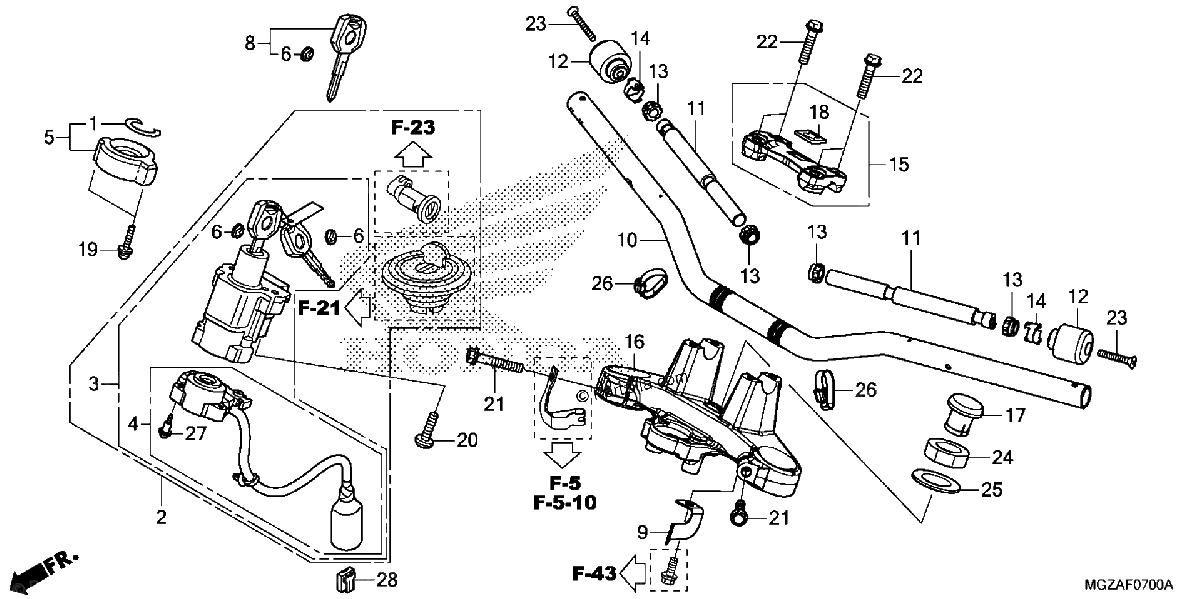

Diagrama de HANDLEBAR TOP BRIDGE

Repuestos

#1
30433-MBW-602
SEAL, IGNITION SWITCH
$3.65¢1 825
1
#2
35010-MGZ-A00
LOCK SET
$314.45¢157 225
1
#2
35010-MGZ-A01
LOCK SET
$314.45¢157 225
1
#3
35100-MGZ-A01
SWITCH Assembly., COMBINATION & LOCK
$388.84¢194 419
1
#3
35100-MGZ-A02
SWITCH Assembly., COMBINATION & LOCK (MSDS)
$388.84¢194 419
1
#4
35101-MGZ-J01
BASE, CONTACT
$54.81¢27 406
1
#5
35106-MAT-A00
COVER, COMBINATION SWITCH
$12.21¢6 106
1
#6
35113-MFJ-D01
EMBLEM, KEY
$3.65¢1 825
1
#8
35121-MGS-A31
KEY, BLANK
$27.43¢13 713
1
#9
35910-MGZ-J00
GUIDE, L. FR. WIRE
$3.04¢1 519
1
#10
53100-MGZ-306
HANDLEBAR (COO)
$64.08¢32 038
1
#11
53104-KYJ-900
WEIGHT B, HANDLEBAR
$8.10¢4 050
1
#12
53104-MGZ-J00
WEIGHT, HANDLEBAR
$12.30¢6 150
1
#13
53107-MY1-000
RUBBER B, HANDLE WEIGHT
$8.49¢4 244
1
#14
53108-KR3-770
RING, HANDLE WEIGHT SNAP
$7.55¢3 775
1
#15
53130-MGS-D30ZB
HOLDER ASSY., HANDLE (UPPER) *NH303M* (MAT AXIS GRAY METALLIC)
$48.71¢24 356
1
#16
53230-MGZ-J40
BRIDGE, FORK TOP
$128.61¢64 306
1
#17
53232-MJ4-670
CAP, STEERING STEM NUT
$15.70¢7 850
1
#18
86150-KPG-901
EMBLEM, PRODUCT (MARUI)
$4.39¢2 194
1
#18
86150-KPG-902
EMBLEM, PRODUCT (UEHARA)
$5.16¢2 581
1
#19
90020-MBW-610
SCREW-WASHER (5X22)
$3.30¢1 650
1
#20
90107-MBG-000
BOLT, ONE-WAY (8MM)
$3.65¢1 825
1
#21
90108-KZZ-900
BOLT, FLANGE (8X40)
$0.94¢469
1
#22
90111-362-000
BOLT, FLANGE (8X36)
$5.83¢2 913
1
#23
90191-KYJ-900
SCREW, OVAL (6X50)
$1.27¢638
1
#24
90304-KGA-900
NUT, STEERING STEM
$3.69¢1 844
1
#25
90503-KGA-900
WASHER, STEERING STEM
$1.93¢963
1
#26
90650-KW3-000
BAND, WIRE
$5.42¢2 713
1
#27
91059-KY2-711
SCREW, TAPPING (3X16)
$3.65¢1 825
1
#28
91554-SM4-003
HOLDER, BRACKET (RED)
$10.06¢5 031
1
