MIDDLE COWL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

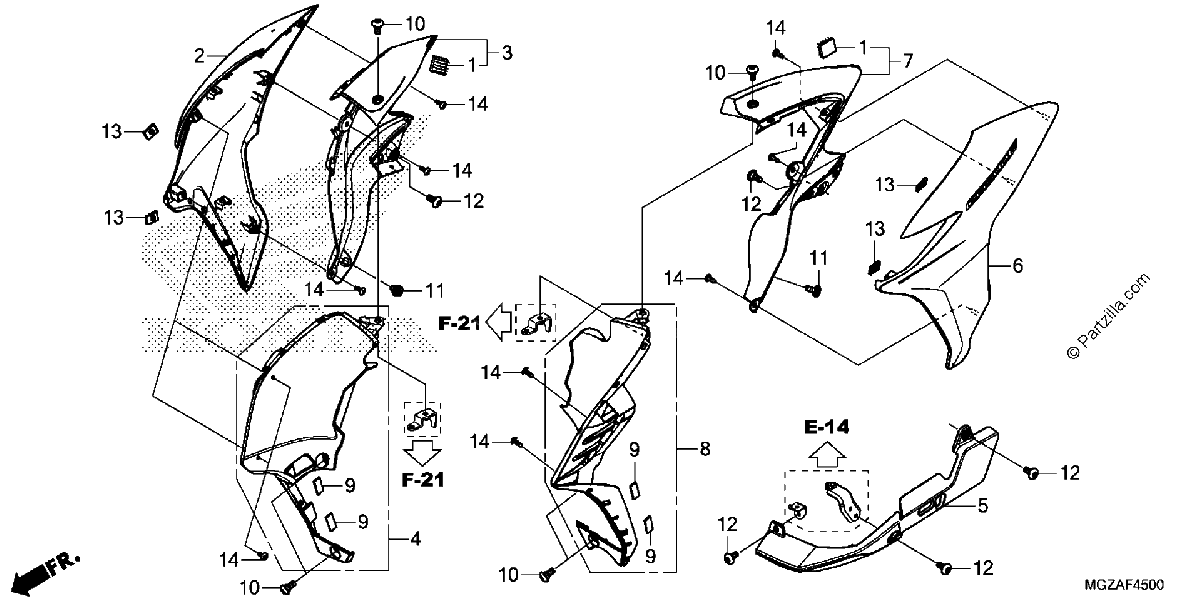

Diagrama de MIDDLE COWL

Repuestos

#1
64243-MEW-920
FASTENER B, DUAL LOCK (20X20)
$3.36¢1 679
1
#2
64300-MGZ-D40ZC
COWL SET, Right MIDDLE (TYPE1) (WL)
$133.42¢66 711
1
#3
64305-MGZ-J40
COWL Assembly., Right. (INNER)
$20.29¢10 143
1
#4
64306-MGZ-J40
PANEL Assembly., Right. (INNER)
$40.37¢20 183
1
#5
64320-MGZ-J40
COWL, Left (LOWER)
$18.29¢9 143
1
#6
64400-MGZ-D40ZC
COWL SET, L MIDDLE (TYPE1) (WL)
$133.42¢66 711
1
#7
64405-MGZ-J40
COWL ASSY., L. (INNER)
$56.41¢28 204
1
#8
64406-MGZ-J40
PANEL Assembly., Left (INNER)
$46.92¢23 460
1
#9
84703-KC2-960
CUSHION, NUMBER PLATE
$1.15¢575
1
#10
90115-MGZ-J00
SCREW, SPECIAL (6X14)
$1.26¢633
1
#11
90116-MFL-D20
SCREW, SPECIAL (6X16)
$3.07¢1 535
1
#12
90133-KPP-T00
SCREW, PAN (6X14)
$1.51¢753
1
#13
90302-KWW-A00
NUT, SPRING (4MM)
$1.15¢575
1
#14
93903-24380
SCREW, TAPPING (4X12)
$1.07¢535
1
