COUNTERSHAFT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

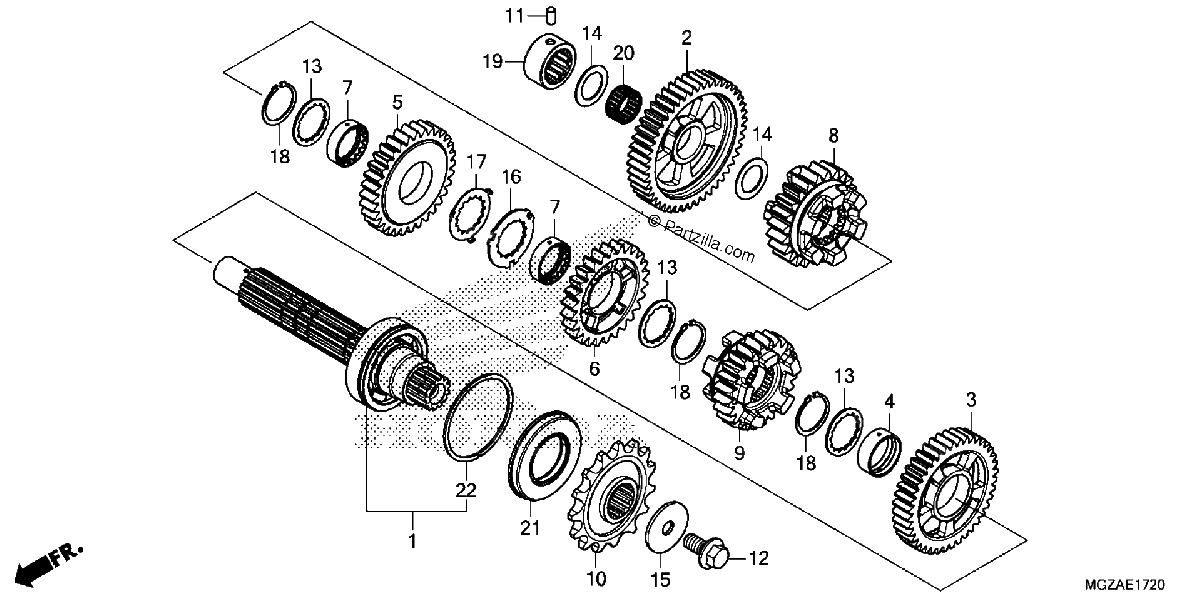

Diagrama de COUNTERSHAFT

Repuestos

#1
23220-MGZ-J01
COUNTERSHAFT
$168.81¢84 406
1
#2
23421-MGZ-J00
GEAR, COUNTERSHAFT FIRST (46T)
$65.09¢32 544
1
#3
23441-MGZ-J00
GEAR, COUNTERSHAFT SECOND (40T)
$69.01¢34 506
1
#4
23442-ML7-000
COLLAR (28MM)
$35.96¢17 981
1
#5
23461-MGZ-J00
GEAR, COUNTERSHAFT THIRD (32T)
$62.95¢31 475
1
#6
23481-MGZ-J00
GEAR, COUNTERSHAFT FOURTH (26T)
$57.15¢28 575
1
#7
23482-MV9-670
COLLAR, SPLINE (28X31X9)
$24.69¢12 344
1
#8
23501-MGZ-J00
GEAR, COUNTERSHAFT FIFTH (23T)
$88.79¢44 394
1
#9
23521-MGZ-J00
GEAR, COUNTERSHAFT SIXTH (24T)
$83.77¢41 887
1
#10
23801-MGZ-J00
SPROCKET, DRIVE (15T)
$22.00¢11 000
1
#11
24261-283-000
PIN, GEARSHIFT FORK GUIDE
$5.11¢2 556
1
#12
90037-422-003
BOLT, SPECIAL (10MM)
$8.89¢4 444
1
#13
90452-MR7-000
WASHER, SPLINE (28X34X1.5)
$8.15¢4 075
1
#14
90454-428-000
WASHER, THRUST (20MM)
$3.43¢1 713
1
#15
90459-438-000
WASHER (10.2MM)
$7.08¢3 538
1
#16
90463-MR7-000
WASHER, SPLINE (28MM)
$13.61¢6 806
1
#17
90464-MR7-000
WASHER, LOCK (28MM)
$13.61¢6 806
1
#18
90602-MM5-000
CIRCLIP (28MM)
$4.54¢2 269
1
#18
90603-MN4-000
CIRCLIP (28MM)
$4.54¢2 269
1
#19
91023-MM4-003
BEARING, NEEDLE (20X34X16.8) (NTN)
$42.99¢21 494
1
#20
91026-MGZ-J00
BEARING, NEEDLE (20X24X11)
$16.31¢8 156
1
#21
91207-KT8-003
OIL SEAL (34X62X8)
$14.84¢7 419
1
#22
94560-62200
RING, SNAP (62MM)
$4.26¢2 131
1
